Shift Control: Inspection

Check if the width of shift fork hook (sliding area with coupling sleeve) is within allowable specification below.

SHIFT FORK HOOK DIMENSION

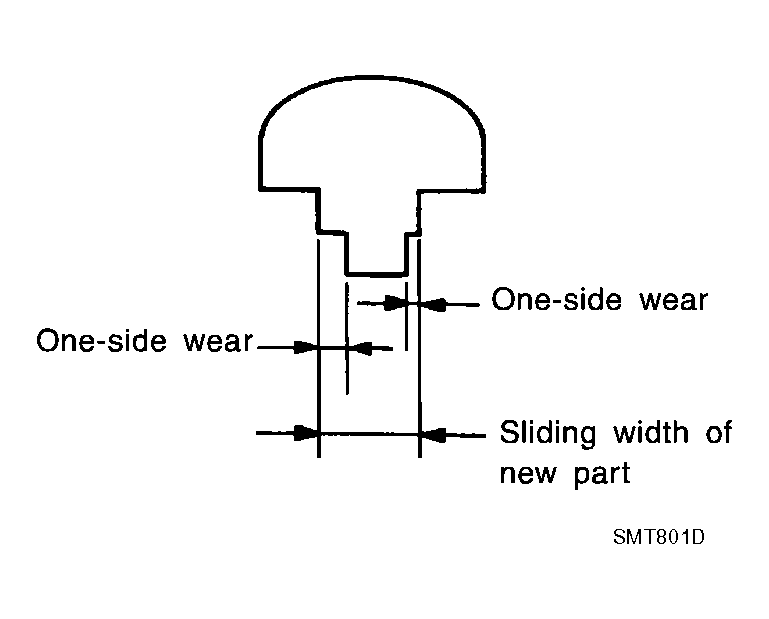

Fig 1: Checking Width Of Shift Fork Hook

Courtesy of NISSAN MOTOR CO., U.S.A.

Check if shift check groove of fork rod or 5th & reverse check groove is worn, or has any other abnormalities.

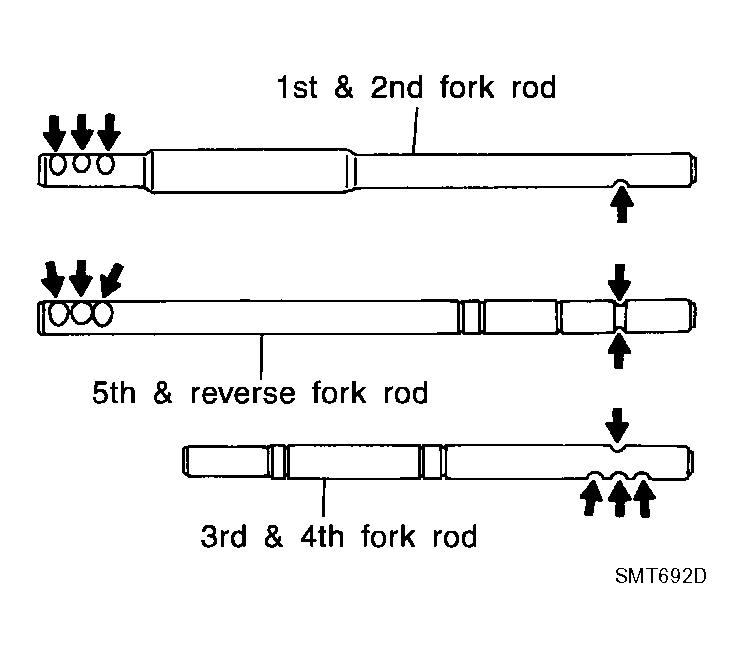

Fig 2: Checking Shift Check Groove Of Fork Rod Or 5th & Reverse Check Groove

Courtesy of NISSAN MOTOR CO., U.S.A.
