Shift Control Components

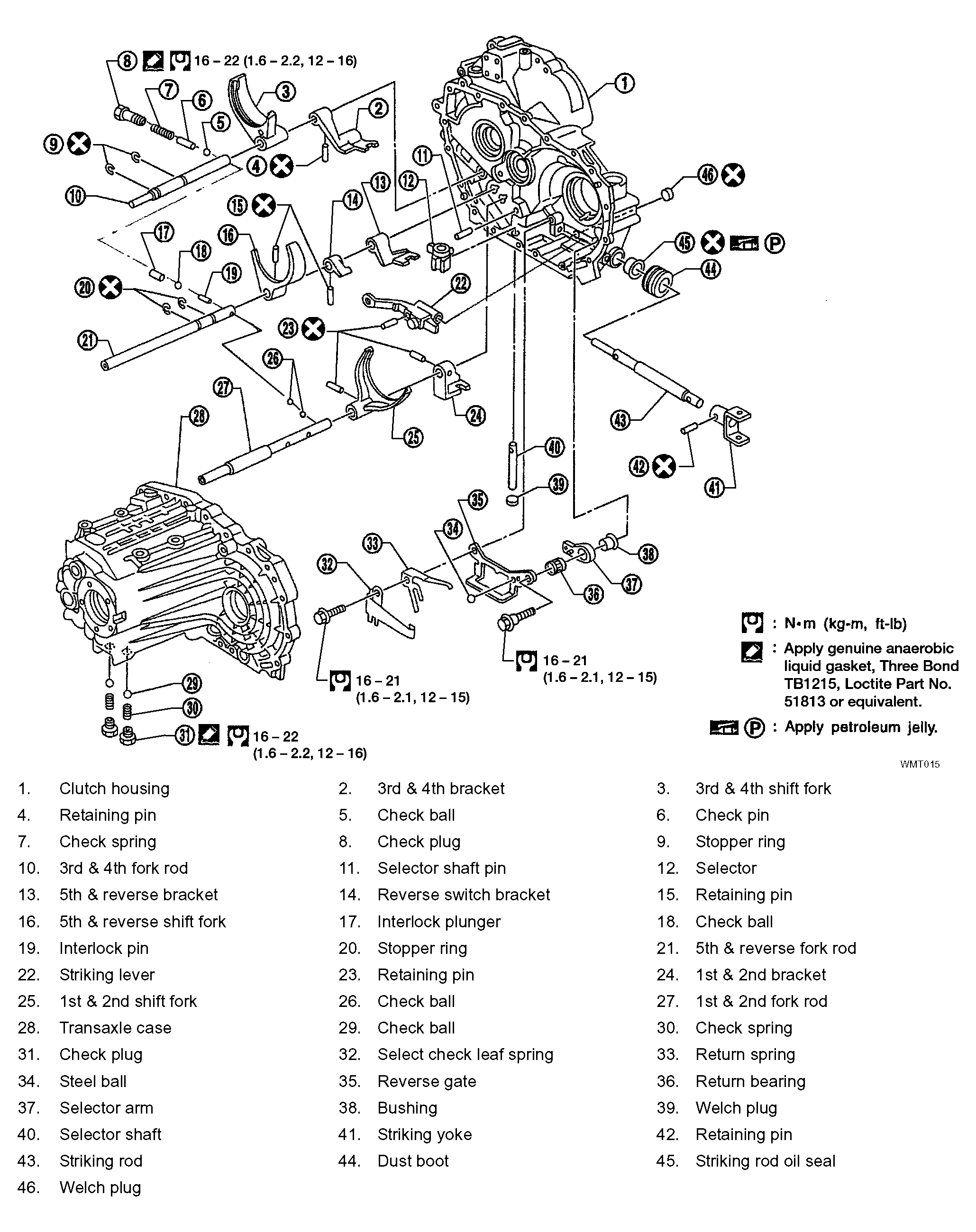

Fig 1: Exploded View Of Shift Control Components With Torque Specifications
G04192452Courtesy of NISSAN MOTOR CO., U.S.A.
