Cable Adjustment

NOTE: After installation of the select cable, the cable must be adjusted for proper operation. This adjustment is performed before installing the interior console and shift boot.

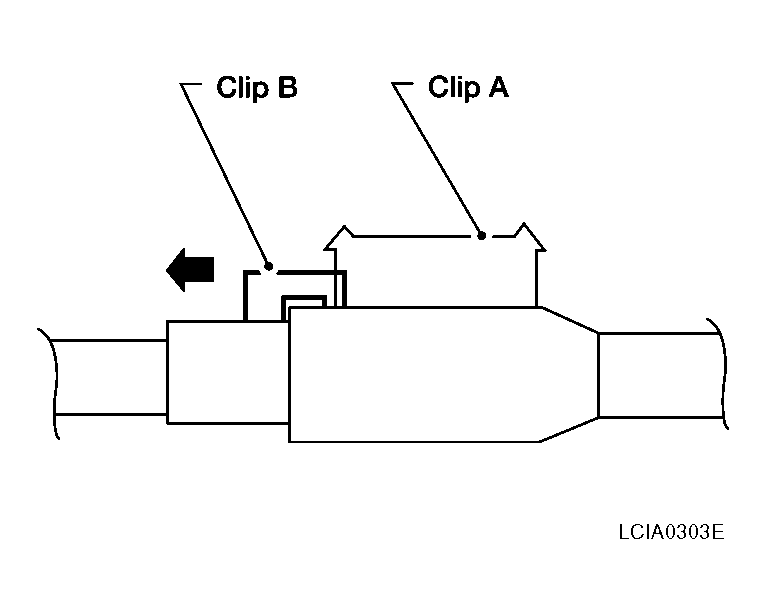

Slide clip "B" from under clip "A" as shown.

Fig 1: Sliding Clip B From Under Clip A
Courtesy of NISSAN MOTOR CO., U.S.A.
Shift the control lever to the neutral position.
CAUTION: Do not move the control lever when adjusting the cables.

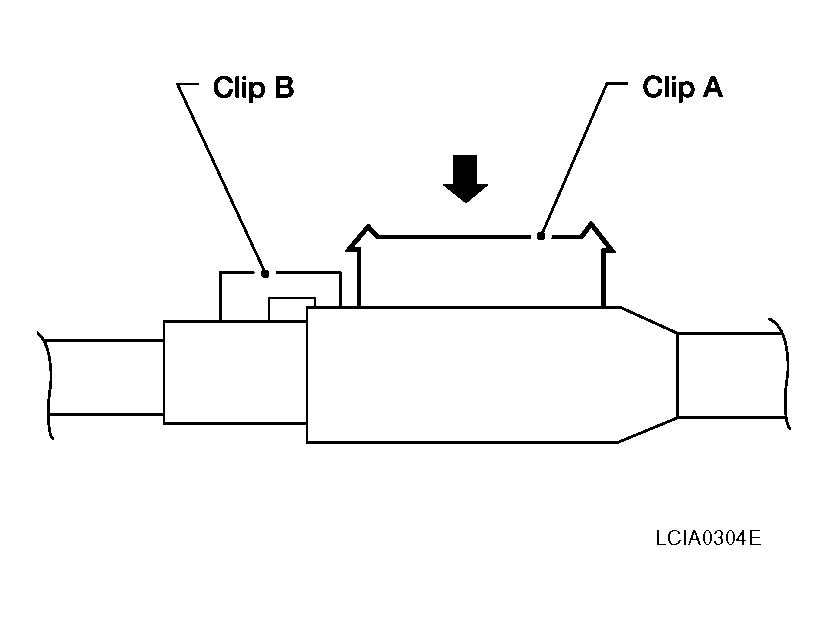

Push clip "A" into the cable end case until it snaps into place as shown.

Fig 2: Pushing Clip A Into Cable End Case
Courtesy of NISSAN MOTOR CO., U.S.A.

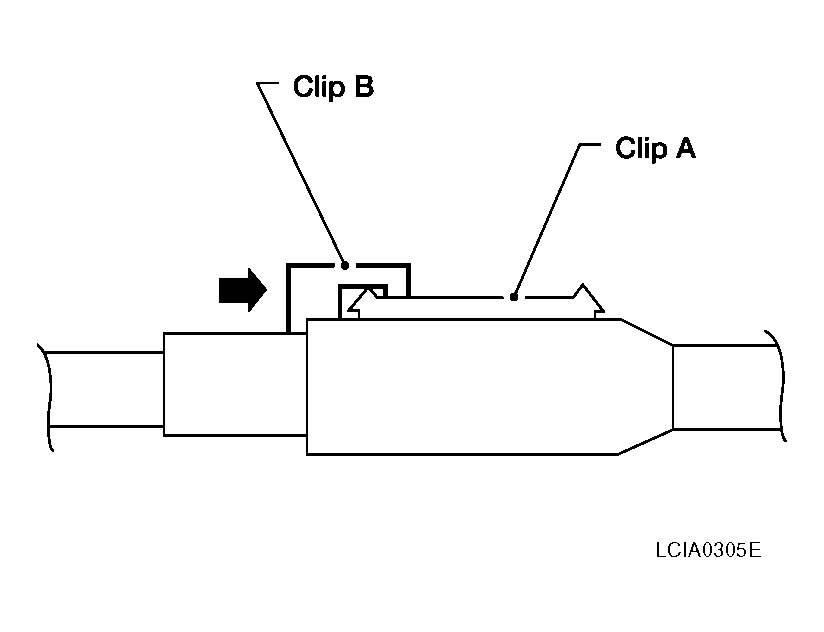

Slide clip "B" back over clip "A" until it snaps into place and holds clip "A" in place as shown.

Fig 3: Sliding Clip B Back Over Clip A
Courtesy of NISSAN MOTOR CO., U.S.A.
