Back-Up Lamp Switch

BACK-UP LAMP SWITCH CONTINUITY SPECIFICATIONS

Gear position Continuity
Reverse Yes
Except reverse No

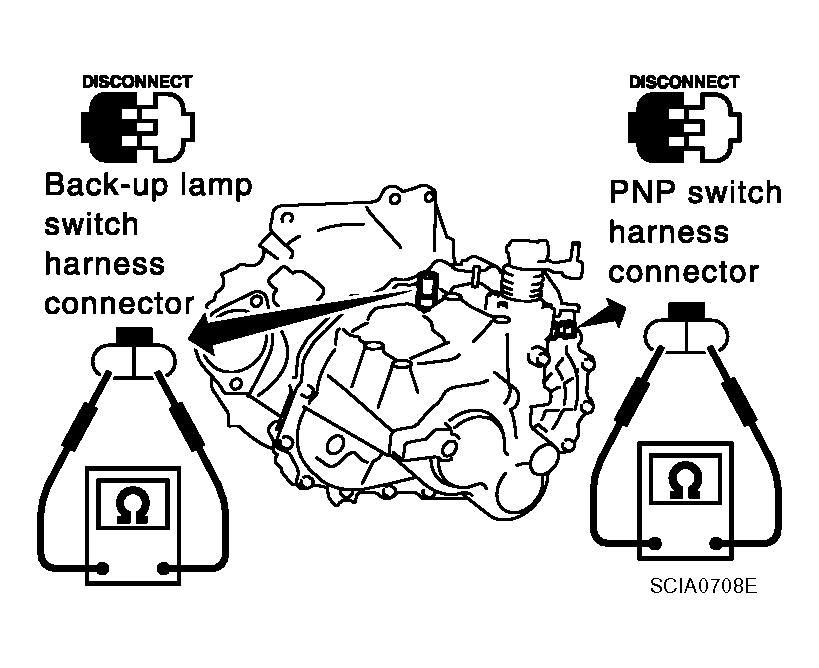

Fig 1: Measuring Continuity Between Back-Up Lamp Switch Connector Terminal
G04192634Courtesy of NISSAN MOTOR CO., U.S.A.
