General Specifications: Transaxle
GENERAL SPECIFICATIONS
| Engine | QR25DE | ||
| Transaxle model | RS6F51H | ||
| Model code number | 7Y076 | ||
| Number of speed | 6 | ||
| Synchromesh type | Warner | ||

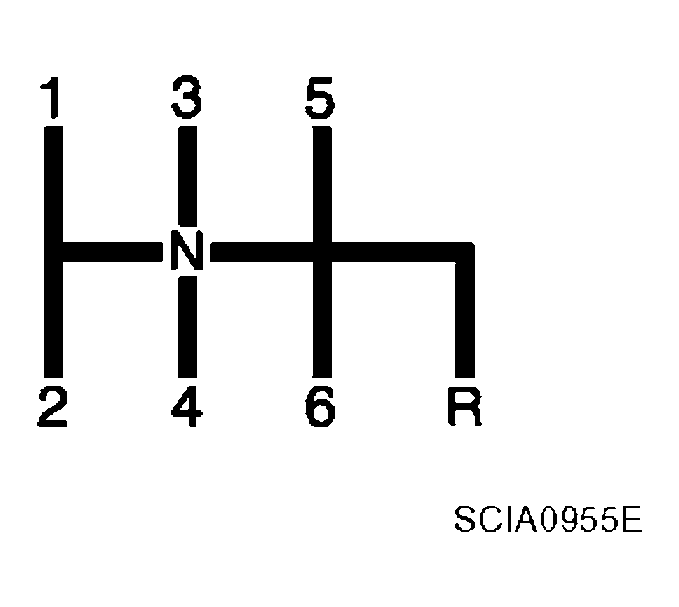

| Shift pattern | |||
| Gear ratio | 1st | 3.153 | |
| 2nd | 1.944 | ||
| 3rd | 1.392 | ||
| 4th | 1.055 | ||
| 5th | 0.809 | ||
| 6th | 0.630 | ||
| Reverse | 3.002 | ||
| Number of teeth | Input gear | 1st | 13 |
| 2nd | 18 | ||
| 3rd | 31 | ||
| 4th | 36 | ||
| 5th | 42 | ||
| 6th | 46 | ||
| Reverse | 13 | ||
| Main gear | 1st | 41 | |
| 2nd | 35 | ||
| 3rd | 39 | ||
| 4th | 38 | ||
| 5th | 34 | ||
| 6th | 29 | ||
| Reverse | 38 | ||
| Reverse idler gear | Front | 37 | |
| Rear | 38 | ||
| Oil capacity l (US qt, Imp qt) | 2.2 (2 3/8, 2) | ||
| Remarks | Reverse synchronizer | Installed | |
| Double baulk ring type synchronizer | 1st synchronizer | ||
| Triple baulk ring type synchronizer | 2nd synchronizer | ||
