Shift Control: Inspection: Notes

Check the contact surfaces and sliding area for wear, damage, or bending as shown. If necessary, replace the parts.

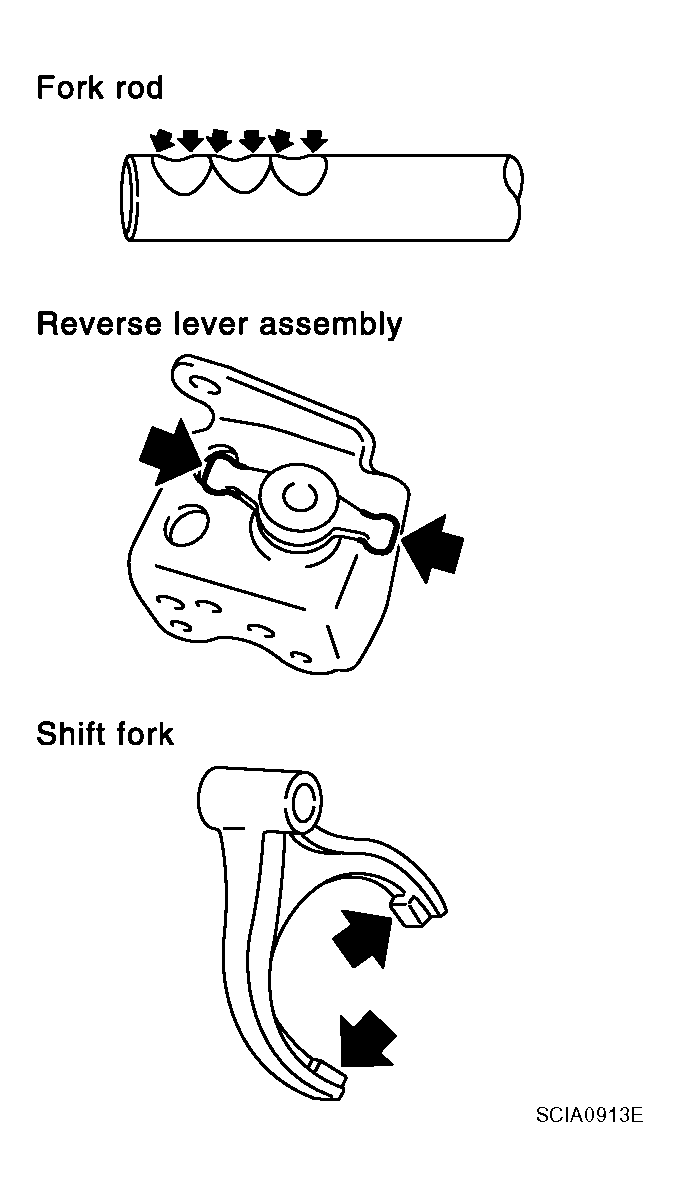

Fig 1: Checking Contact Surfaces And Sliding Area For Wear, Damage Or Bending

Courtesy of NISSAN MOTOR CO., U.S.A.
