Body (Alignment): Alignment: Notes

All dimensions indicated in figures are actual ones.
When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself to make sure there is no free play.
When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
Measurements should be taken at the center of the mounting holes.
An asterisk (*) indicates the measuring point value is the same on both sides.
The coordinates of the measurement points are the distances measured from the standard line of "X", "Y" and "Z".

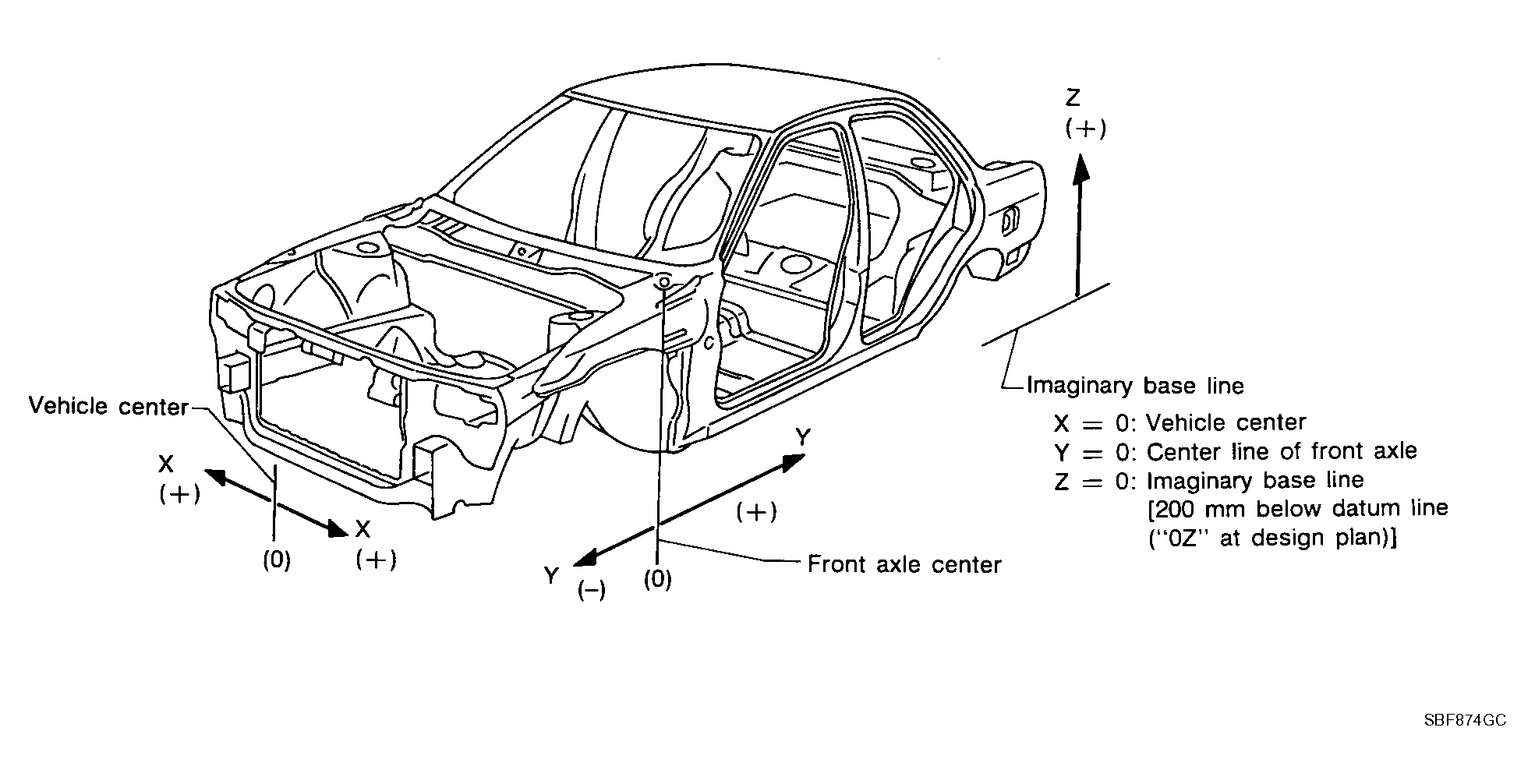

Fig 1: Identifying Body (Alignment) Dimensions

Courtesy of NISSAN MOTOR CO., U.S.A.
