Consult-II Inspection Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. Turn the ignition switch "OFF".
  2. Connect "CONSULT-II" to the data link connector.
    Fig 1: Locating Data Link Connector
    G04194908Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch "ON".
  4. Touch "START (NISSAN BASED VHCL)".
    Fig 2: Consult-II Display Screen
    G04151184Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "SMART ENTRANCE".
    Fig 3: Consult-II SELECT SYSTEM Display Screen
    G04083859Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Perform each diagnostic item according to "DIAGNOSTIC ITEMS APPLICATION". Refer to "DIAGNOSTIC ITEMS APPLICATION ".

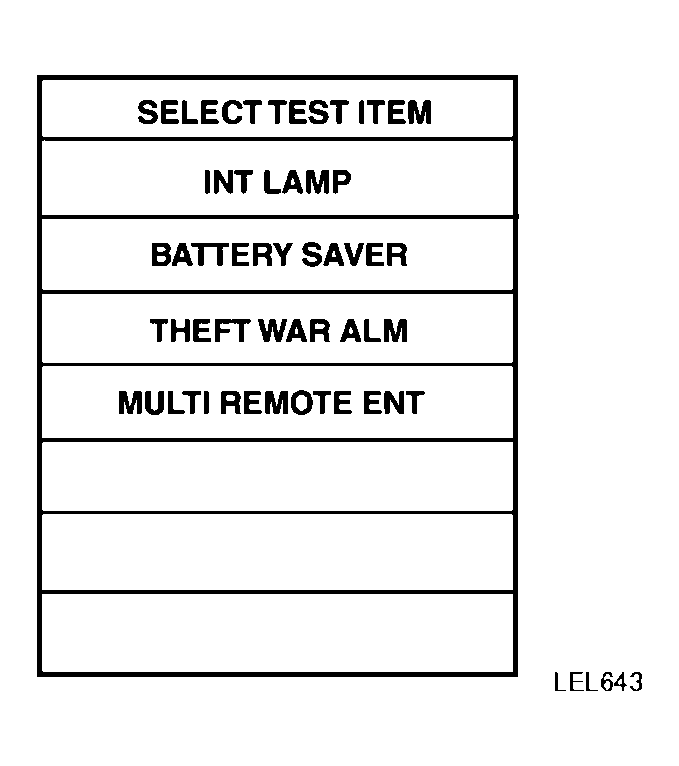

    Fig 4: CONSULT-II Screen Display - SELECT TEST ITEM
    G04195509Courtesy of NISSAN MOTOR CO., U.S.A.
