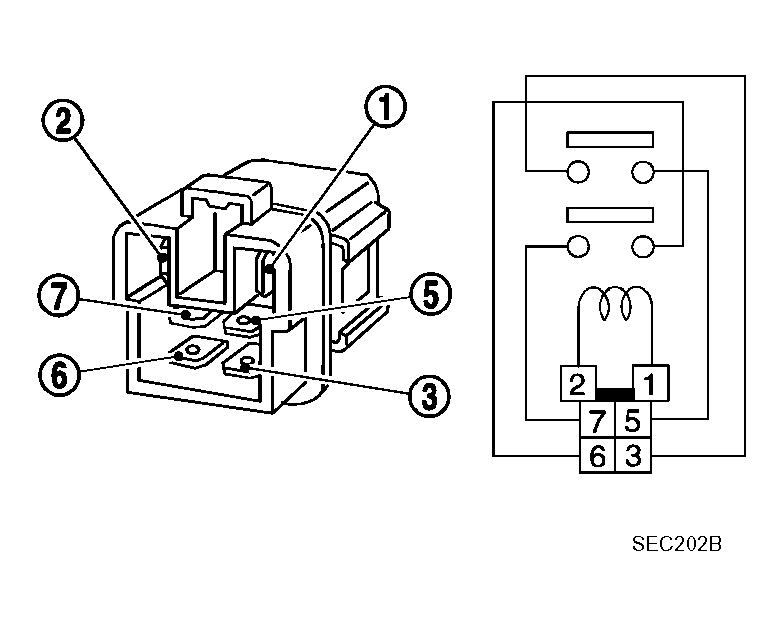

Rear Window Defogger Relay
Check continuity between terminals 3 and 5, 6 and 7.
REAR WINDOW CONDITION CONTINUITY REFERENCE
| Condition |
Continuity |
| 12V direct current supply between terminals 1 and 2 |
Yes |
| No current supply |
No |
Courtesy of NISSAN MOTOR CO., U.S.A.
