Rear Window Defogger Switch

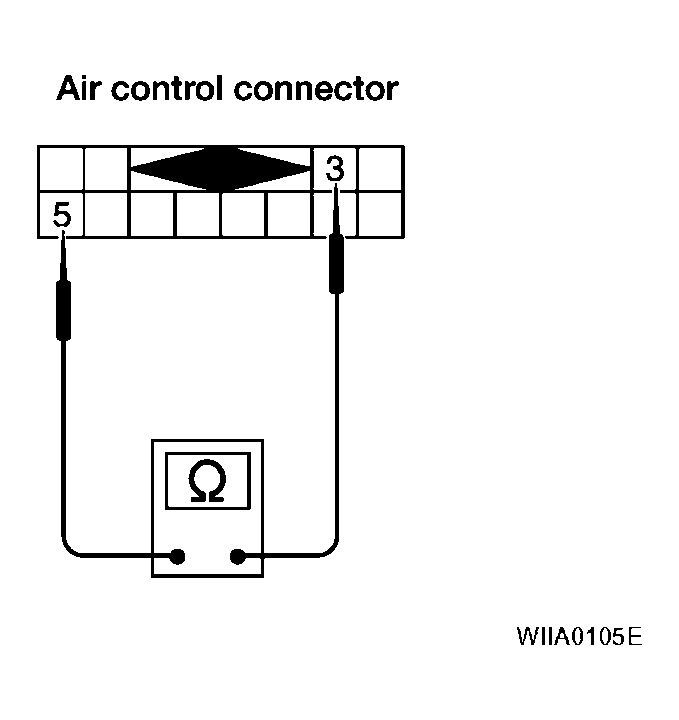

With air control (rear window defogger switch) connector M32 disconnected, check continuity between terminals 3 and 5 when rear window defogger switch is pushed and released.
REAR WINDOW DEFOGGER SWITCH TERMINAL CONTINUITY REFERENCE
| Terminals | Condition | Continuity | |
|---|---|---|---|
| (+) | (-) | Switch pushed | Yes |
| 3 | 5 | Switch released | No |
