Parking Brake Control: Components

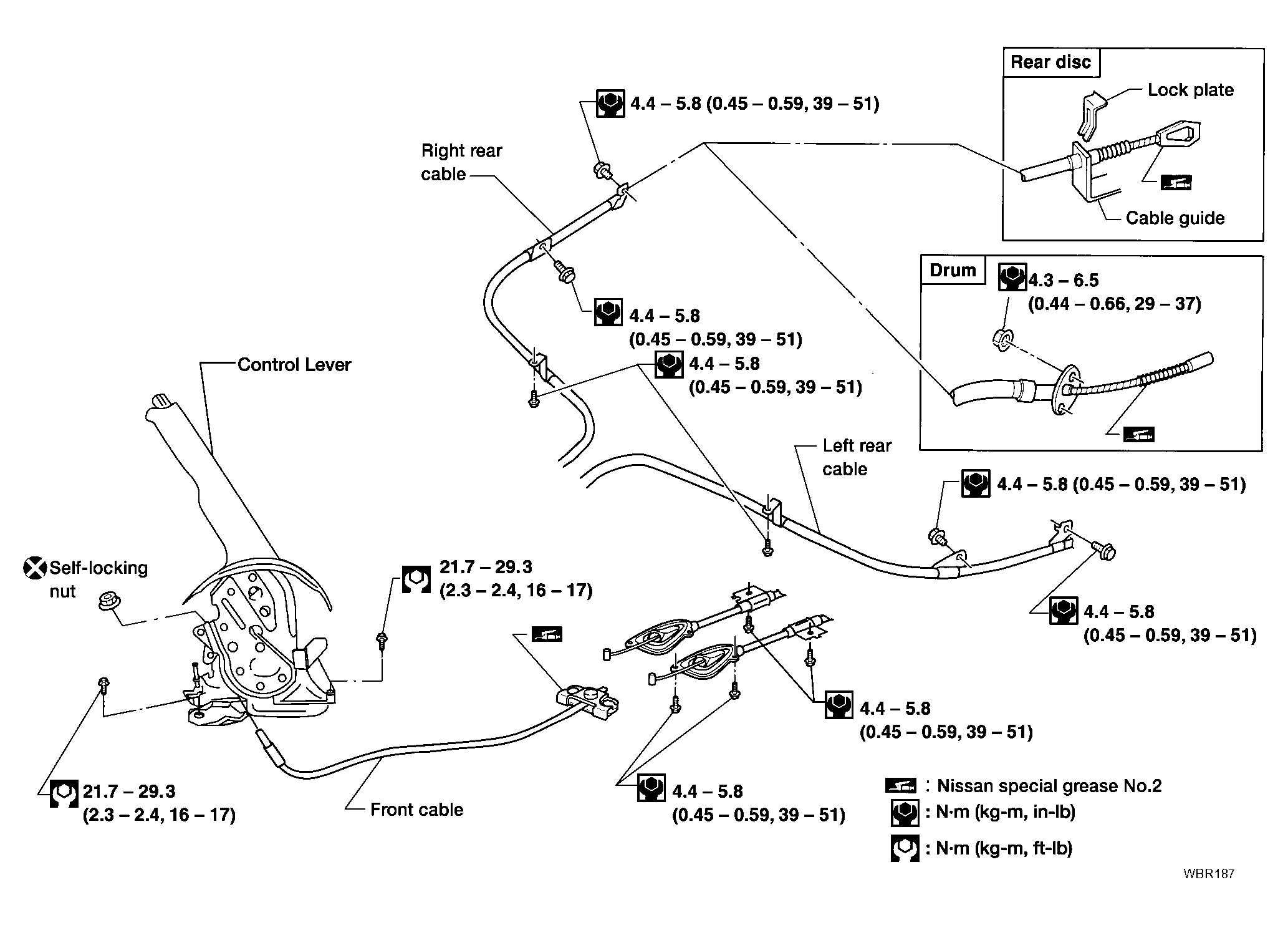

Fig 1: Exploded View Of Parking Brake Control Components With Torque Specifications
G04194662Courtesy of NISSAN MOTOR CO., U.S.A.
