Malfunction code No. 61

ABS motor relay inspection

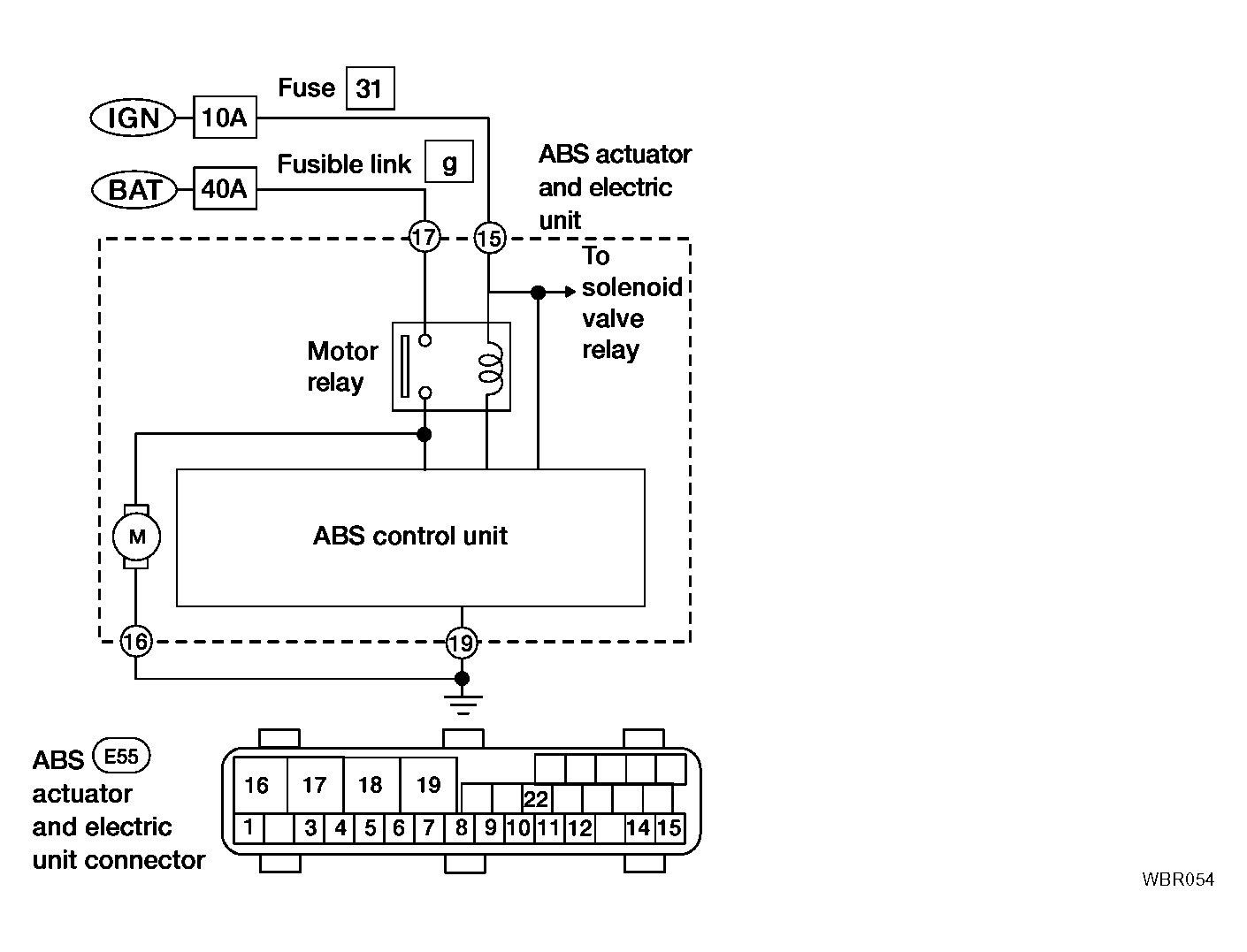

Fig 1: Inspecting ABS Motor Relay

Courtesy of NISSAN MOTOR CO., U.S.A.

: GO TO 2.

Check 40A fusible link g  . For fusible link layout, refer to "POWER SUPPLY ROUTING ".

Is fusible link OK?

YES: GO TO 3.

NO: GO TO 6.

1. Disconnect ABS actuator and electric unit connector. Check terminals for damage or loose connection. Then reconnect connector.
2. Carry out self-diagnosis again.

Does warning lamp activate again?

YES: GO TO 4.

NO: Inspection End.

Refer to "ABS ACTUATOR AND ELECTRIC UNIT GROUND ".

Is ground circuit OK?

YES: GO TO 5.

NO: Repair harness or connector.

1. Disconnect ABS actuator and electric unit connector.
2. Check voltage between ABS actuator and electric unit connector E55 terminal 17 (B/Y) and ground.

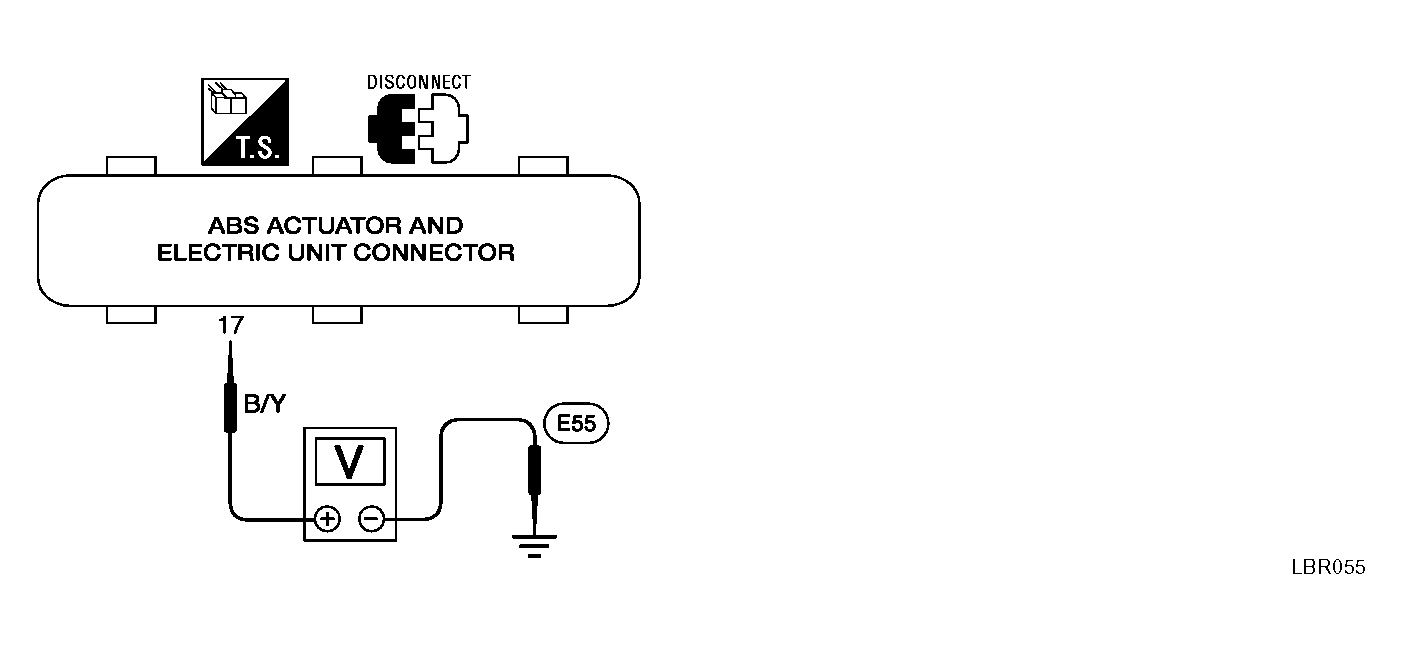

Fig 2: Checking Voltage Between ABS Actuator And Electric Unit Connector E55 Terminal 17 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

Does battery voltage exist?

YES: Replace ABS actuator and electric unit. Refer to "ACTUATOR ".

NO: Check the following.

• Harness connector E55
• Harness for open between ABS actuator and electric unit and fusible link

Replace 40A fusible link g  . For fuse layout, refer to "POWER SUPPLY ROUTING ".

Does the fusible link blow when ignition switch is turned ON?

YES: GO TO 7.

NO: Inspection End.

1. Disconnect battery cable and ABS actuator and electric unit connector.
2. Check continuity between ABS actuator and electric unit connector E55 terminal 17 (B/Y) and ground.

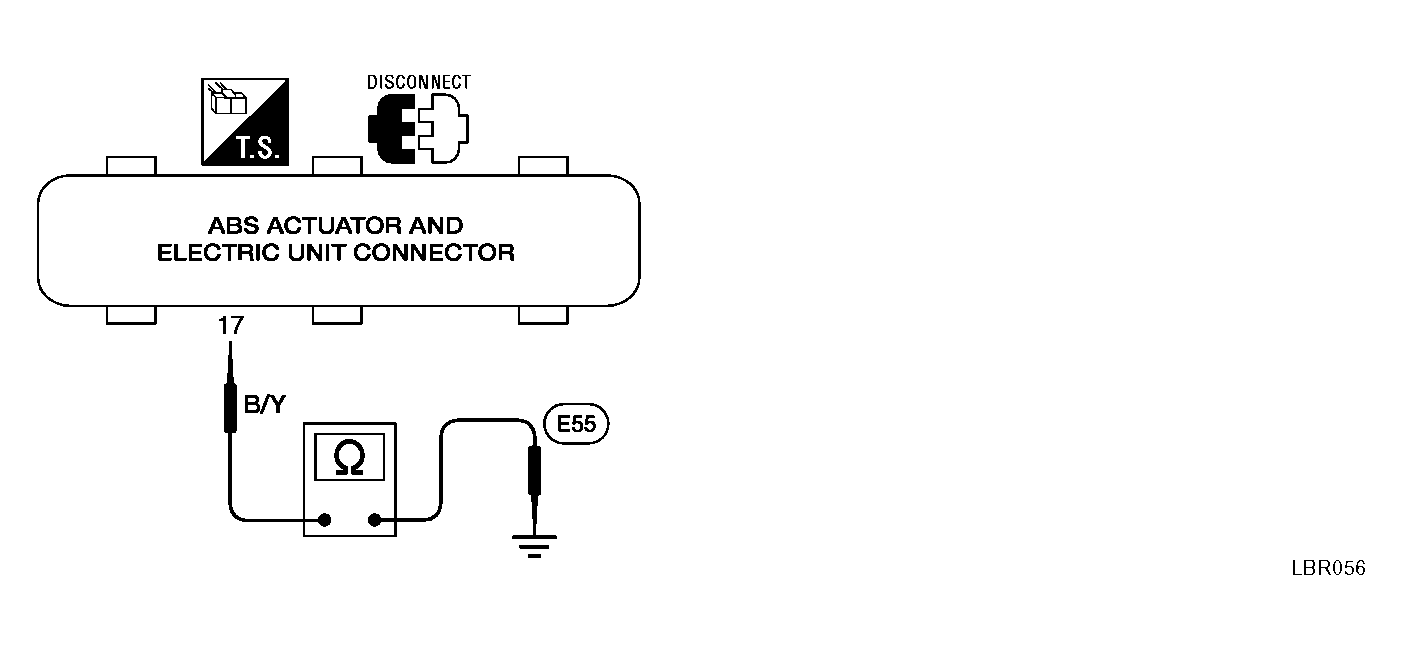

   Fig 3: Checking Continuity Between ABS Actuator And Electric Unit Connector E55 Terminal 17 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Continuity should not exist  .

Does continuity exist?

YES: Check the following.

• Harness connector E55
• Harness for short between ABS actuator and electric unit and fusible link

NO: Replace ABS actuator and electric unit. Refer to "ACTUATOR ".
