Active Test Procedure

When conducting Active test, vehicle must be stationary.
When ABS warning lamp stays on, never conduct Active test.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.
Start engine.
Touch "START (NISSAN BASED VHCL)" on CONSULT-II screen.

Fig 1: Consult-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ABS". If "ABS" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

Fig 2: Consult-II SELECT SYSTEM Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ACTIVE TEST".

Fig 3: Consult-II SELECT DIAG MODE Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select active test item by touching screen.

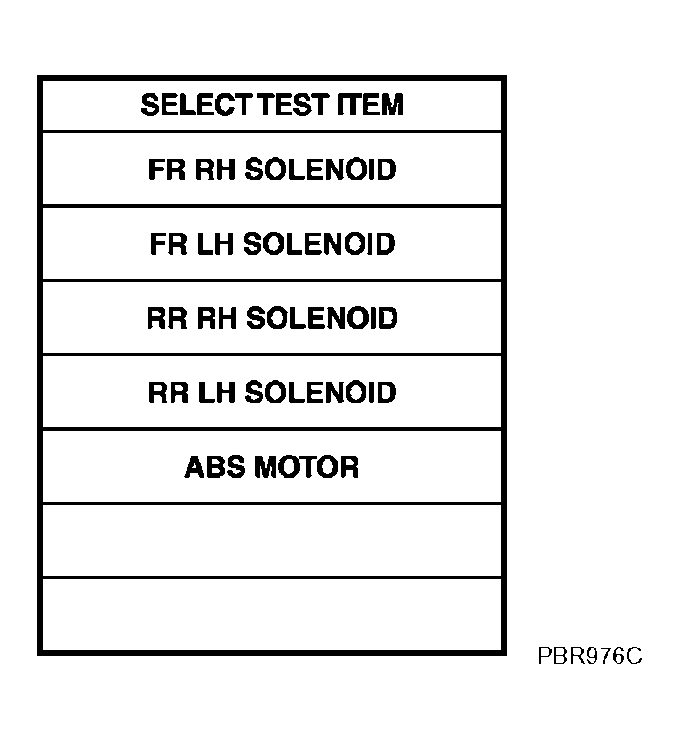

Fig 4: CONSULT II Display - SELECT TEST ITEM
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".
Carry out the active test by touching screen key.

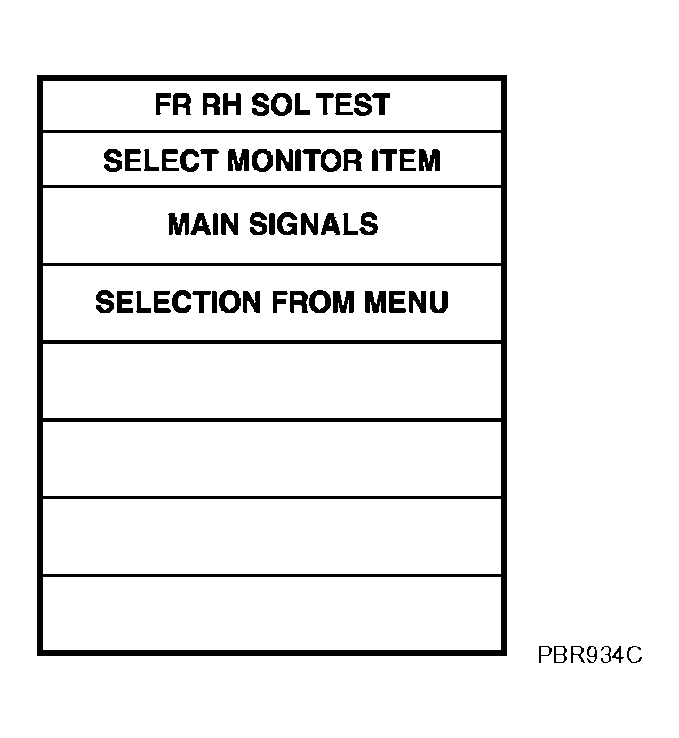

Fig 5: CONSULT-II Display - FR RH SOL TEST
Courtesy of NISSAN MOTOR CO., U.S.A.
