Self-Diagnosis Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.
  3. Start engine.
  4. Drive vehicle over 30 km/h (19 MPH) for at least one minute.
    Fig 1: Locating Data Link Connector
    G04194908Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Stop vehicle with engine running and touch "START (NISSAN BASED VHCL)" on CONSULT-II screen.
    Fig 2: Consult-II Display Screen
    G04151184Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "ABS". If "ABS" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".
    Fig 3: Consult-II SELECT SYSTEM Display Screen
    G04083859Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "SELF-DIAG RESULTS".
    • The screen shows the detected malfunction and how many times the ignition switch has been turned ON since the malfunction.
  8. Make the necessary repairs following the diagnostic procedures.
    Fig 4: Consult-II SELECT DIAG MODE Display Screen
    G04083861Courtesy of NISSAN MOTOR CO., U.S.A.
  9. After the malfunctions are repaired, erase the self-diagnostic results stored in the control unit by touching "ERASE".
  10. Check warning lamp for deactivation after driving vehicle over 30 km/h (19 MPH) for at least one minute.
  11. Test the ABS in a safe area to verify that it functions properly.

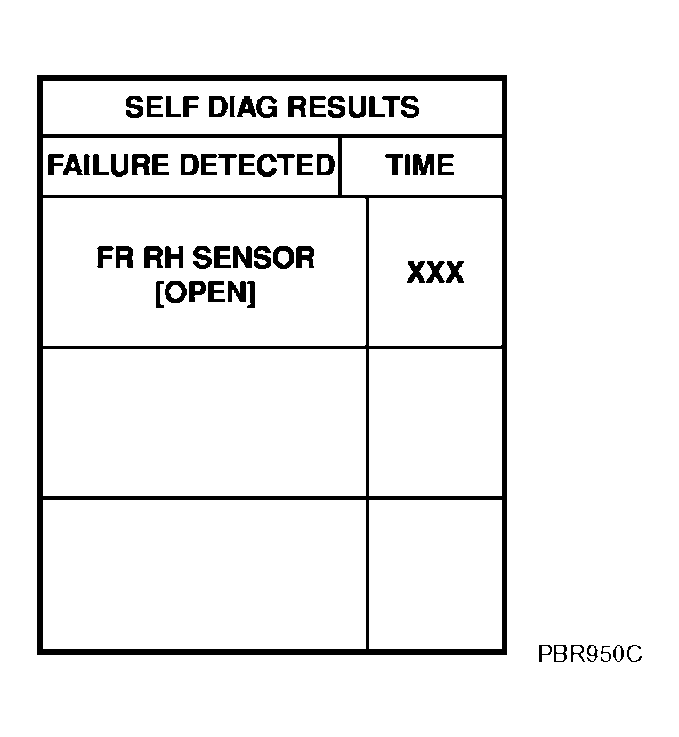

    Fig 5: CONSULT-II Display - SELF-DIAG RESULTS
    G04194688Courtesy of NISSAN MOTOR CO., U.S.A.
