Rear Wheel Sensor (Rear Disc)

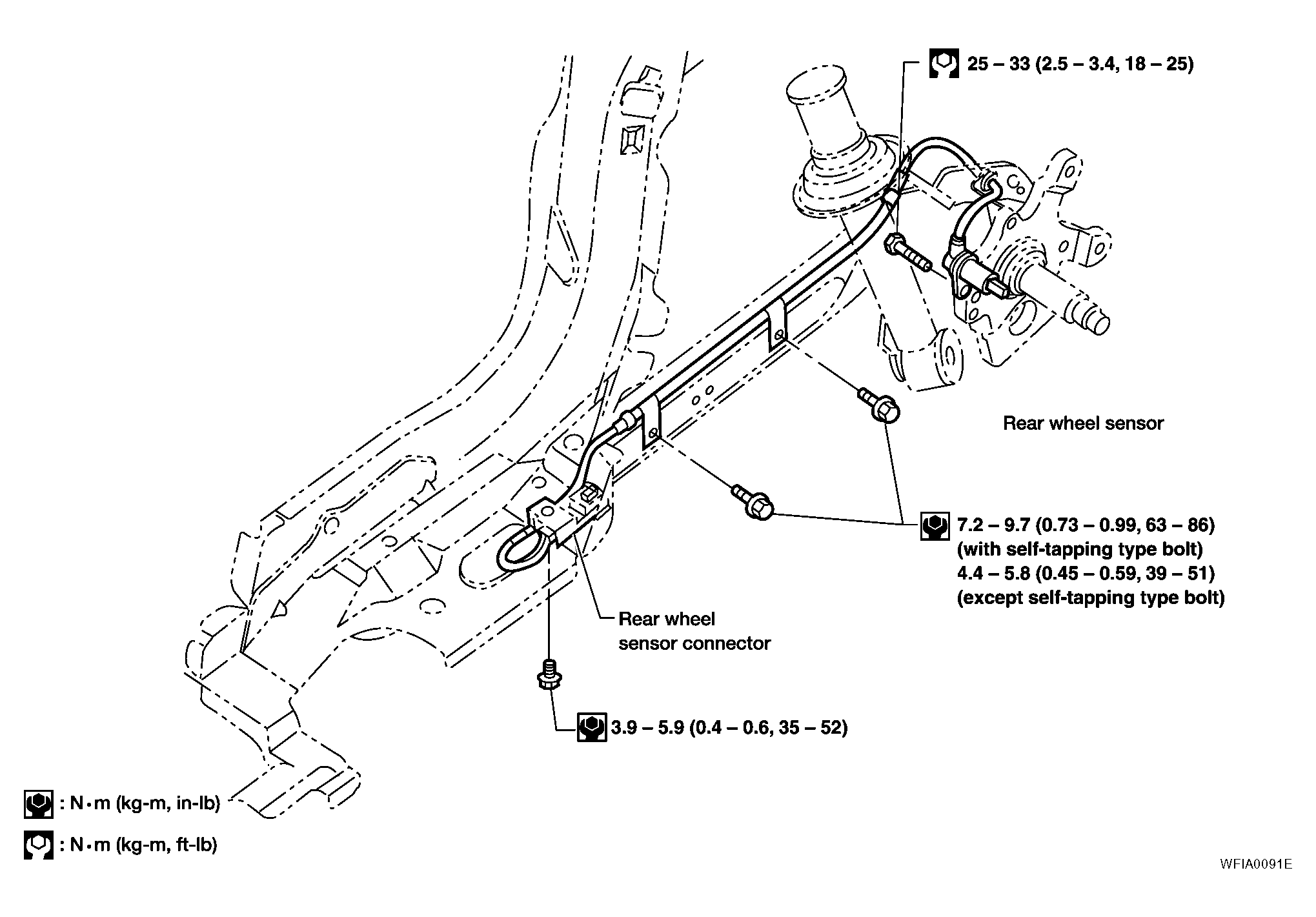

Fig 1: Identifying Rear Wheel Sensor (Rear Disc) With Torque Specifications
G04194732Courtesy of NISSAN MOTOR CO., U.S.A.
