Starting & Charging System: Generator: Construction

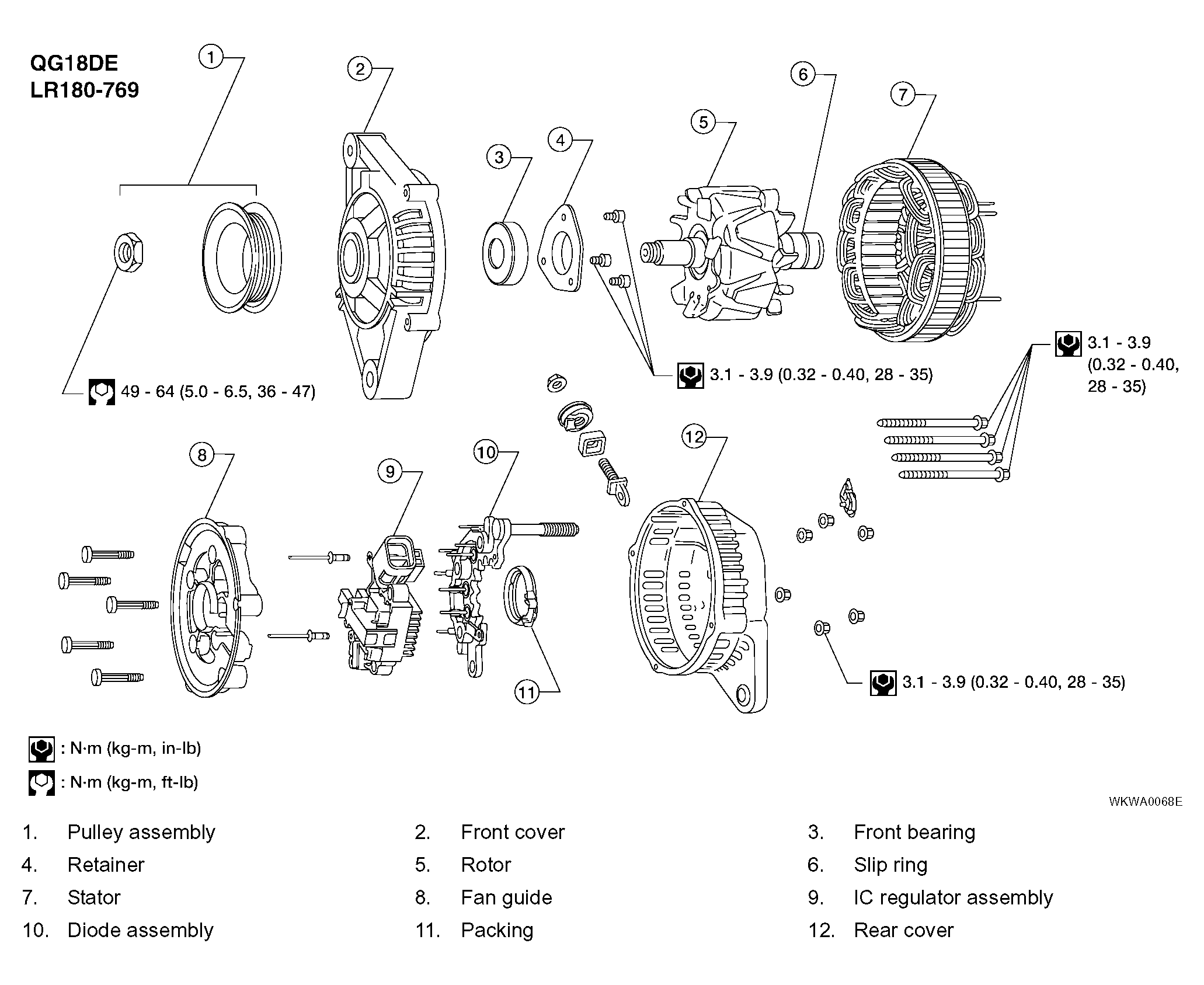

Fig 1: Generator Replacement Components With Torque Specifications (QG18DE)

Courtesy of NISSAN MOTOR CO., U.S.A.

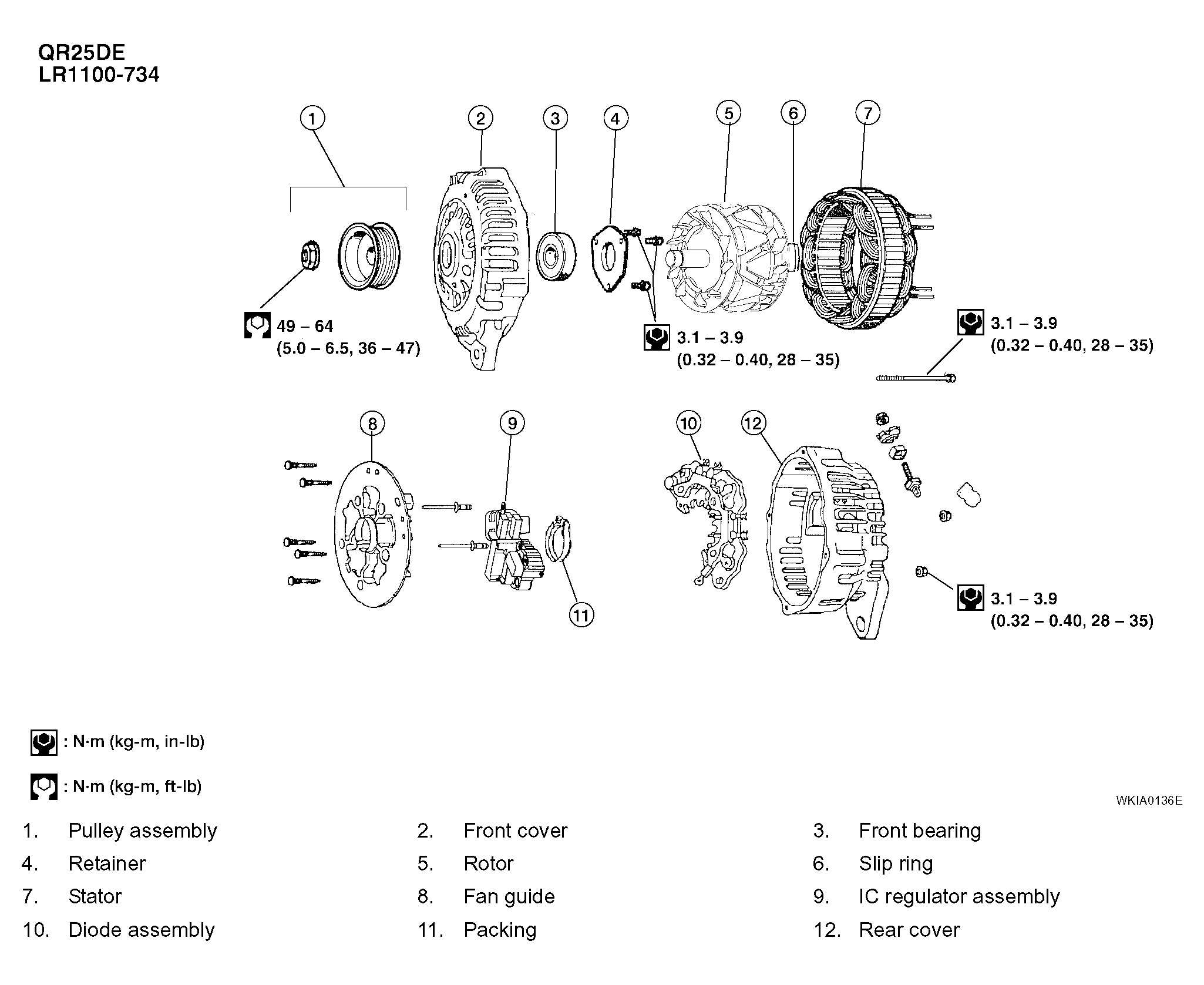

Fig 2: Generator Replacement Components With Torque Specifications (QR25DE)

Courtesy of NISSAN MOTOR CO., U.S.A.
