Starting & Charging System: Starter: Construction

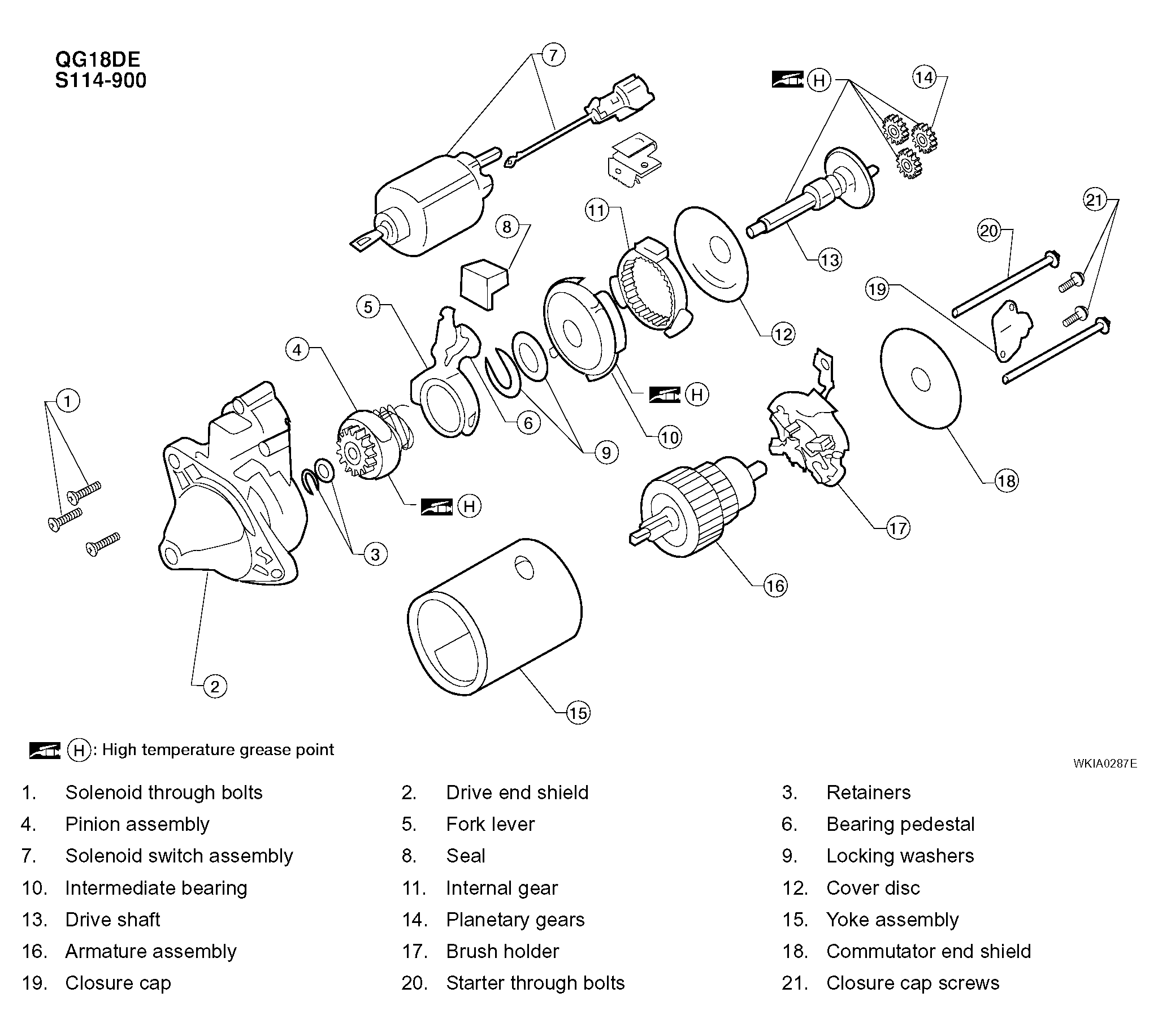

Fig 1: Identifying Starting System Components (QG18DE)

Courtesy of NISSAN MOTOR CO., U.S.A.

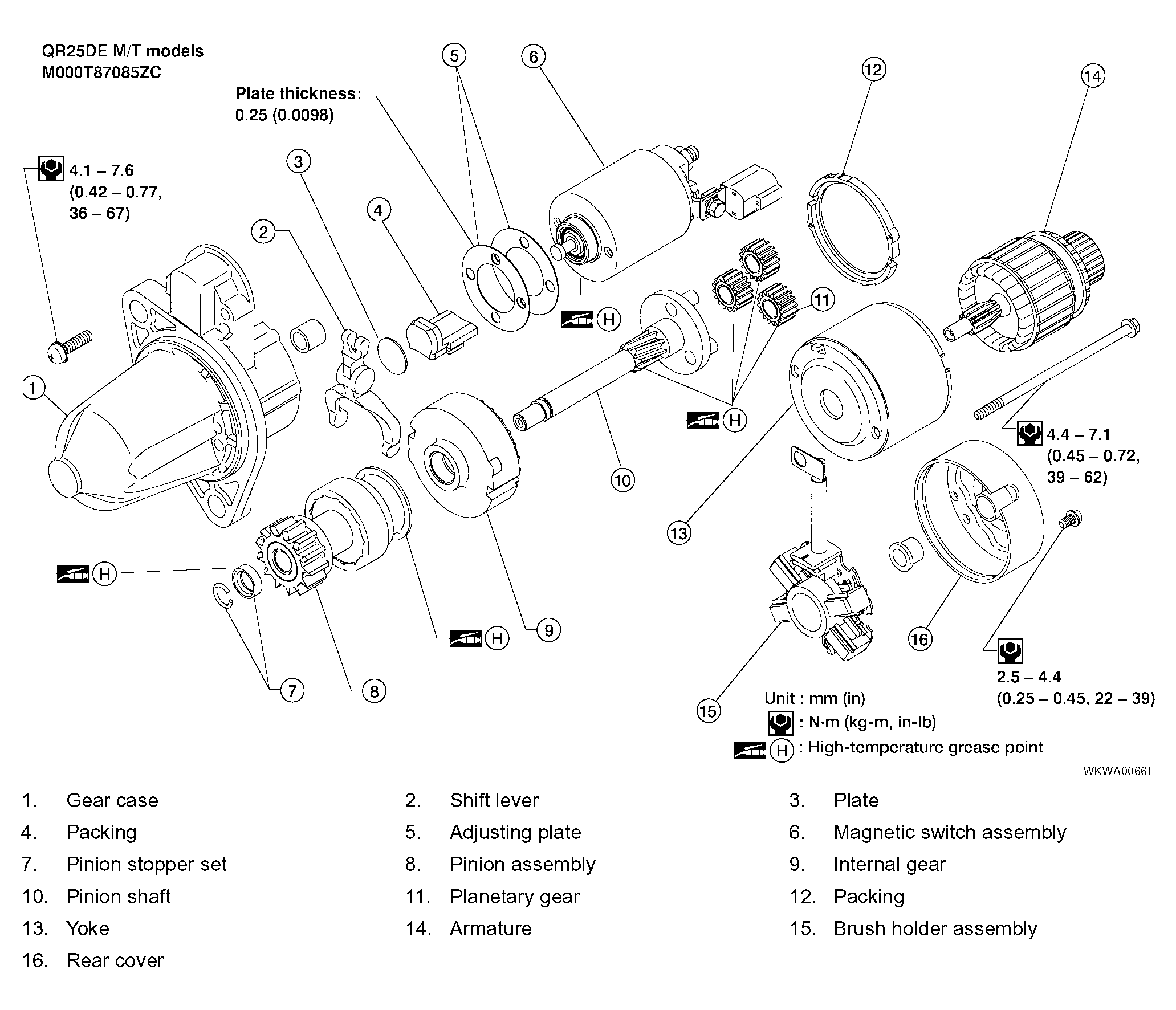

Fig 2: Starting System Replacement Components With Torque Specifications (QR25DE M/T Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

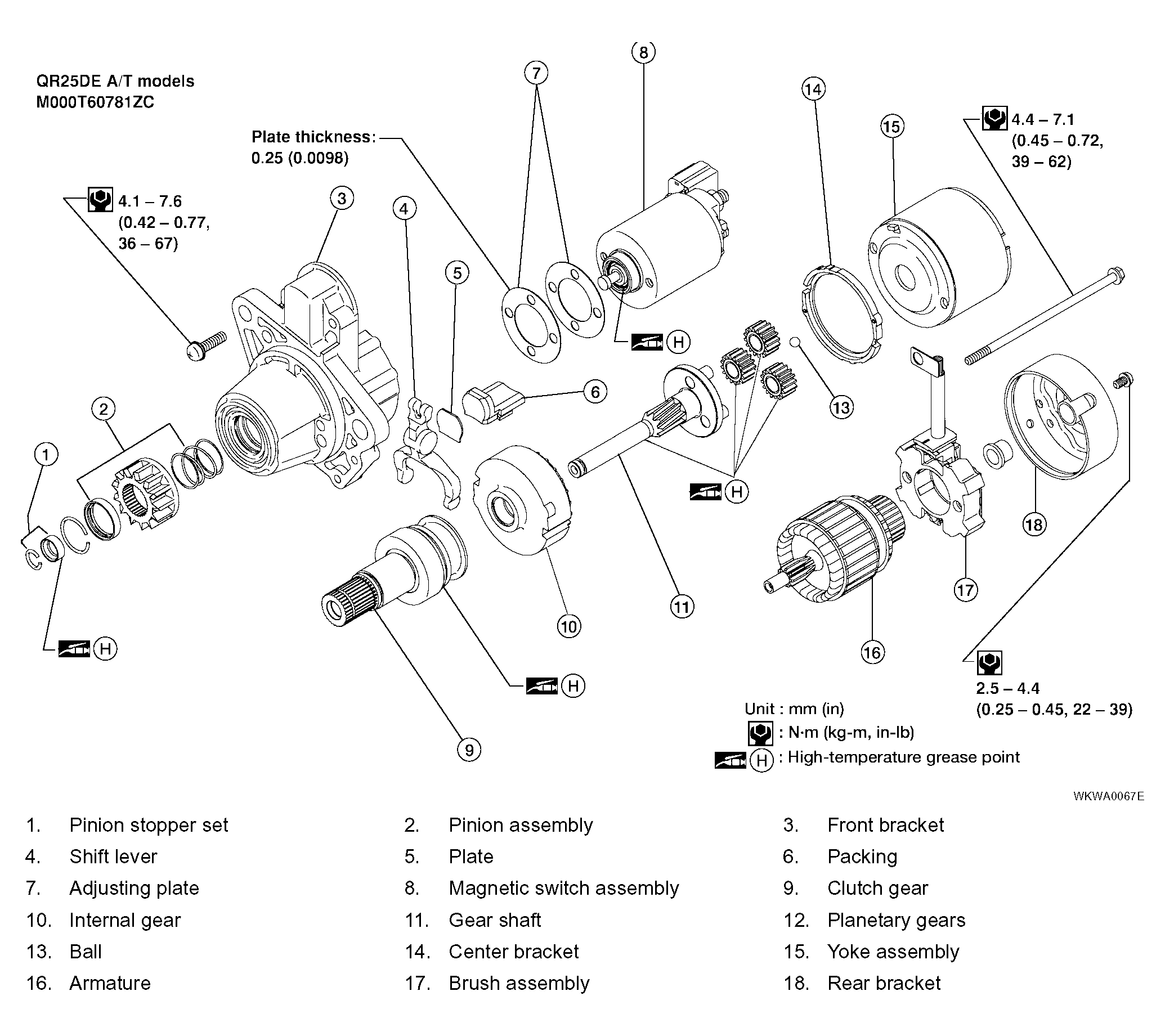

Fig 3: Starting System Replacement Components With Torque Specifications (QR25DE A/T Models)

Courtesy of NISSAN MOTOR CO., U.S.A.
