Fuel Injector: Wiring Diagram

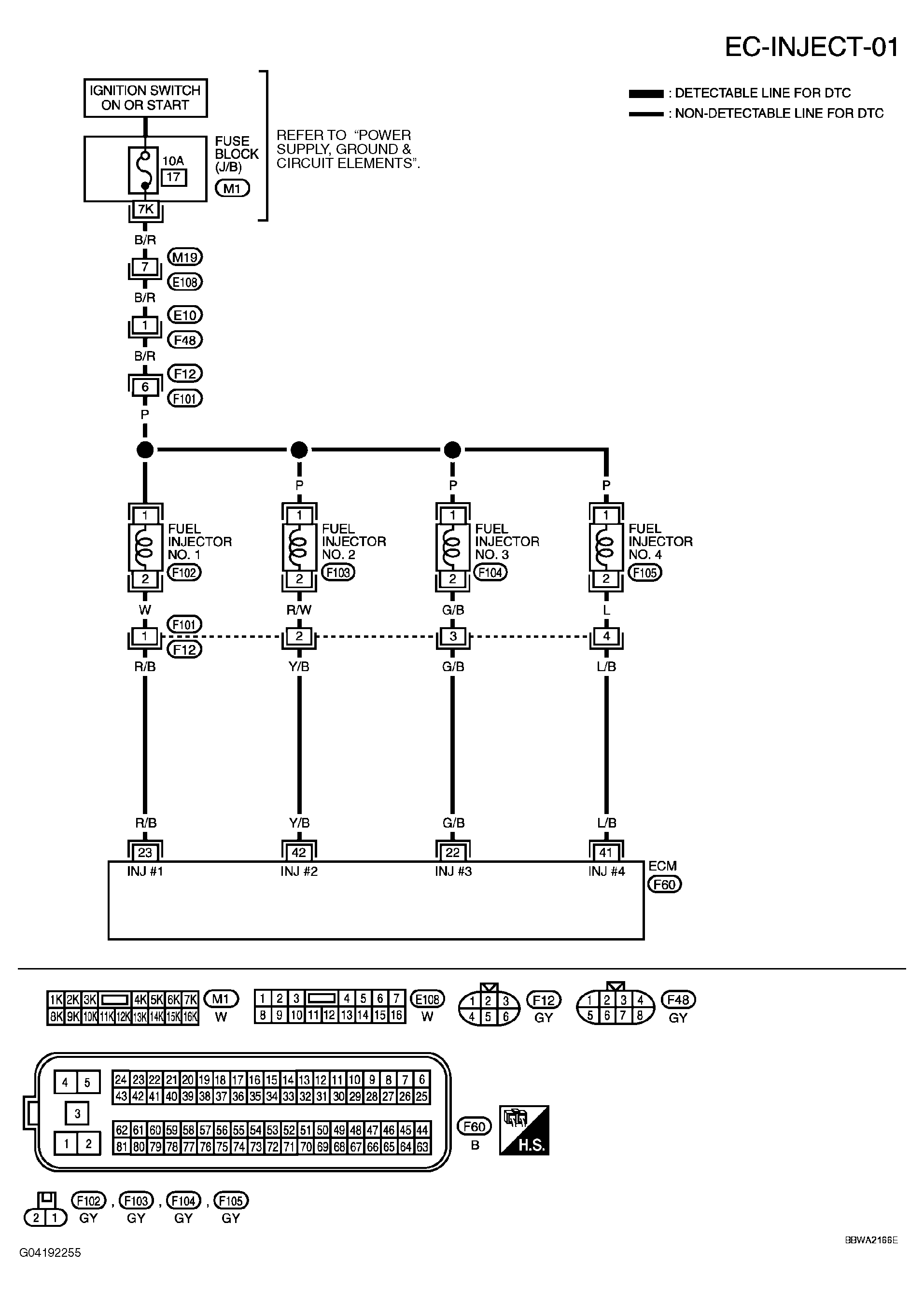

Fig 1: Identifying Wiring Diagram (EC-INJECT-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

WIRE COLOR AND TERMINAL NO. DESCRIPTION

TERMINAL NO.

WIRE COLOR

ITEM

CONDITION

DATA (DC Voltage)

22
23
41
42

G/B
R/B
L/B
Y/B

Fuel injector No. 3
Fuel injector No. 1
Fuel injector No. 4
Fuel injector No. 2

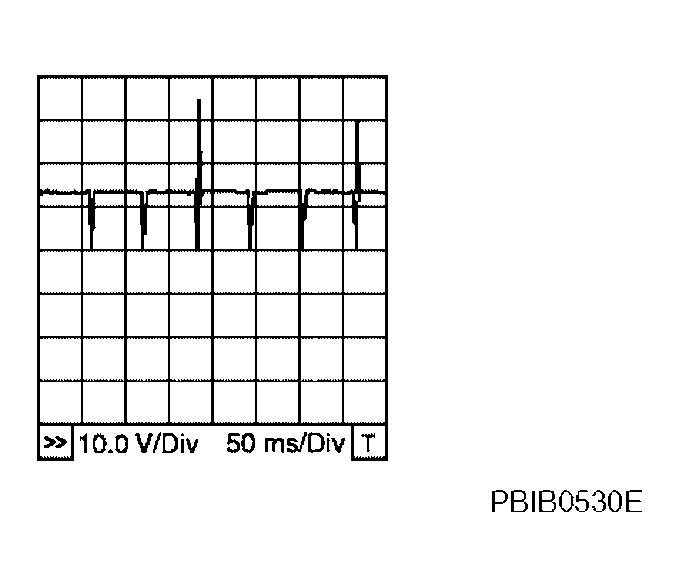

[Engine is running]

Warm-up condition
Idle speed

BATTERY VOLTAGE (11 - 14V)⁽¹⁾

Courtesy of NISSAN MOTOR CO., U.S.A.

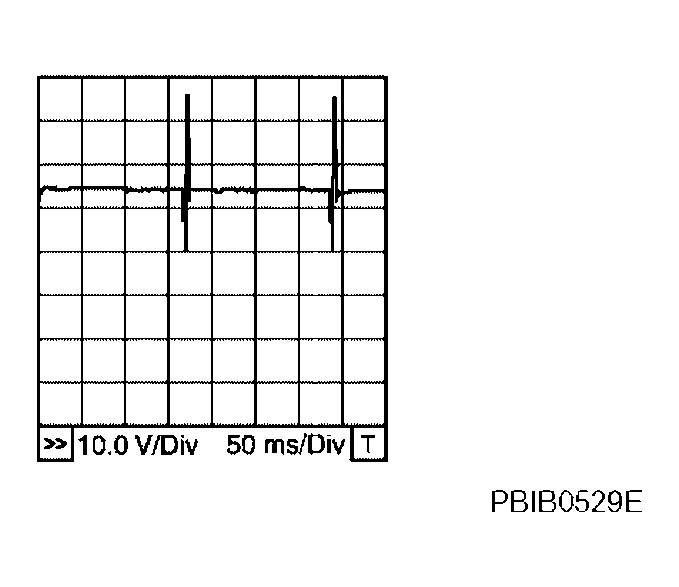

[Engine is running]

Warm-up condition
Engine speed: 2, 000 rpm

BATTERY VOLTAGE (11 - 14V)⁽¹⁾

Courtesy of NISSAN MOTOR CO., U.S.A.

⁽¹⁾	Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
