Mil And Data Link Connector: Wiring Diagram

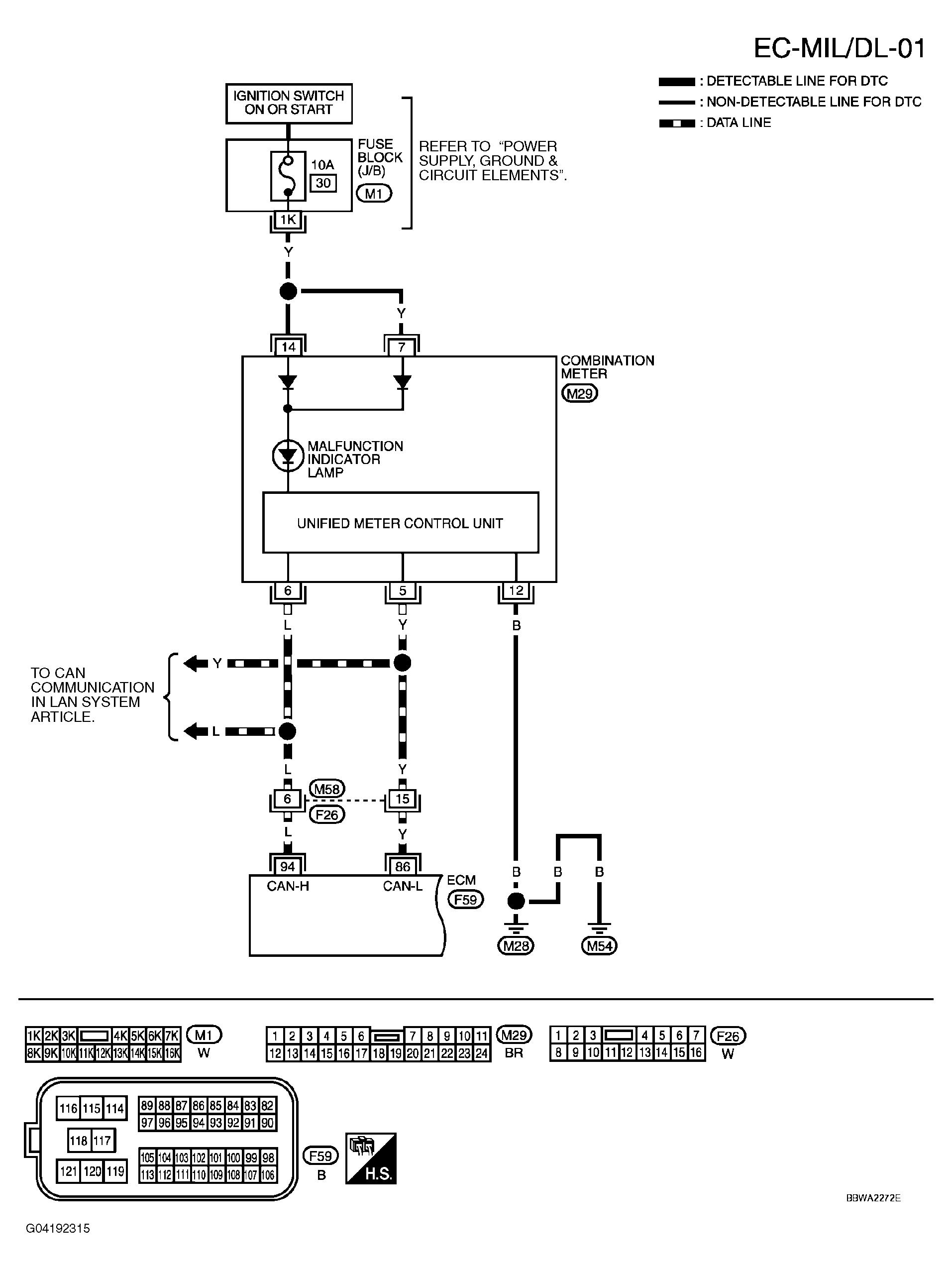

Fig 1: Identifying Wiring Diagram (EC-MIL/DL-01)
Courtesy of NISSAN MOTOR CO., U.S.A.

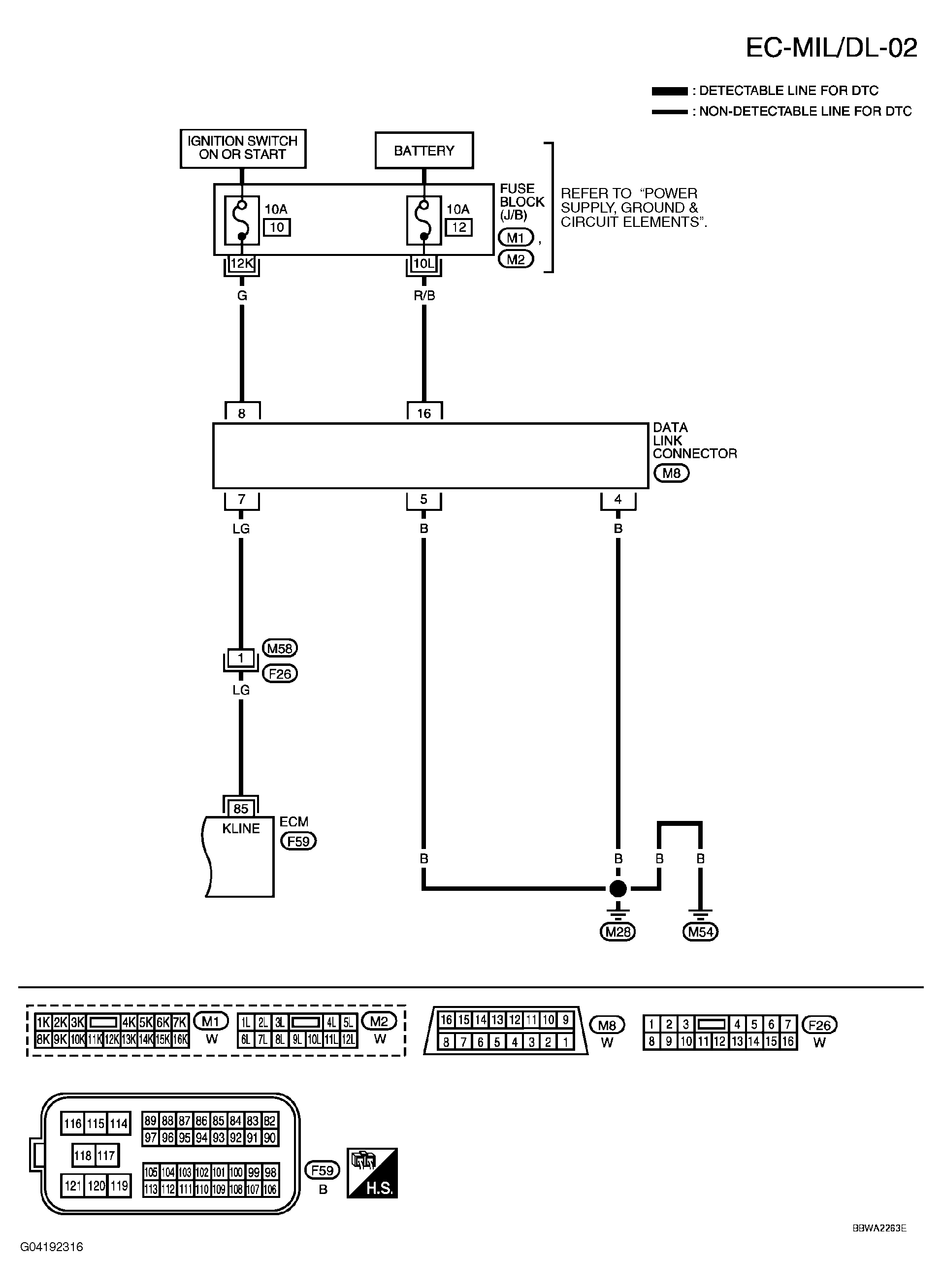

Fig 2: Identifying Wiring Diagram (EC-MIL/DL-02)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
