Refrigerant Pressure Sensor: Wiring Diagram

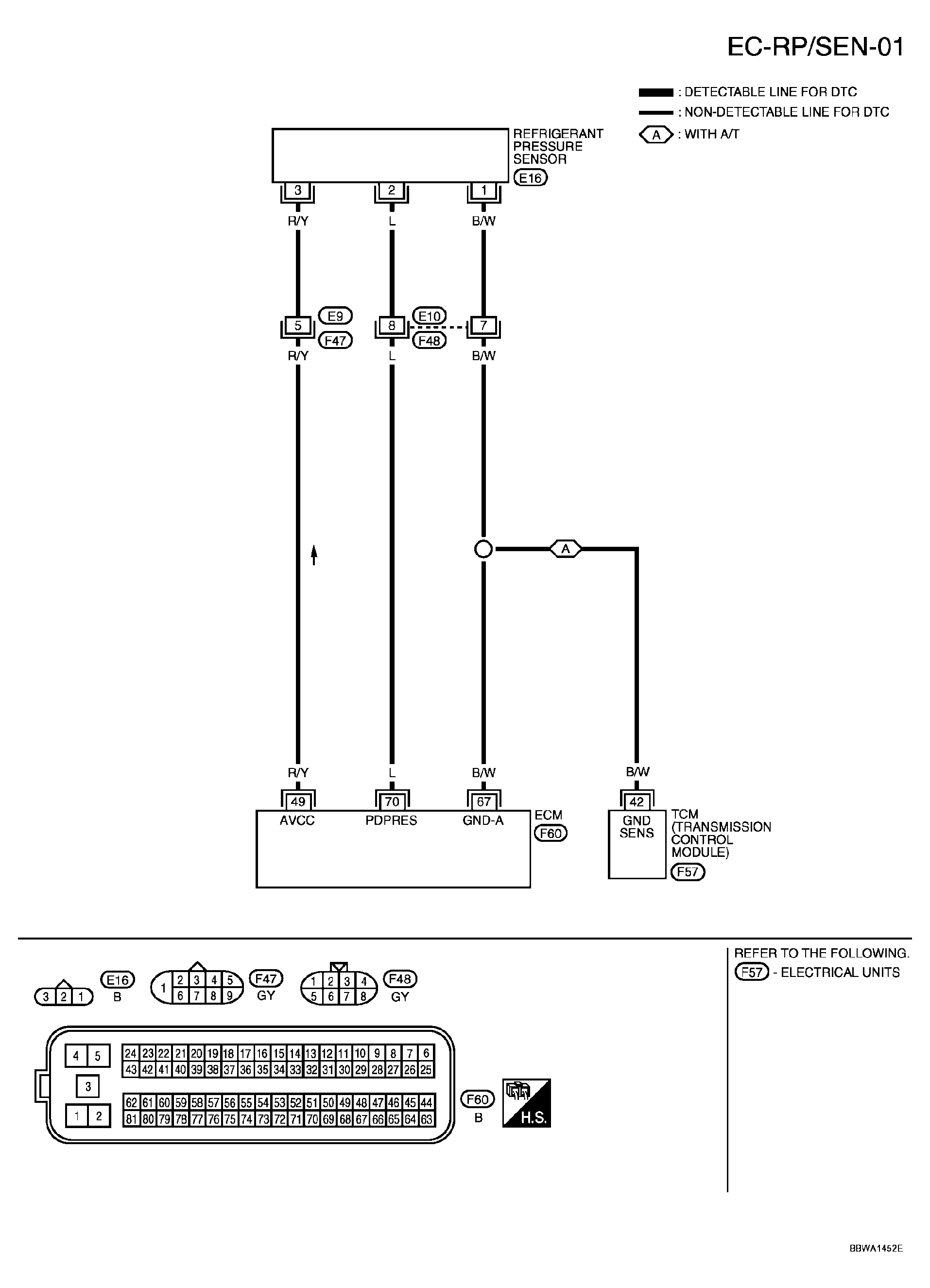

Fig 1: Identifying Wiring Diagram (EC-RP/SEN-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

WIRE COLOR AND TERMINAL NO. DESCRIPTION

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
49	R/Y	Sensor power supply (Refrigerant pressure sensor)	[Ignition switch: ON]	Approximately 5V
67	B/W	Sensor ground (MAF sensor, IAT sensor, ECT sensor, EVAP control system pressure sensor, PSP sensor, ASCD steering switch, Refrigerant pressure sensor)	[Engine is running] Warm-up condition Idle speed	Approximately 0V
70	L	Refrigerant pressure sensor	[Engine is running] Warm-up condition Both A/C switch and blower switch: ON (Compressor operates.)	1.0 - 4.0V
