Inspection Procedure

1. Turn ignition switch OFF.
2. Connect GST to data link connector, which is located under LH dash panel near the fuse box cover.
3. Turn ignition switch ON.

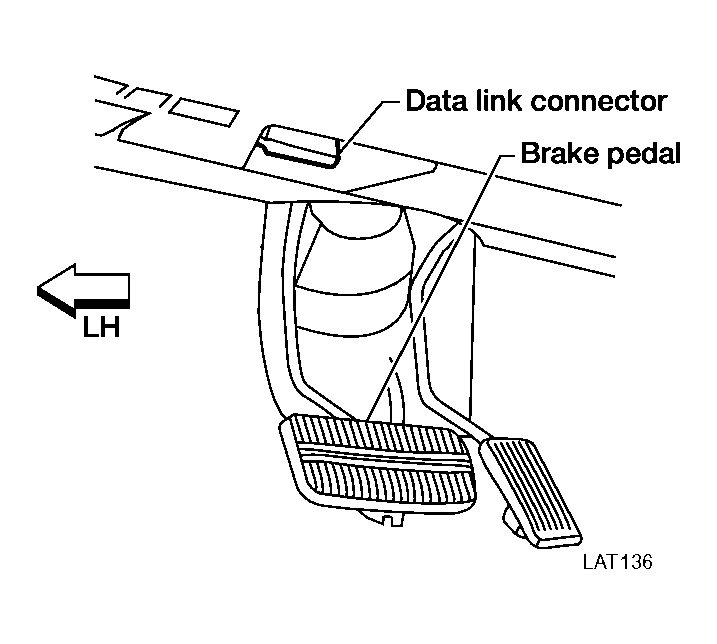

   Fig 1: Locating Data Link Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Enter the program according to instruction on the screen or in the operation manual.

   (*: Regarding GST screens in this article , sample screens are shown.)

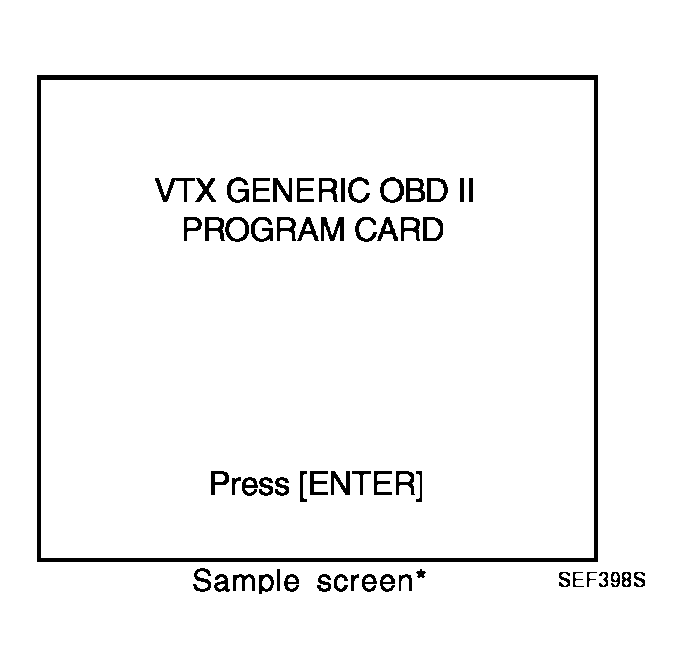

   Fig 2: GST Sample Screens Display

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Perform each diagnostic service according to each service procedure.

For further information, see the GST Operation Manual of the tool maker.

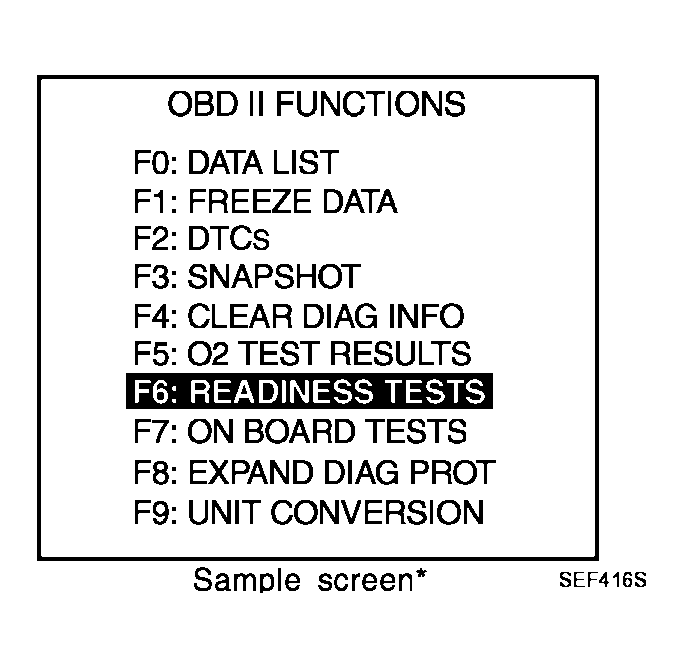

Fig 3: GST Tool Display -- OBD Functions Screen

Courtesy of NISSAN MOTOR CO., U.S.A.
