CLSD THL Pos, ACCEL Sen 1, THRTL Sen 1

Below is the data for "CLSD THL POS", "ACCEL SEN 1" and "THRTL SEN 1" when depressing the accelerator pedal with the ignition switch ON and with shift lever in D position (A/T), 1st position (M/T). The signal of "ACCEL SEN 1" and "THRTL SEN 1" should rise gradually without any intermittent drop or rise after "CLSD THL POS" is changed from "ON" to "OFF".

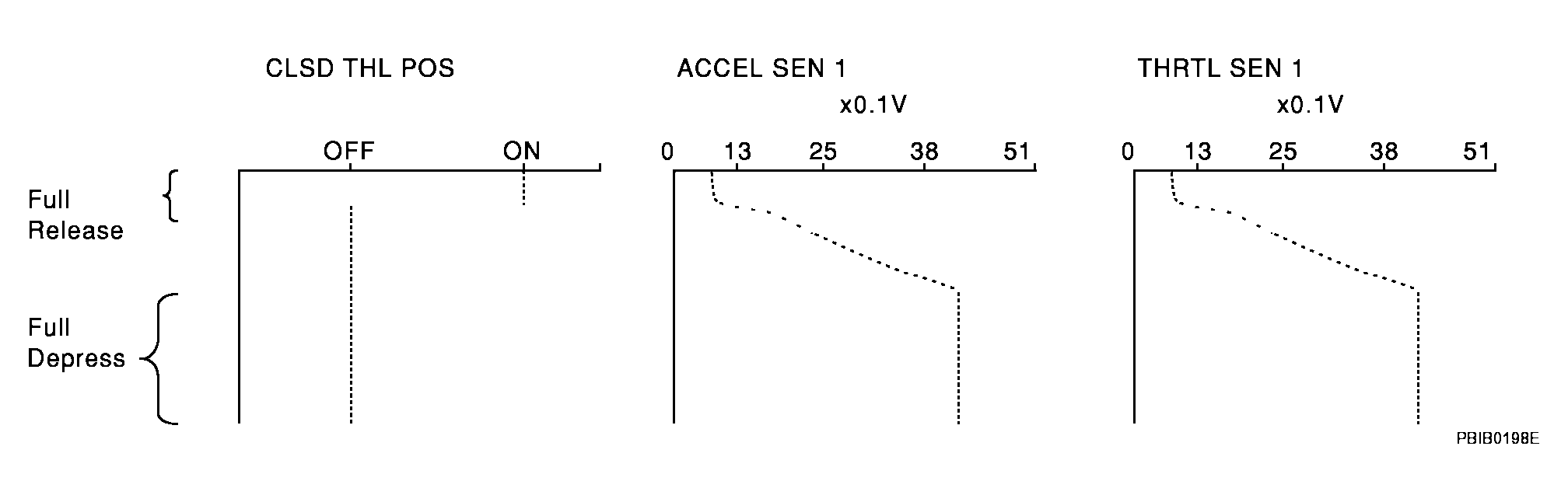

Fig 1: Major Sensor Reference Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
