Checking Fluid Leakage

Check the lines for improper attachment and for leaks, cracks, damage, loose connections, chafing and deterioration.

1. Run engine between idle speed and 1, 000 RPM.
   • Make sure temperature of fluid in oil tank rises to 60 - 80°C (140 - 176°F).

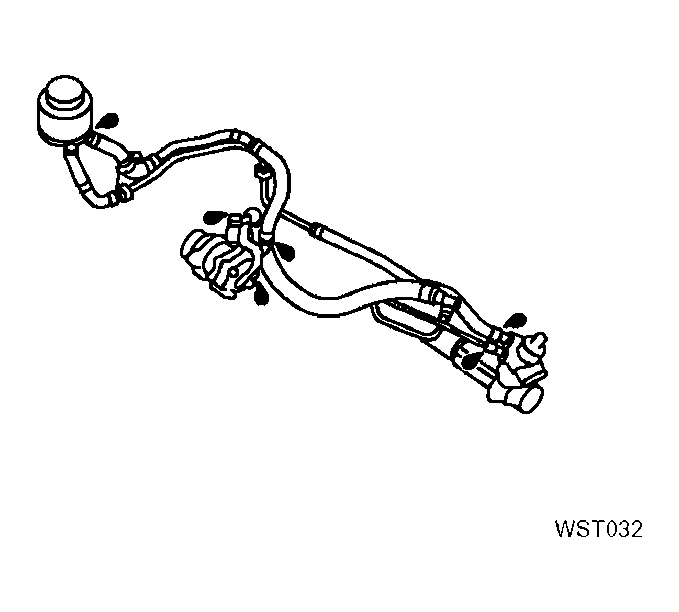

     Fig 1: Checking Fluid Leakage

     Courtesy of NISSAN MOTOR CO., U.S.A.
2. Turn steering wheel right-to-left several times.
3. Hold steering wheel at each "lock" position for five seconds and carefully check for fluid leakage.
   CAUTION: Do not hold the steering wheel in a locked position for more than 15 seconds.
4. If fluid leakage at connectors is noticed, shut off engine, then loosen and retighten flare nut.
   CAUTION: Do not overtighten connector as this can damage O-ring, washer and connector.
5. If fluid leakage from power steering pump is noticed, check power steering pump. Refer to "PRE-DISASSEMBLY INSPECTION ".
6. Check dust boots for accumulation of power steering fluid.
