Power Steering Gear And Linkage: Assembly

Install tie-rod inner sockets, dust boots and outer sockets.
Tighten outer socket lock nut.
Tie-rod length "L" : Refer to "STEERING GEAR AND LINKAGE ".

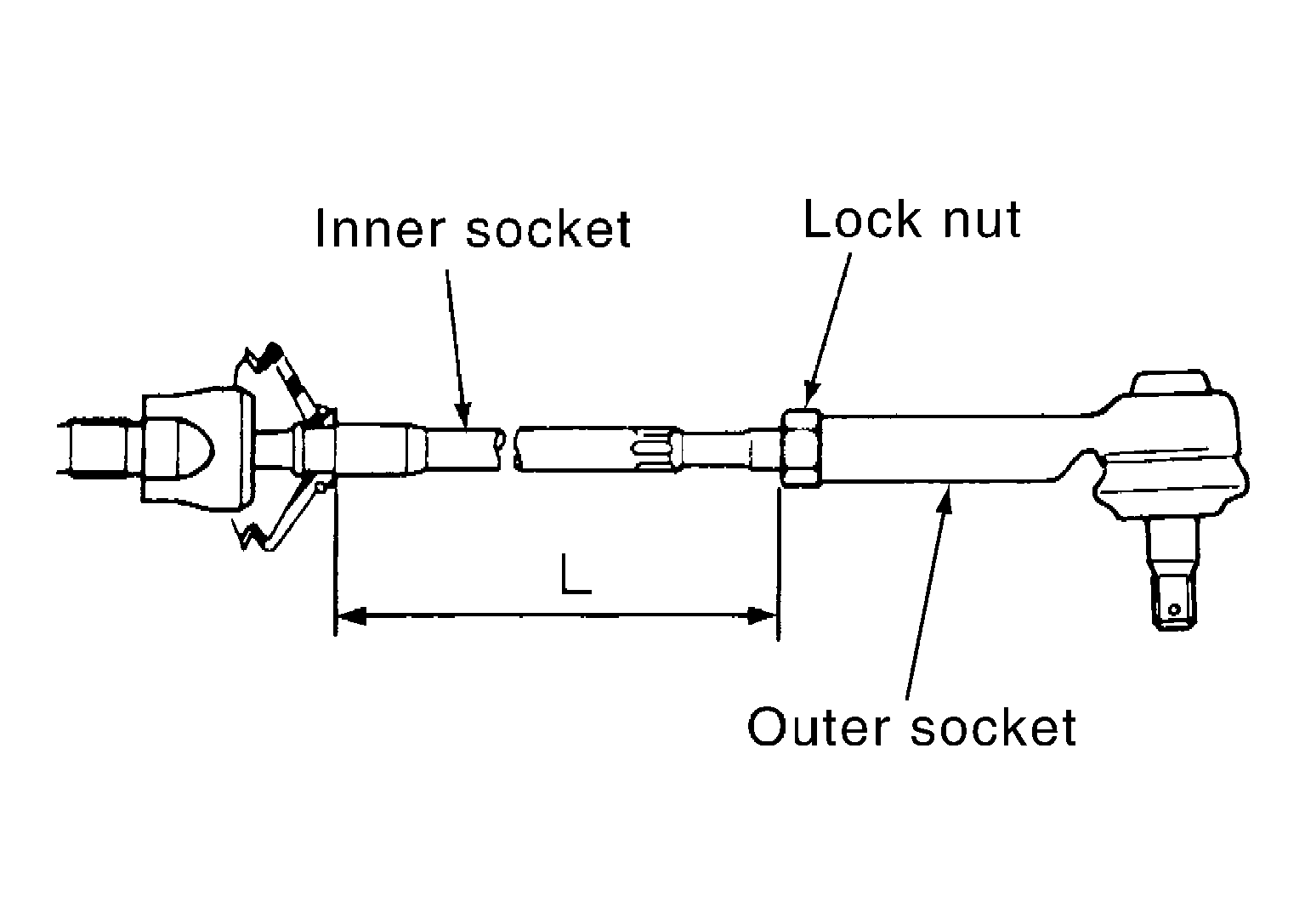

Fig 1: Identifying Tie Rod Components And Rod Length Measurement Area

Courtesy of NISSAN MOTOR CO., U.S.A.

Measure rack stroke.
Rack stroke "S" : Refer to "STEERING GEAR AND LINKAGE ".

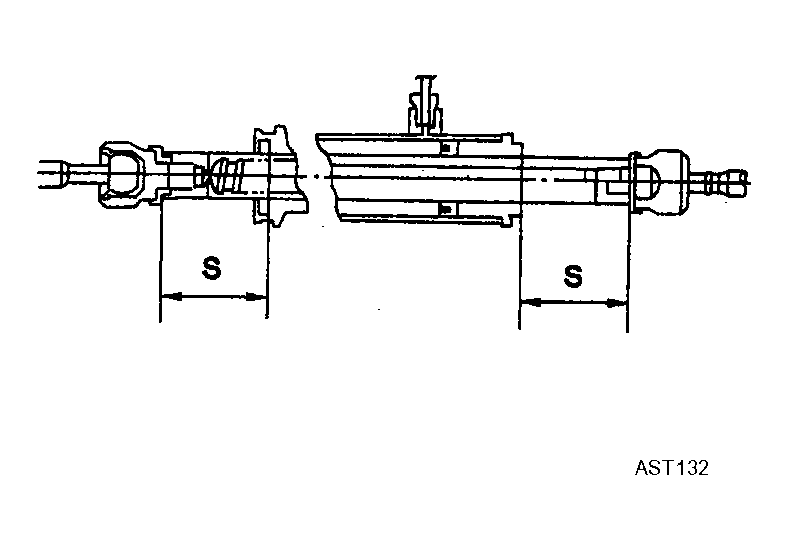

Fig 2: Identifying Rack Stroke S
Courtesy of NISSAN MOTOR CO., U.S.A.
Before installing boot, coat the contact surfaces between boot and tie-rod with grease.

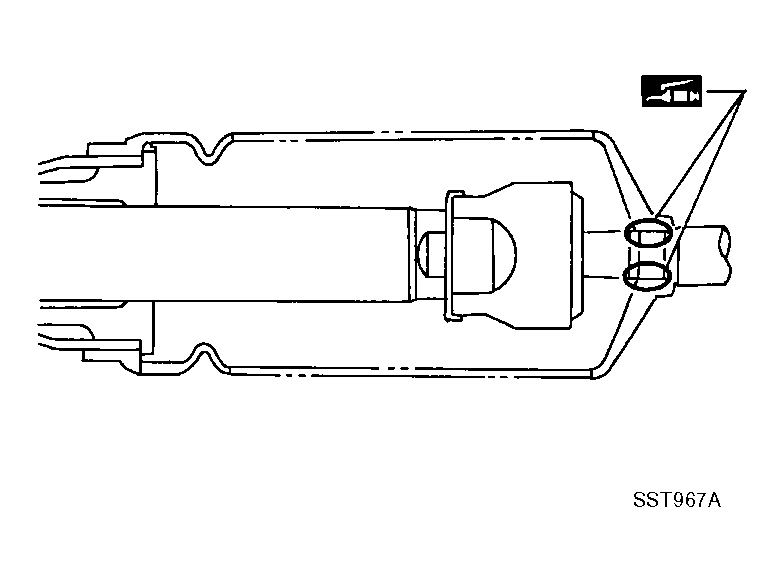

Fig 3: Coating Contact Surfaces Between Boot And Tie-Rod With Grease
Courtesy of NISSAN MOTOR CO., U.S.A.
Install boot clamps.
- Install large boot clamp using suitable tool and crimp securely.
- Install small boot clamp as shown.

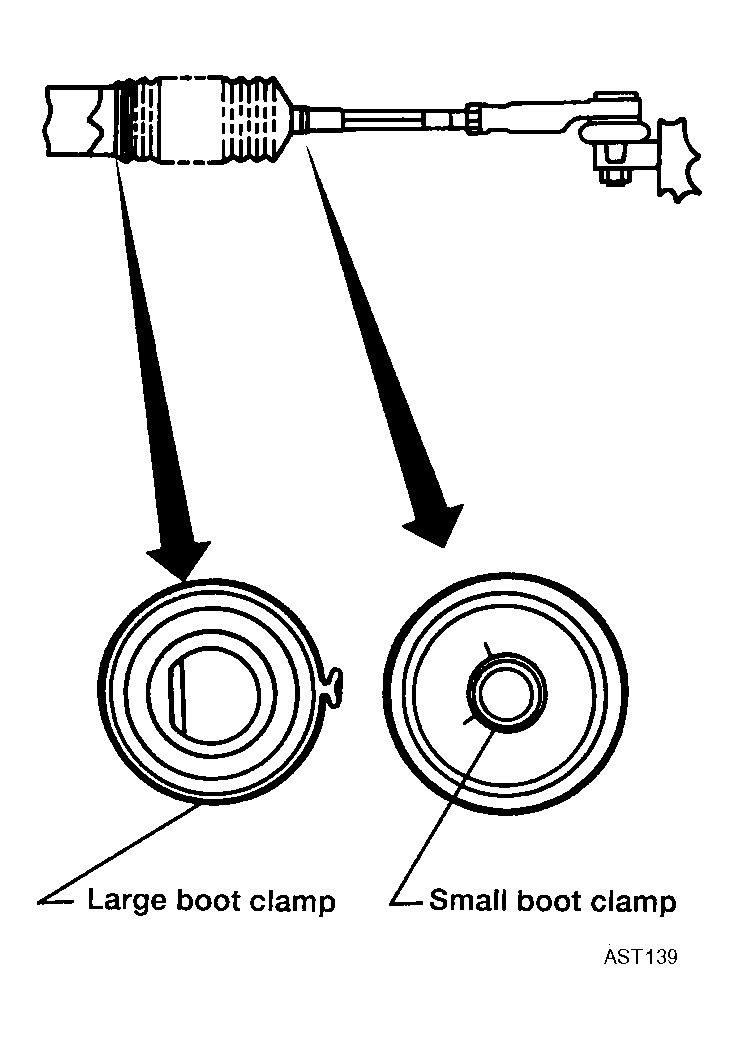

  Fig 4: Installing Small Boot Clamp
  Courtesy of NISSAN MOTOR CO., U.S.A.
