Disassembly and Assembly: Notes

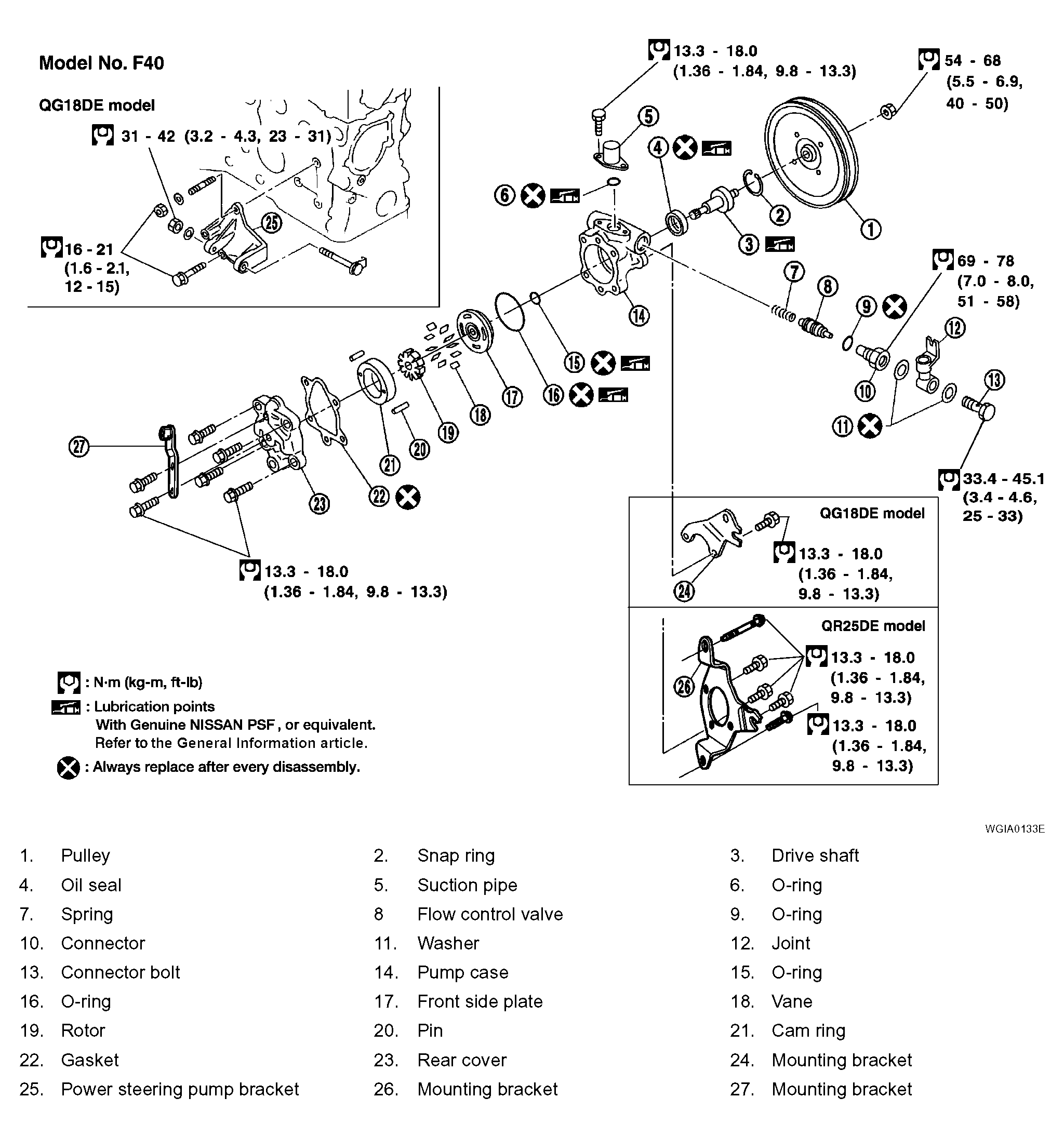

Fig 1: View Of Power Steering Oil Pump With Torque Specifications
G04194786Courtesy of NISSAN MOTOR CO., U.S.A.
