Front Wheel Turning Angle

Set wheels in straight-ahead position. Then move vehicle forward until front wheels rest on turning radius gauge properly.
Rotate steering wheel all the way right and left; measure turning angle.
Do not hold the steering wheel on full lock for more than 15 seconds.

Wheel turning angle (Full turn): Refer to " FRONT WHEEL ALIGNMENT (UNLADEN*1) ".

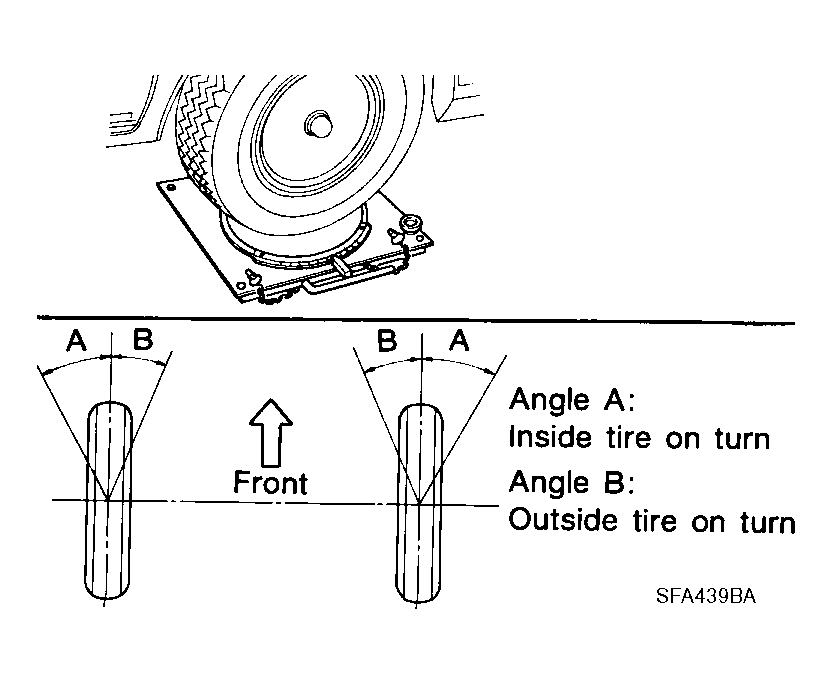

Fig 1: Identifying Front Wheel Turning Angle
Courtesy of NISSAN MOTOR CO., U.S.A.
