Commercial Service Tools
COMMERCIAL SERVICE TOOLS DESCRIPTION
| Tool name | Description | |
|---|---|---|

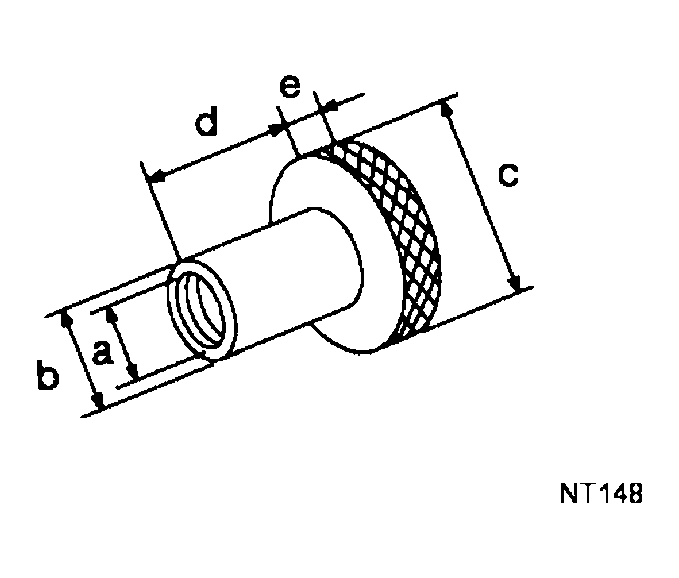

| Attachment wheel alignment | Measure wheel alignment a: Screw M24 x 1.5 pitch b: 35 mm (1.38 in) dia. c: 65 mm (2.56 in) dia. d: 56 mm (2.20 in) e: 12 mm (0.47 in) |
|
| Equivalent to GG94310000 1 Flare nut crowfoot 2 Torque wrench |
Removing and installing brake piping a: 10 mm (0.39 in) |
|

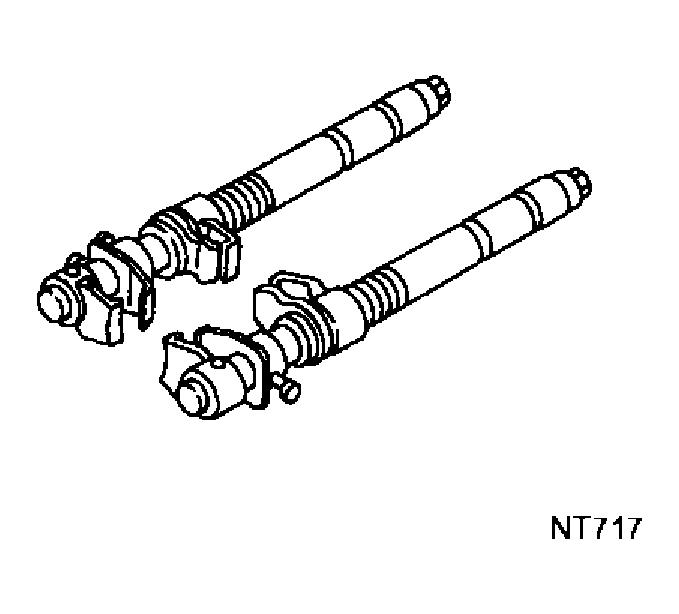

| Spring compressor | Removing and installing coil spring |
