Removal and Installation

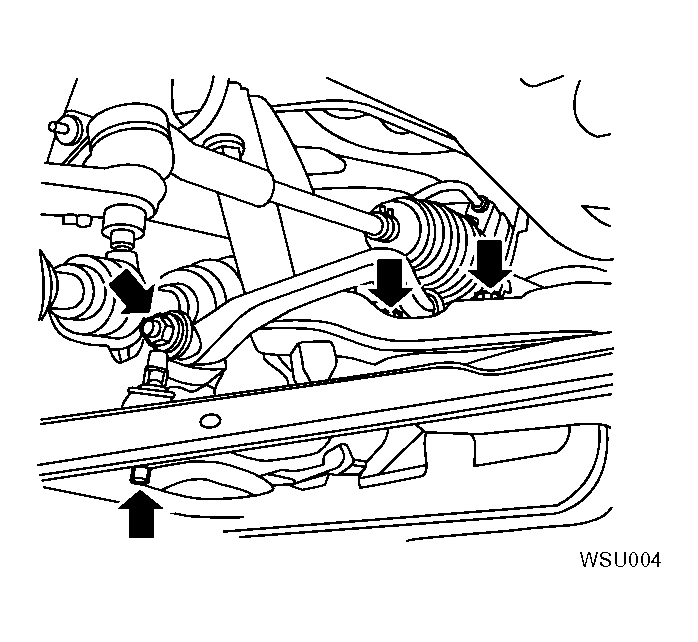

Remove four stabilizer bar mounting nuts from each side.

Fig 1: Locating Four Stabilizer Bar Mounting Nuts
Courtesy of NISSAN MOTOR CO., U.S.A.
When installing stabilizer, make sure the paint mark and clamp face in their correct directions.

Fig 2: Identifying Paint Mark On Stabilizer
Courtesy of NISSAN MOTOR CO., U.S.A.

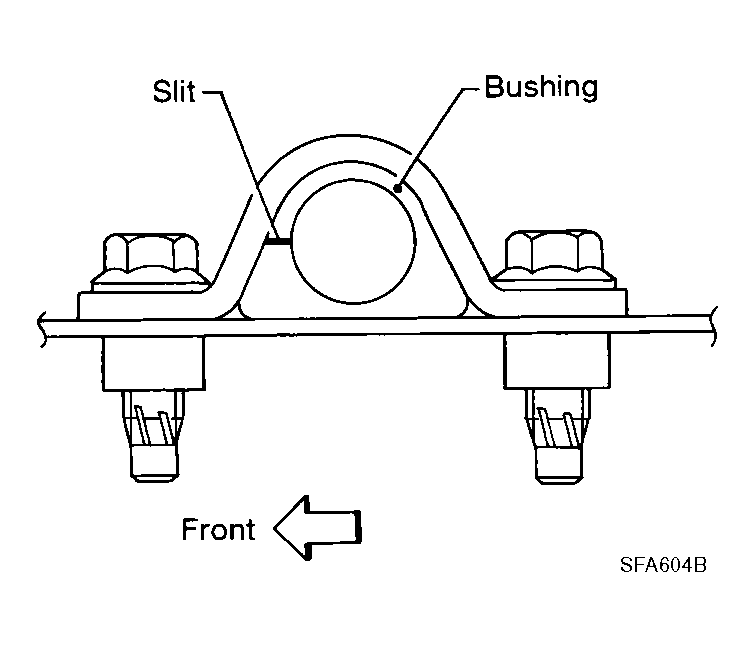

Make sure that the slit in the bushing is in the position shown.

Fig 3: Identifying Slit On Bushing
Courtesy of NISSAN MOTOR CO., U.S.A.
Install four stabilizer bar mounting nuts at each side.

Fig 4: Locating Four Stabilizer Bar Mounting Nuts
Courtesy of NISSAN MOTOR CO., U.S.A.

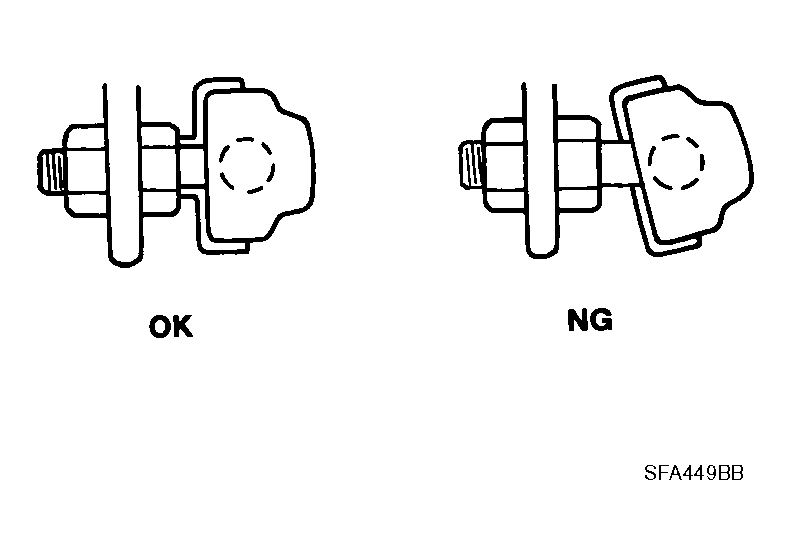

Install stabilizer bar with ball joint socket properly placed.

Fig 5: Identifying Proper Installing Conditions Of Stabilizer Bar With Ball Joint Socket
Courtesy of NISSAN MOTOR CO., U.S.A.
Check stabilizer for deformation or cracks and replace if necessary.
Check rubber bushings for deterioration or cracks and replace if necessary.

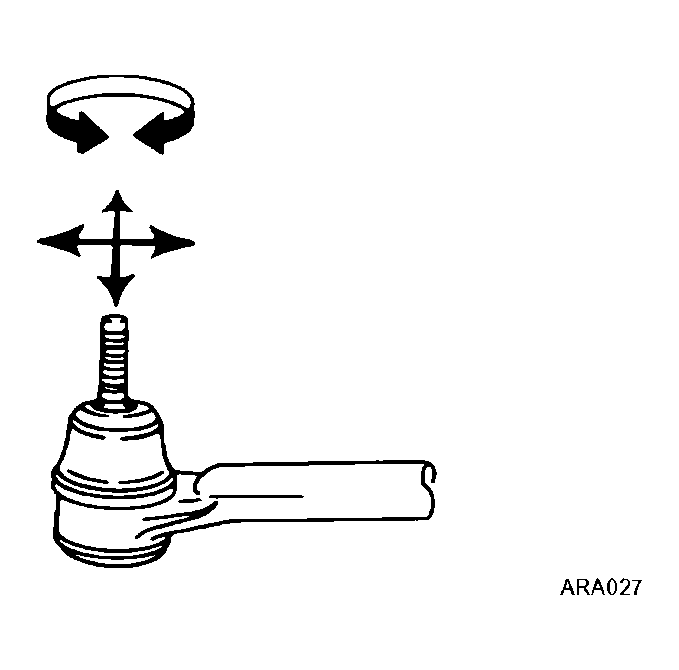

Check ball joint can rotate in all directions. If movement is not smooth and free, replace stabilizer bar connecting rod.

Fig 6: Checking Ball Joint Rotation
Courtesy of NISSAN MOTOR CO., U.S.A.
