Coil Spring And Shock Absorber: Assembly

Locate upper spring seat as shown.

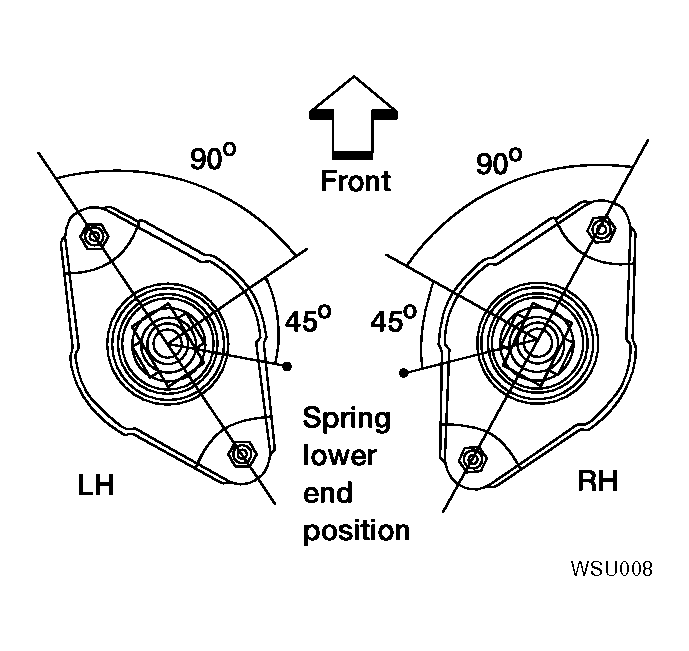

Fig 1: Locating Upper Spring Seat
Courtesy of NISSAN MOTOR CO., U.S.A.
When installing coil spring, be careful not to reverse top and bottom direction. (Top end is flat.)
When installing coil spring on shock absorber, it must be positioned as shown.
CAUTION: Do not reuse piston rod lock nut.

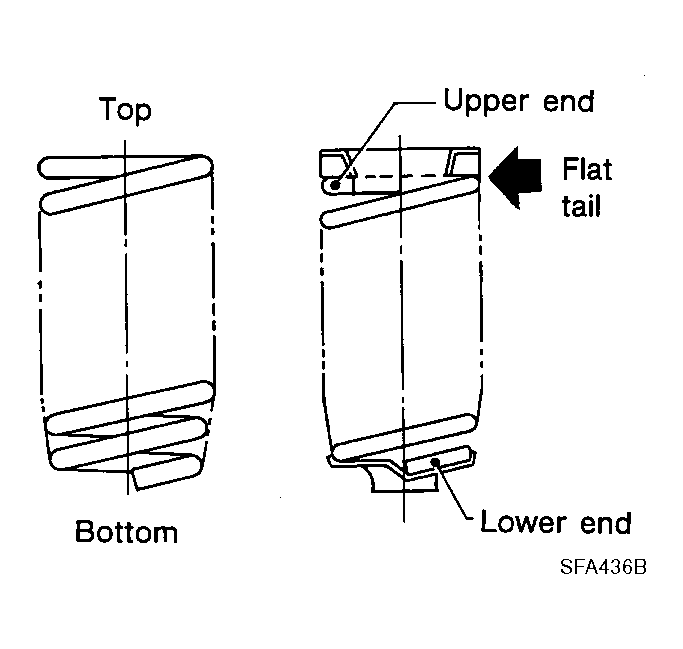

Fig 2: Installing Coil Spring

Courtesy of NISSAN MOTOR CO., U.S.A.
