Rear Suspension Assembly: Components

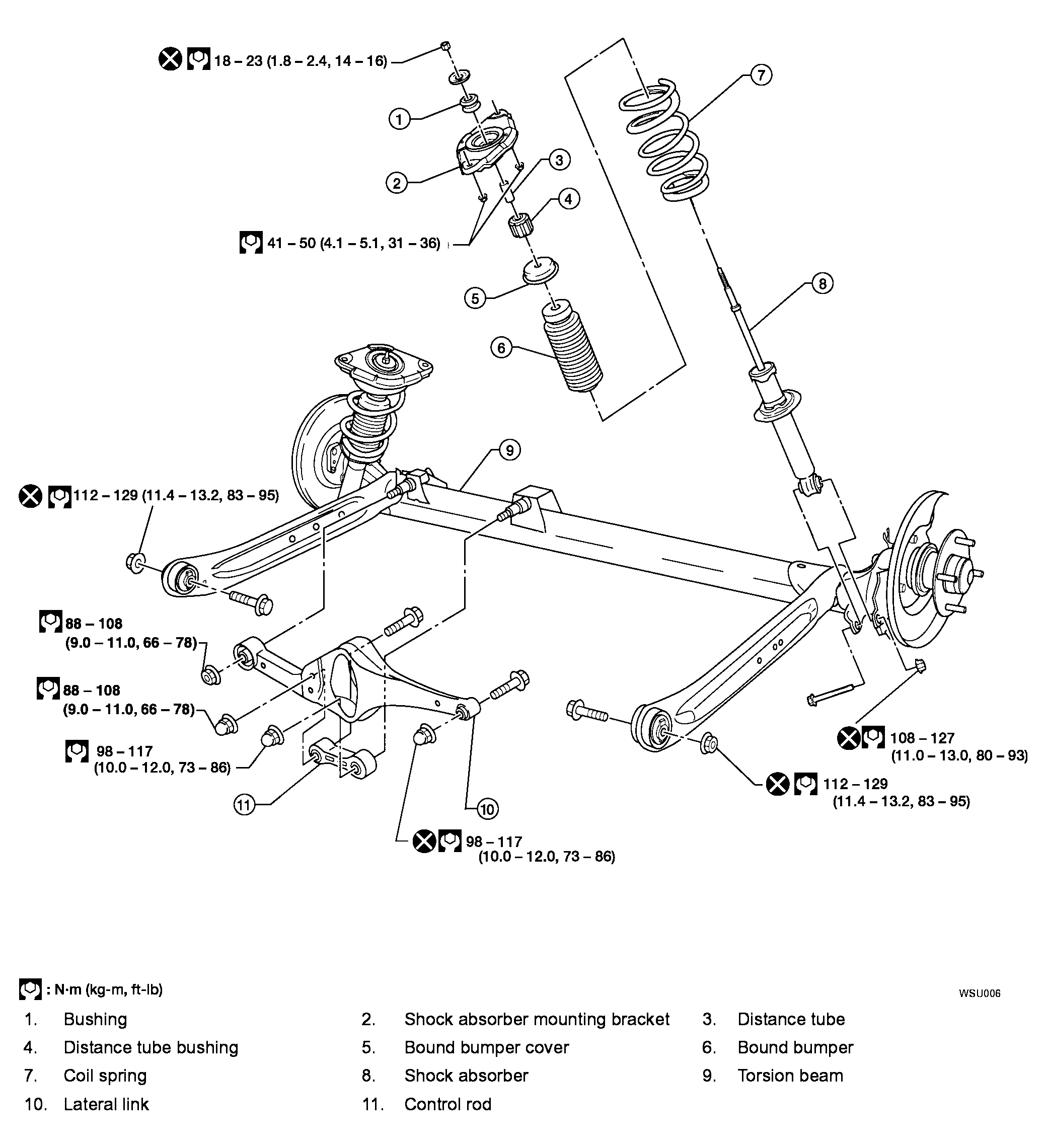

Fig 1: Exploded View Of Rear Suspension Assembly With Torque Specifications
G04194532Courtesy of NISSAN MOTOR CO., U.S.A.
