CONSULT-II Setting Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.
    Fig 1: Locating Data Link Connector
    G04194908Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch ON.
  4. Touch "START (NISSAN BASED VHCL)".
    Fig 2: Consult-II Display - START (NISSAN BASED VHCL)
    G04151184Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "A/T".

    If "A/T" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

    Fig 3: Consult-II SELECT SYSTEM Display Screen
    G04083859Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DTC WORK SUPPORT".
    Fig 4: Consult-II SELECT DIAG MODE Display Screen
    G04083861Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch select item menu (1ST, 2ND, etc.).

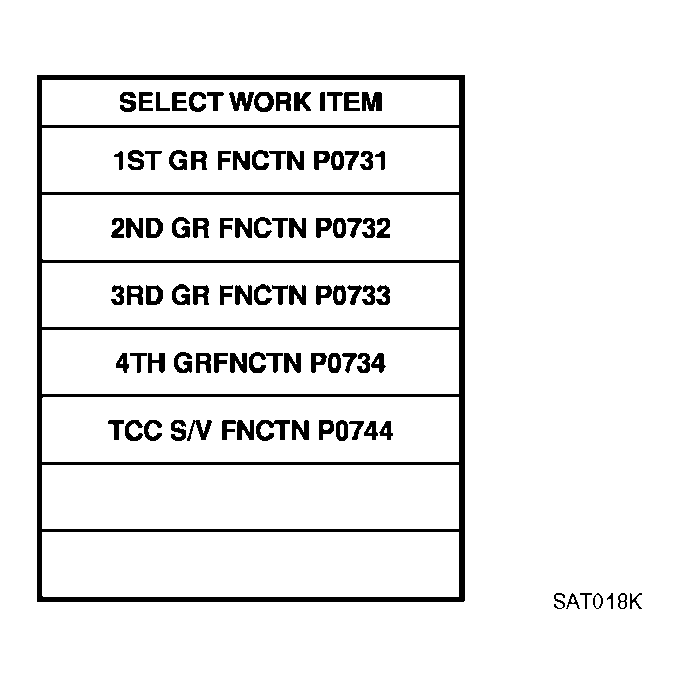

    Fig 5: CONSULT-II SELECT WORK ITEM Screen
    G04193681Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Touch "START".

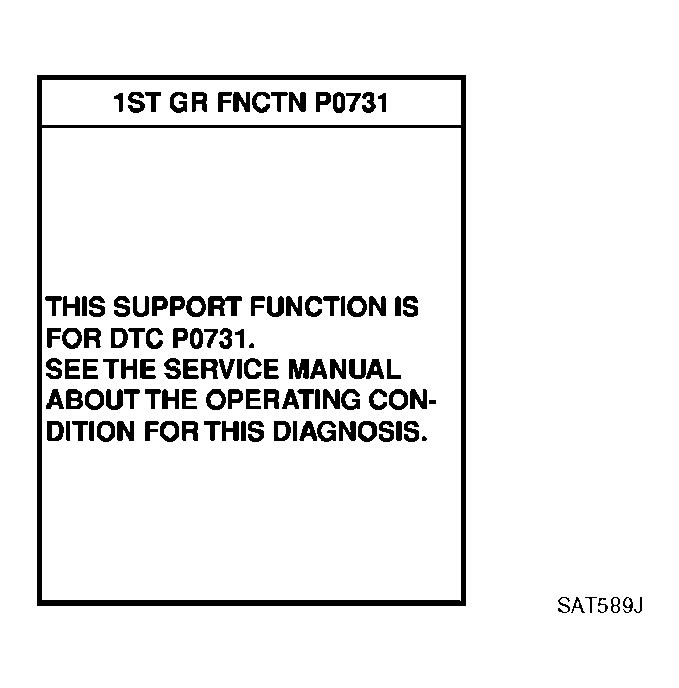

    Fig 6: CONSULT-II 1ST GR FNCTN P0731 Screen
    G04193682Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Perform driving test according to "DTC CONFIRMATION PROCEDURE" in "TROUBLE DIAGNOSIS FOR DTC".

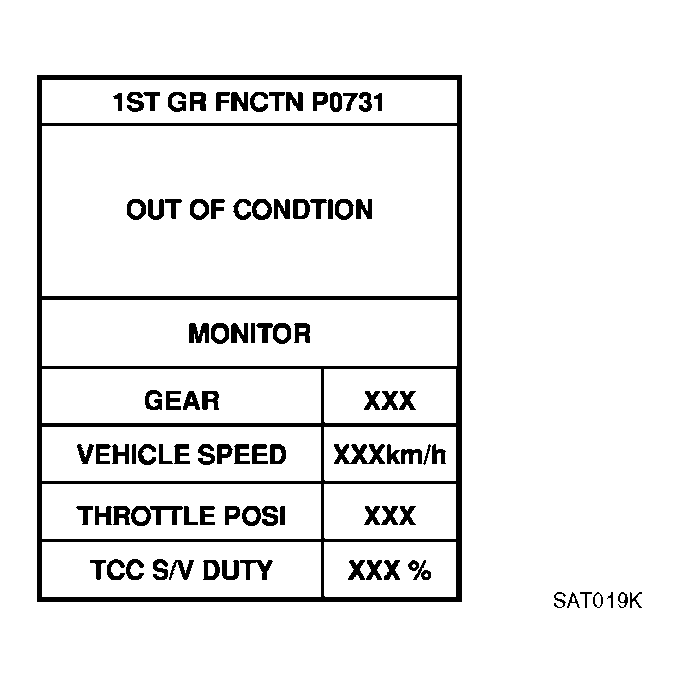

    Fig 7: CONSULT-II Display - Out Of Condition
    G04193683Courtesy of NISSAN MOTOR CO., U.S.A.
    • When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING"  .

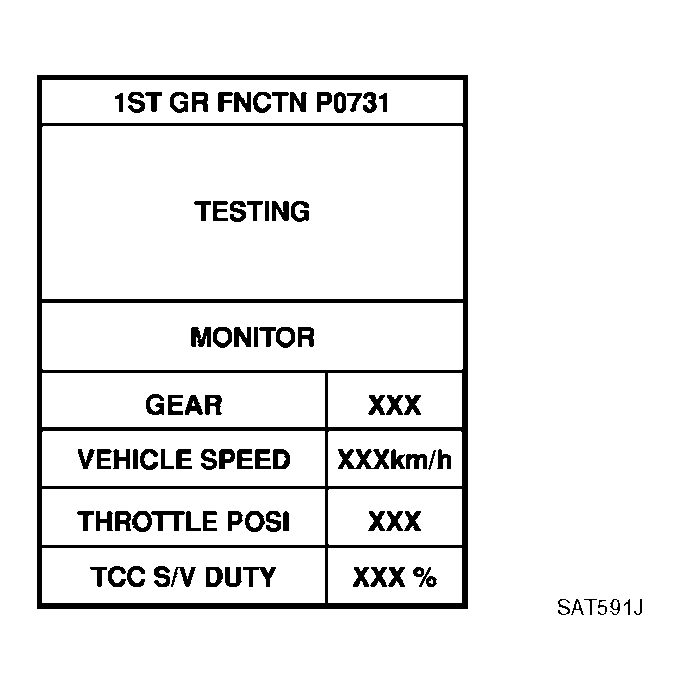

    Fig 8: CONSULT-II Display - TESTING
    G04193684Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Stop vehicle. If "NG" appears on the screen, malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".

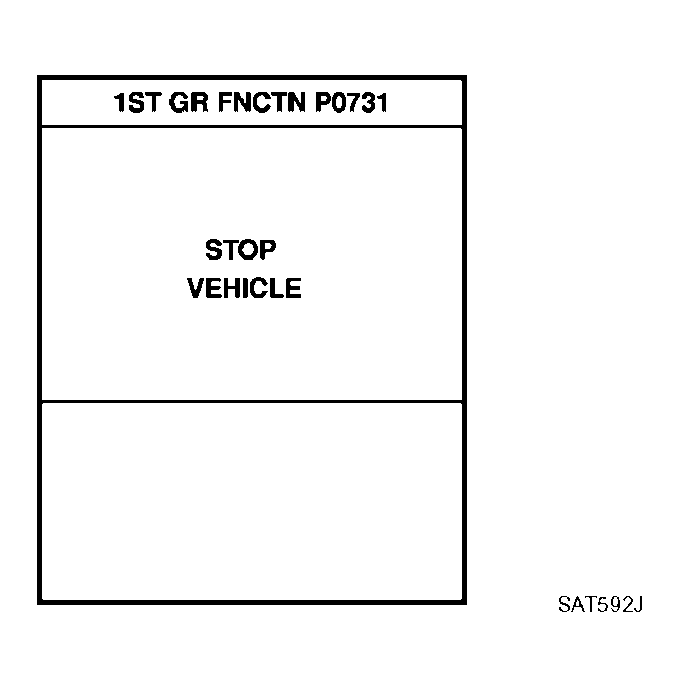

    Fig 9: CONSULT-II Display - STOP VEHICLE
    G04193685Courtesy of NISSAN MOTOR CO., U.S.A.

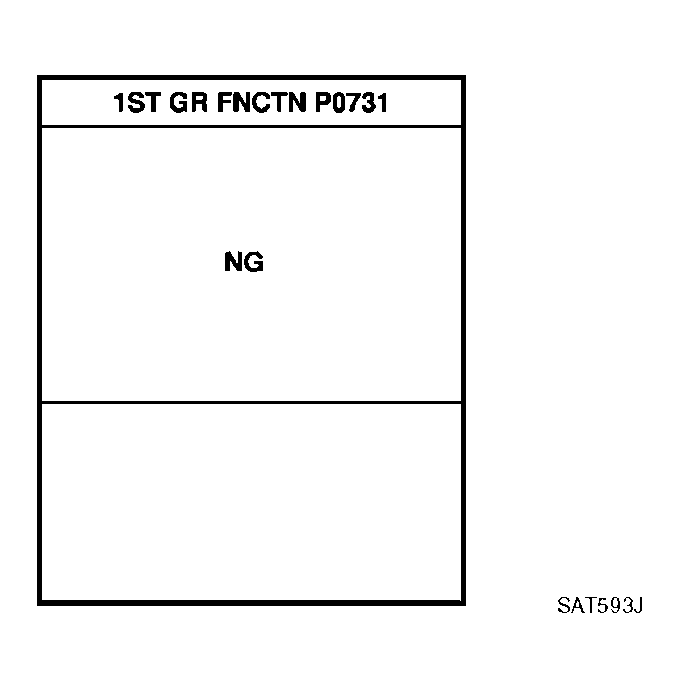

    Fig 10: CONSULT-II Display - NG
    G04193686Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Perform test drive to check gear shift feeling in accordance with instructions displayed.

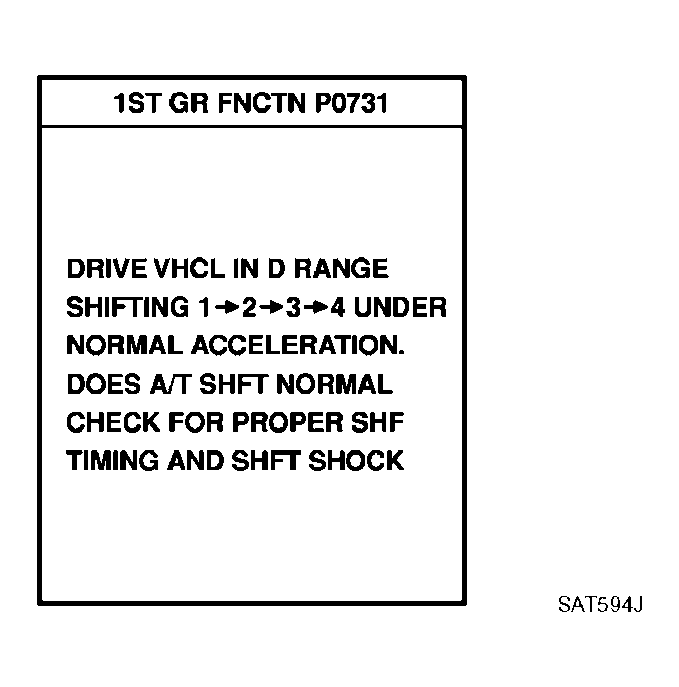

    Fig 11: CONSULT-II 1ST GR FNCTN P0731 Screen
    G04193687Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Touch "YES" or "NO".
    Fig 12: CONSULT-II 1ST GR FNCTN P0731 Screen
    G04193688Courtesy of NISSAN MOTOR CO., U.S.A.
  13. CONSULT-II procedure ended.

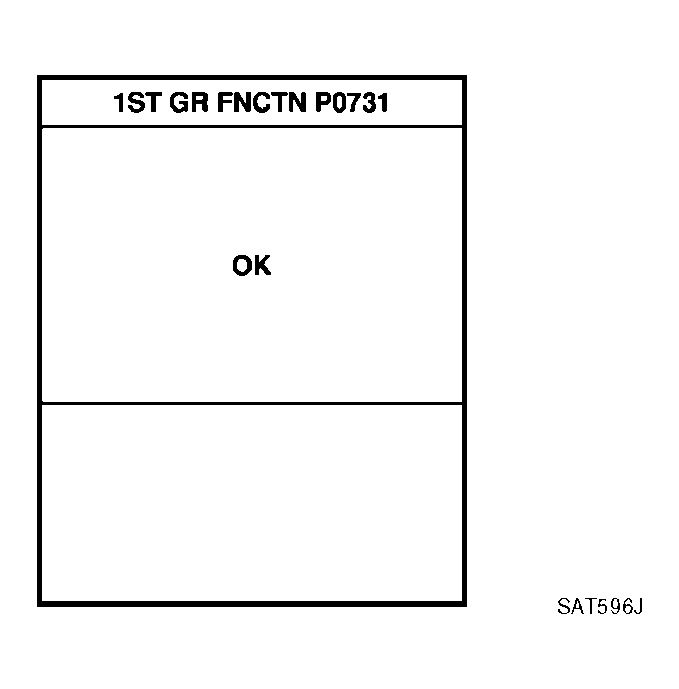

    Fig 13: CONSULT-II Display - OK
    G04193689Courtesy of NISSAN MOTOR CO., U.S.A.

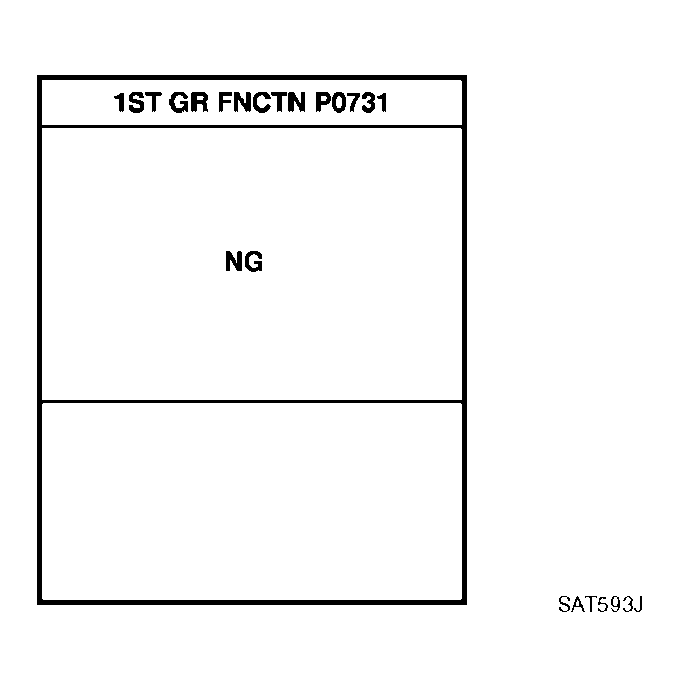

    Fig 14: CONSULT-II Display - NG
    G04193690Courtesy of NISSAN MOTOR CO., U.S.A.

If "NG" appears on the screen, a malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".
