Overrun Clutch Operating Conditions

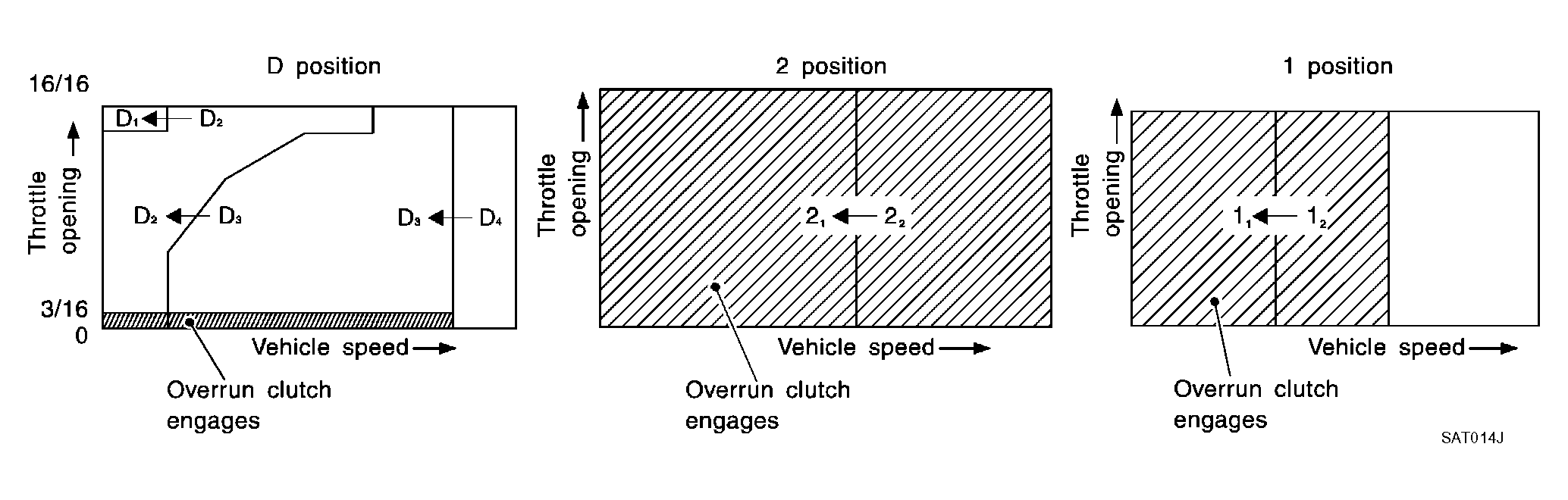

Courtesy of NISSAN MOTOR CO., U.S.A. OVERRUN CLUTCH OPERATING CONDITIONS
| |
Gear position |
Throttle opening |
| D position |
D1, D2, D3 gear position |
Less than 3/16 |
| 2 position |
21, 22 gear position |
| 1 position |
11, 12 gear position |
At any position |
