Cross-sectional View

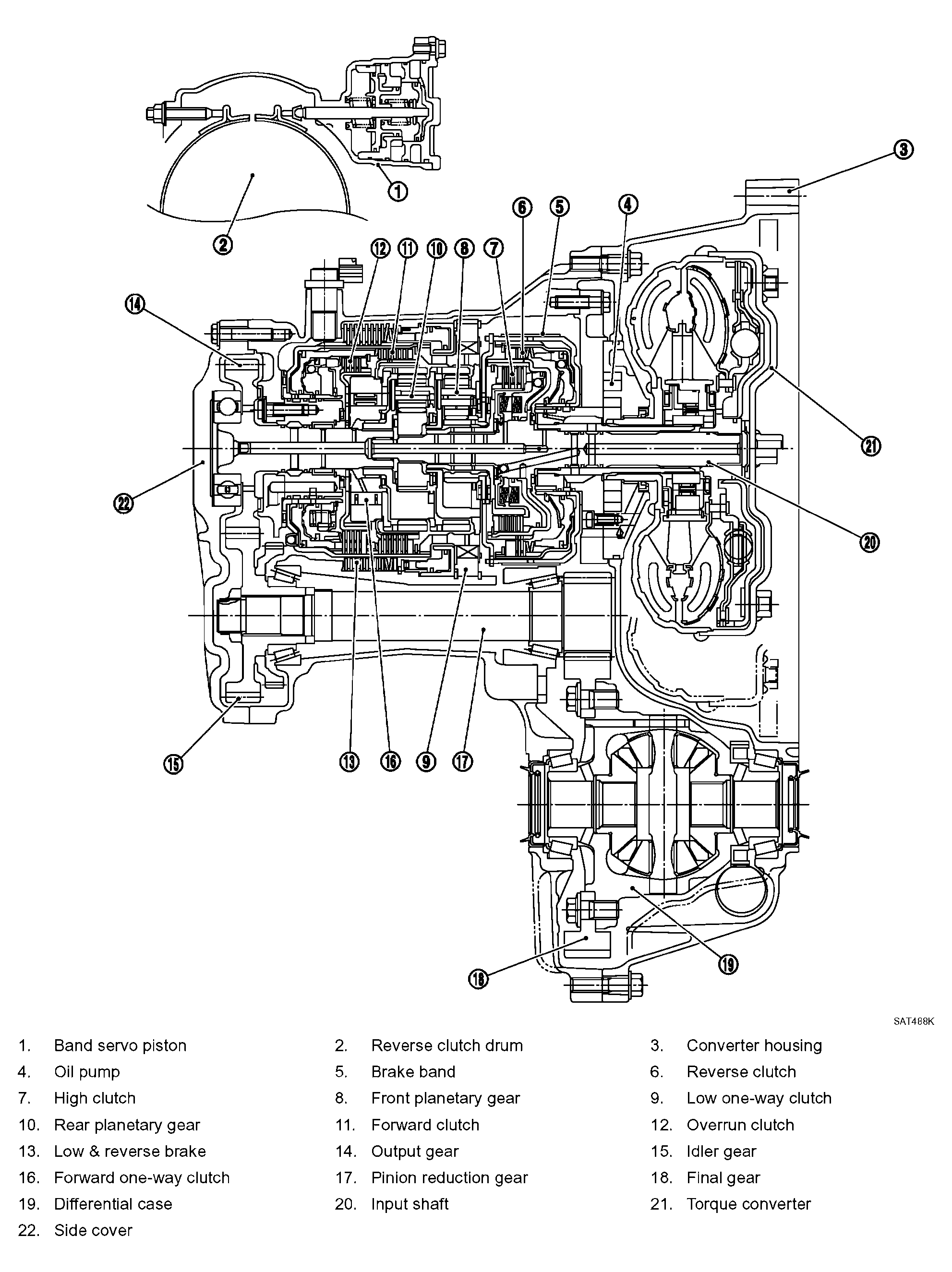

Fig 1: Identifying A/T Cross Sectional View
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
