11 Position

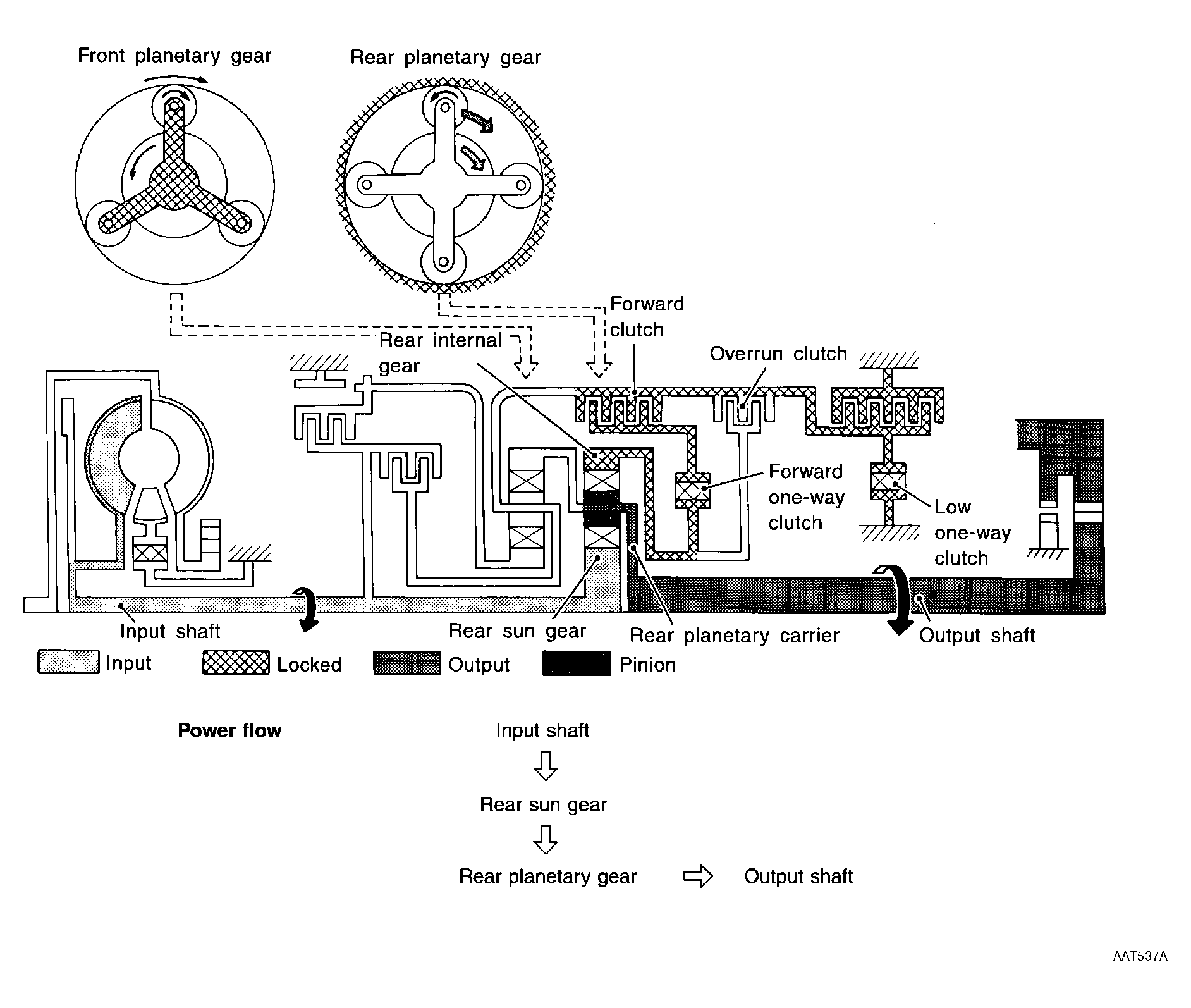

Fig 1: Identifying Power Transmission - 11 Position

Courtesy of NISSAN MOTOR CO., U.S.A.

IDENTIFYING POWER TRANSMISSION - 11 POSITION

Forward clutch Forward one-way clutch Overrun clutch Low and reverse brake	As overrun clutch engages, rear internal gear is locked by the operation of low and reverse brake. This is different from that of D1 and 21.
Engine brake	Overrun clutch always engages, therefore engine brake can be obtained when decelerating.
