Commercial Service Tools

COMMERCIAL SERVICE TOOLS SPECIFICATIONS

Tool name Description
Puller
G04076026Courtesy of NISSAN MOTOR CO., U.S.A.
  • Removing idler gear bearing inner race
  • Removing and installing band servo piston snap ring

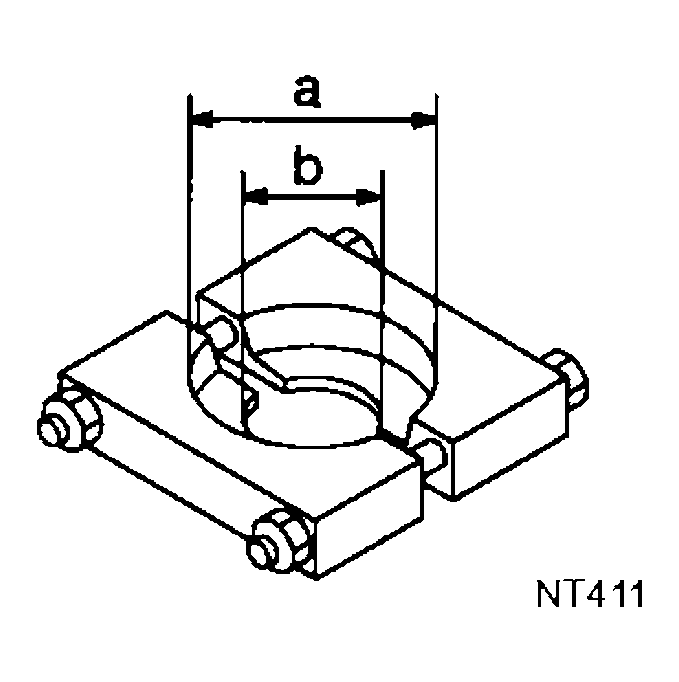

Puller
G04193640Courtesy of NISSAN MOTOR CO., U.S.A.
  • Removing reduction gear bearing inner race
  1. 60 mm (2.36 in) dia  .
  2. 35 mm (1.38 in) dia  .

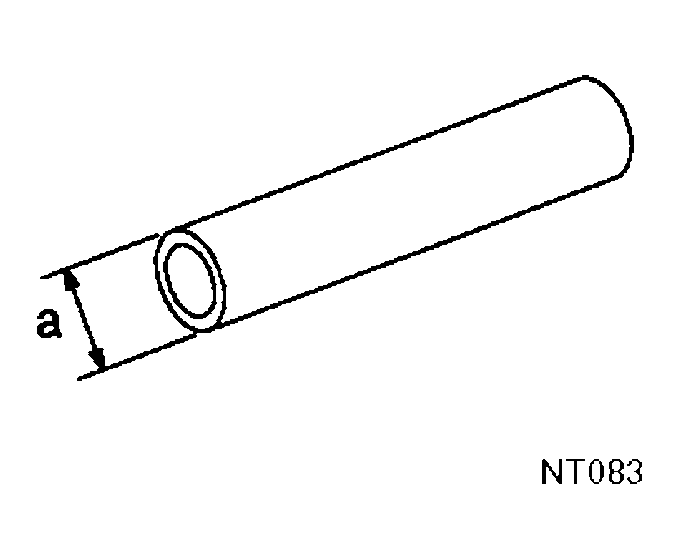

Drift
G04193641Courtesy of NISSAN MOTOR CO., U.S.A.
  • Installing needle bearing on bearing retainer
  1. 36 mm (1.42 in) dia  .

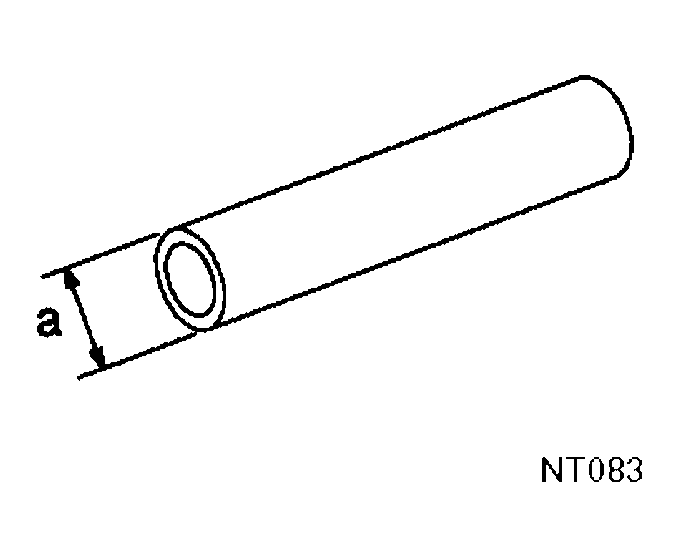

Drift
G04193642Courtesy of NISSAN MOTOR CO., U.S.A.
  • Removing needle bearing from bearing retainer
  1. 33.5 mm (1.319 in) dia  .
Drift
G04193643Courtesy of NISSAN MOTOR CO., U.S.A.
  • Installing differential side bearing outer race (RH side)
  1. 75 mm (2.95 in) dia  .
