Special Service Tools

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

SPECIAL SERVICE TOOLS SPECIFICATIONS

Tool number (Kent-Moore No.) Tool name		Description

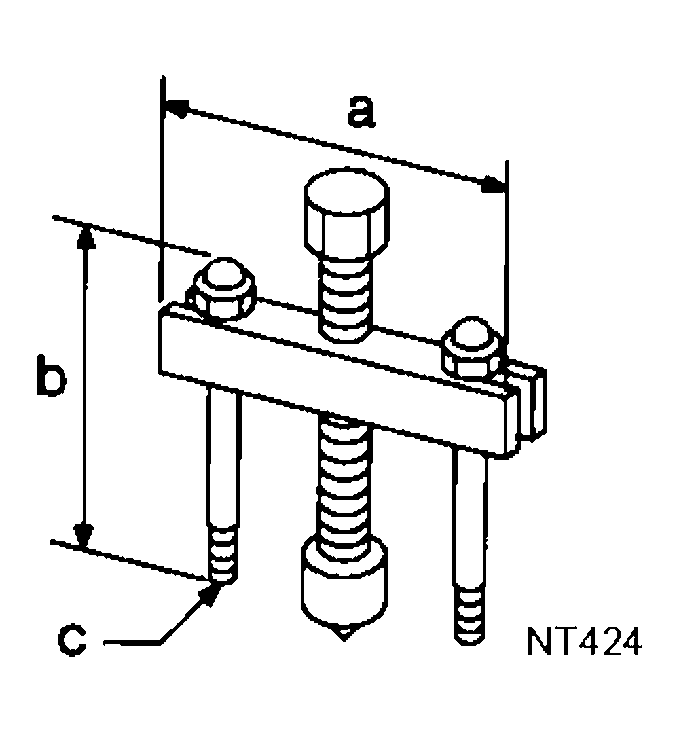

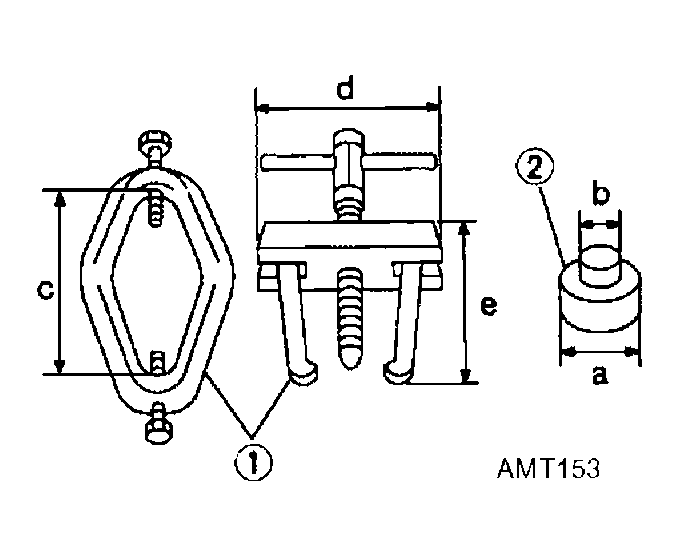

KV381054S0 (J-34286) Puller	Courtesy of NISSAN MOTOR CO., U.S.A.	Removing differential side oil seals Removing differential side bearing outer race Removing idler gear bearing outer race 250 mm (9.84 in) 160 mm (6.30 in)

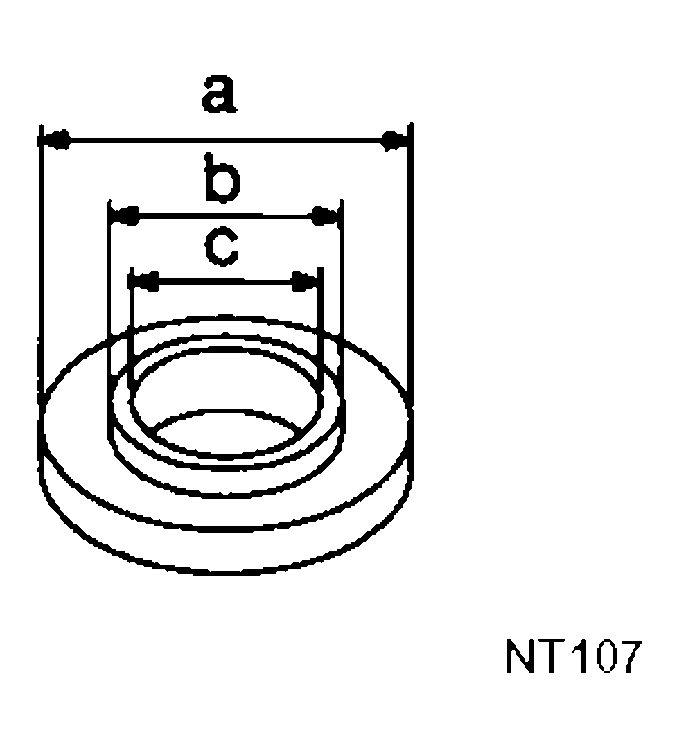

ST33400001 (J-26082) Drift	Courtesy of NISSAN MOTOR CO., U.S.A.	Installing differential side oil seal F04B and F04W (RH side) Installing oil seal on oil pump housing 60 mm (2.36 in) dia . 47 mm (1.85 in) dia .

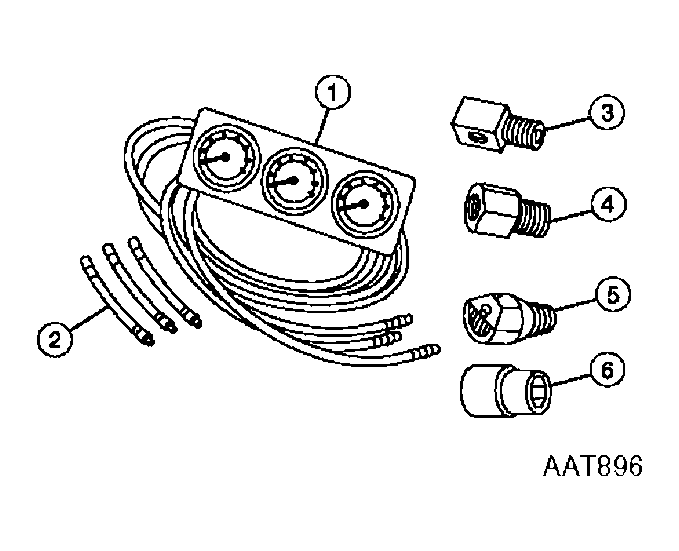

(J-34301 -C) Oil pressure gauge set 1 (J-34301-1) Oil pressure gauge 2 (J-34301-2) Hoses 3 (J-34298) Adapter 4 (J-34282-2) Adapter 5 (790-301 -1230-A) 60° Adapter 6 (J-34301-15) Square socket	Courtesy of NISSAN MOTOR CO., U.S.A.	Measuring line pressure

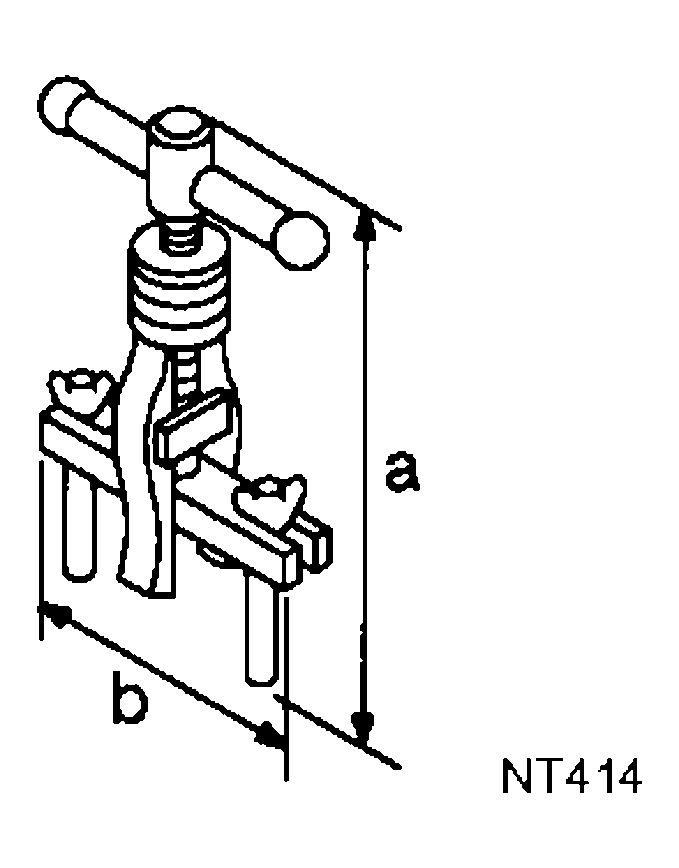

ST27180001 (J-25726-A) Puller	Courtesy of NISSAN MOTOR CO., U.S.A.	Removing idler gear 100 mm (3.94 in) 110 mm (4.33 in) M8 x 1.25P

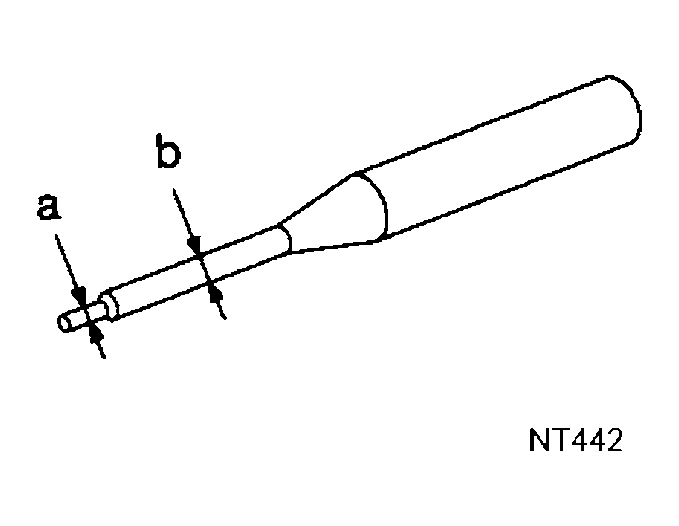

ST23540000 (J-25689-A) Pin punch	Courtesy of NISSAN MOTOR CO., U.S.A.	Removing and installing parking rod plate and manual plate pins 2.3 mm (0.091 in) dia . 4 mm (0.16 in) dia .
ST25710000 (J-25689-A) Pin punch	Courtesy of NISSAN MOTOR CO., U.S.A.	Aligning groove of manual shaft and hole of transmission case 2 mm (0.08 in) dia .
KV32101000 (J-25689-A) Pin punch	Courtesy of NISSAN MOTOR CO., U.S.A.	Removing and installing manual shaft retaining pin Removing and installing pinion mate shaft lock pin 4 mm (0.16 in) dia .

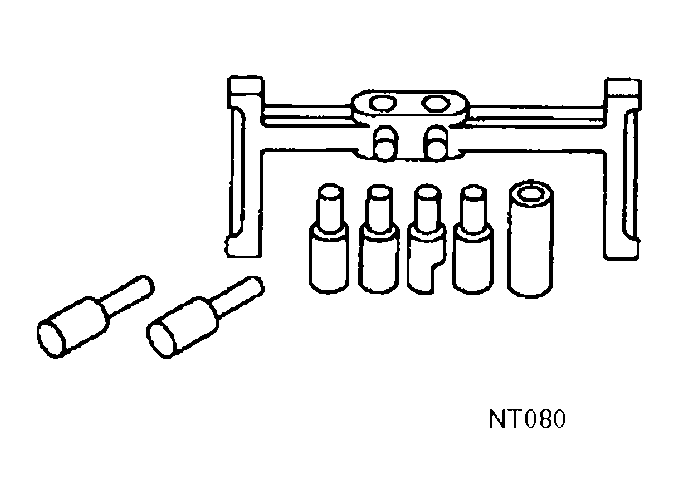

KV31102400 (J-34285 and J-34285-87) Clutch spring compressor	Courtesy of NISSAN MOTOR CO., U.S.A.	Removing and installing clutch return springs Installing low and reverse brake piston 320 mm (12.60 in) 174 mm (6.85 in)

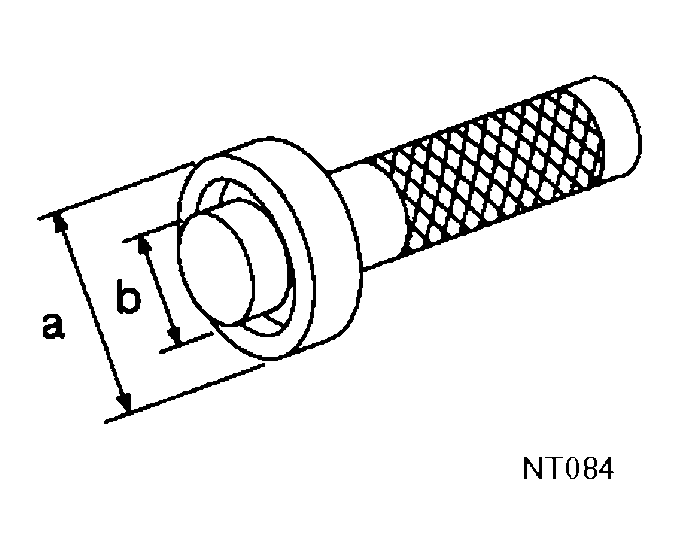

KV40100630 (J-26092) Drift	Courtesy of NISSAN MOTOR CO., U.S.A.	Installing reduction gear bearing inner race Installing idler gear bearing inner race 67.5 mm (2.657 in) dia . 44 mm (1.73 in) dia . 38.5 mm (1.516 in) dia .
ST30720000 (J-25405and J-34331) Bearing installer	Courtesy of NISSAN MOTOR CO., U.S.A.	Installing idler gear bearing outer race 77 mm (3.03 in) dia . 55.5 mm (2.185 in) dia .
ST35321000 (-) Drift	Courtesy of NISSAN MOTOR CO., U.S.A.	Installing output shaft bearing 49 mm (1.93 in) dia . 41 mm (1.61 in) dia .

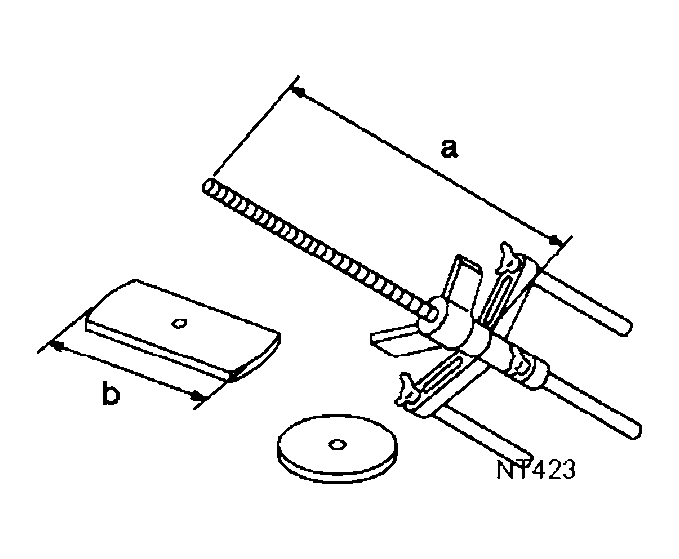

- (J-34291-A) Shim setting gauge set	Courtesy of NISSAN MOTOR CO., U.S.A.	Selecting oil pump cover bearing race and oil pump thrust washer Selecting side gear thrust washer

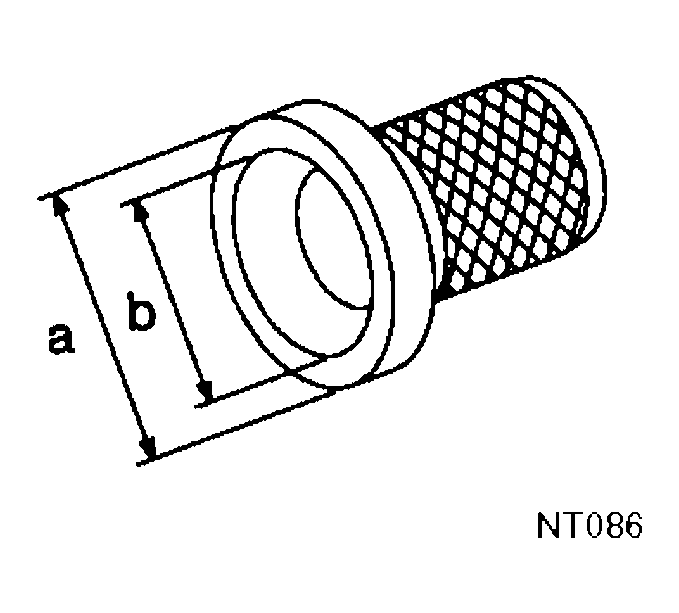

ST33230000 (J25805-01) Drift	Courtesy of NISSAN MOTOR CO., U.S.A.	Installing differential side bearing inner race (RH side) 51 mm (2.01 in) dia . 28.5 mm (1.122 in) dia .
(J-34290) Shim selecting tool set	Courtesy of NISSAN MOTOR CO., U.S.A.	Selecting differential side bearing adjusting shim

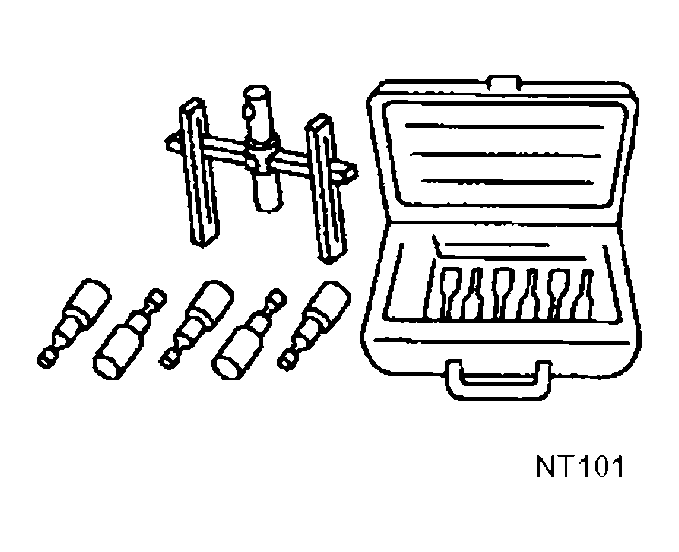

ST3306S001 (J-22888-D) Differential side bearing puller set 1 ST33051001 (J-22888-D) Puller 2 ST33061000 (J-8107-2) Adapter	Courtesy of NISSAN MOTOR CO., U.S.A.	Removing differential side bearing inner race 38 mm (1.50 in) dia . 28.5 mm (1.122 in) dia . 130 mm (5.12 in) 135 mm (5.31 in) 100 mm (3.94 in)

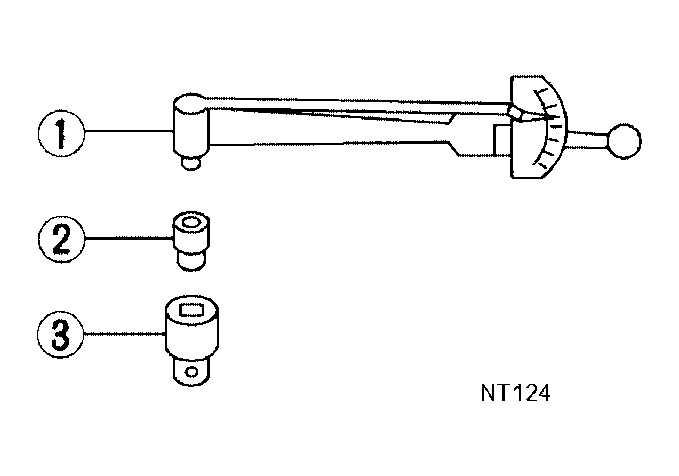

ST3127S000 (J-25765-A) Preload gauge 1 GG91030000 (J-25765-A) Torque wrench 2 HT62940000 (-) Socket adapter 3 HT62900000 (-) Socket adapter	Courtesy of NISSAN MOTOR CO., U.S.A.	Checking differential side bearing preload
ST35271000 (J-26091) Drift	Courtesy of NISSAN MOTOR CO., U.S.A.	Installing idler gear 72 mm (2.83 in) dia . 63 mm (2.48 in) dia .

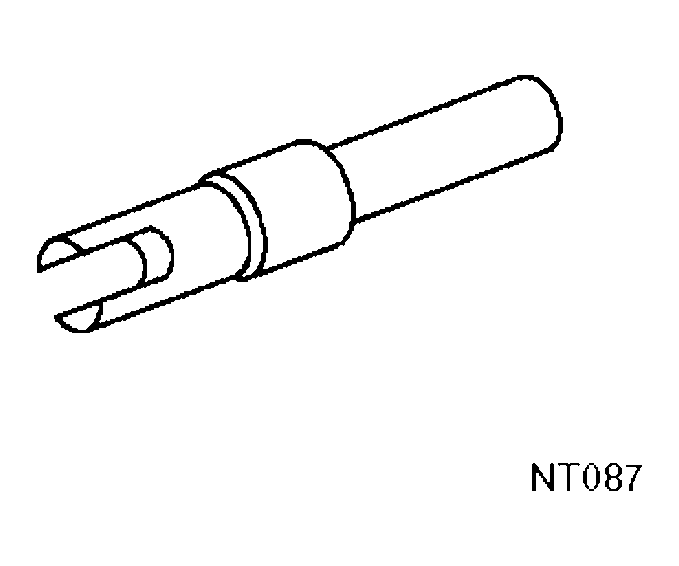

- (J-39713) Preload adapter	Courtesy of NISSAN MOTOR CO., U.S.A.	Selecting differential side bearing adjusting shim Checking differential side bearing preload

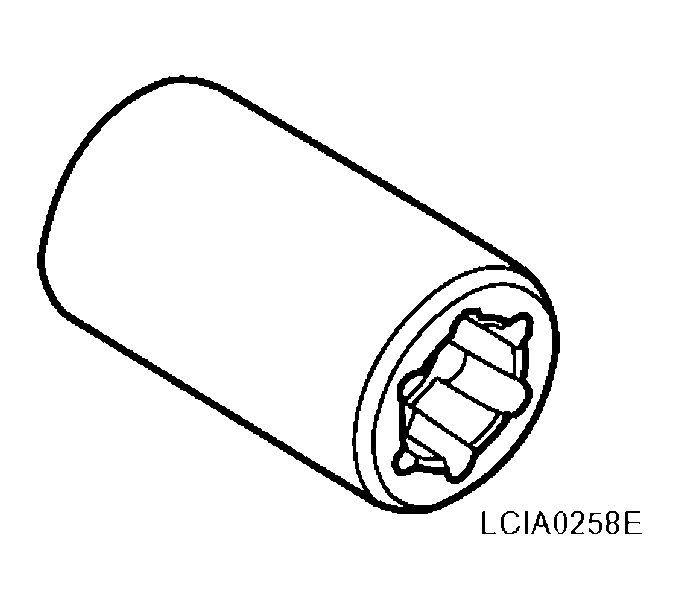

- J-45816 E20 TORX socket	Courtesy of NISSAN MOTOR CO., U.S.A.	Removing flex plate bolts on vehicles equipped with QR25DE engines
