Work Flow Chart

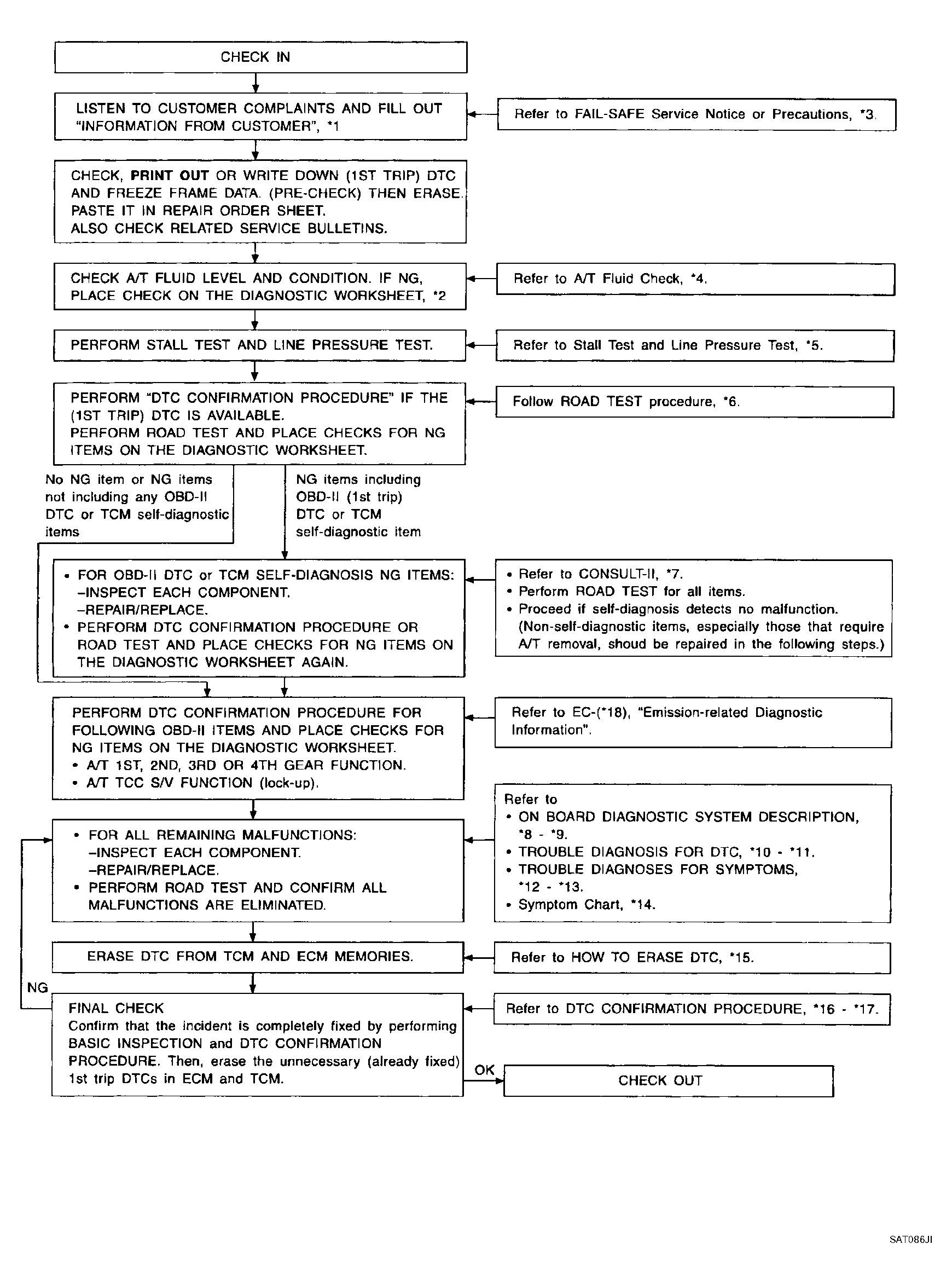

Fig 1: Work Flow Chart

G04193717

Courtesy of NISSAN MOTOR CO., U.S.A.

WORK FLOW CHART REFERENCES

*1.Information from Customer

*2. Diagnostic Worksheet

*4. A/T Fluid Check

*5. Stall Test , Line Pressure Test

*8. ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

*9. TROUBLE DIAGNOSIS - INTRODUCTION

*10. DTC P0705 PARK/NEUTRAL POSITION SWITCH

*11. TROUBLE DIAGNOSIS FOR SYMPTOMS

*12. TROUBLE DIAGNOSIS FOR SYMPTOMS

*13. A/T SHIFT LOCK SYSTEM

*14. Symptom Chart

*15. HOW TO ERASE DTC

*16. Diagnostic Trouble Code (DTC) Confirmation Procedure

*17. Diagnostic Trouble Code (DTC) Confirmation Procedure

*18. EMISSION-RELATED DIAGNOSTIC INFORMATION
