DTC P0181 FTT Sensor: Wiring Diagram

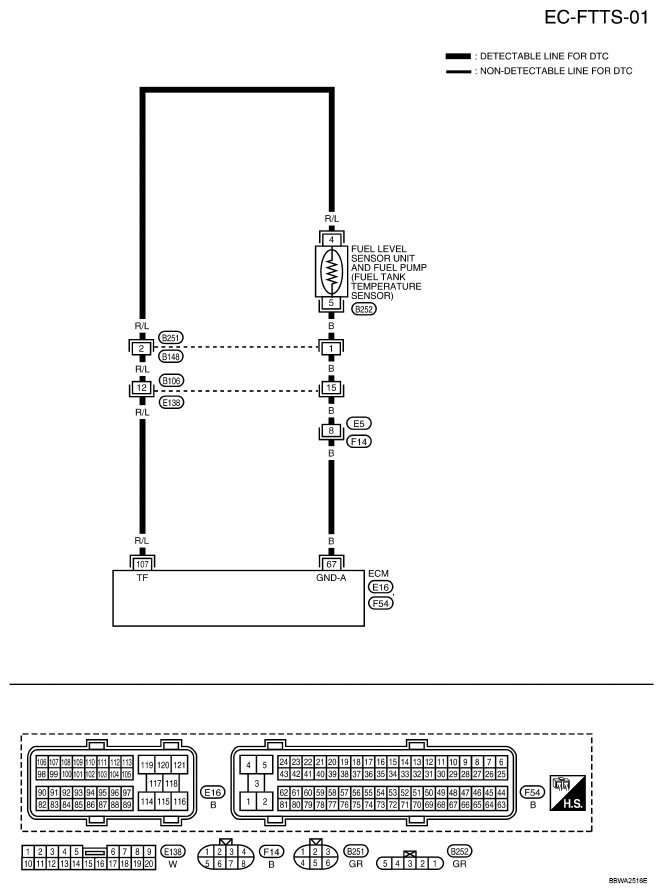

Fig 1: Wiring Diagram - EC-FTTS-01

G04905431

Courtesy of NISSAN NORTH AMERICA, INC.
