With Consult-II

  1. Turn ignition switch OFF, and wait at least 10 seconds, and then turn ON.
  2. Select "EGR SYSTEM P1402" of "EGR SYSTEM" in "DTC WORK SUPPORT" mode with CONSULT-II.
  3. Touch "START".
    Fig 1: CONSULT-II Display - DATA MONITOR
    G04905709Courtesy of NISSAN NORTH AMERICA, INC.
  4. Start engine and let it idle until "TESTING" on CONSULT-II screen is turned to "COMPLETED". (It will take 80 seconds or more.)

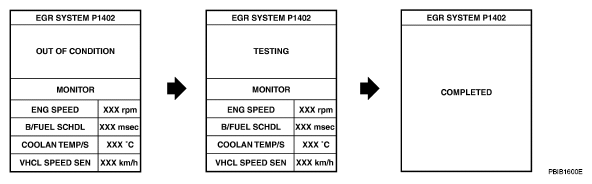

    Fig 2: CONSULT-II Display - TESTING
    G04905710Courtesy of NISSAN NORTH AMERICA, INC.

    If "TESTING" is not displayed after 5 minutes, turn ignition OFF and cool the engine coolant temperature to the range of -10 to 50°C (14 to 122°F). Retry from step   1 .

  5. Make sure that "OK" is displayed after touching "SELF-DIAG RESULTS". If "NG" is displayed, refer to "DIAGNOSTIC PROCEDURE ".
