Front Door Lock Assembly LH (Door Unlock Sensor) Check
- CHECK UNLOCK SENSOR POWER SUPPLY

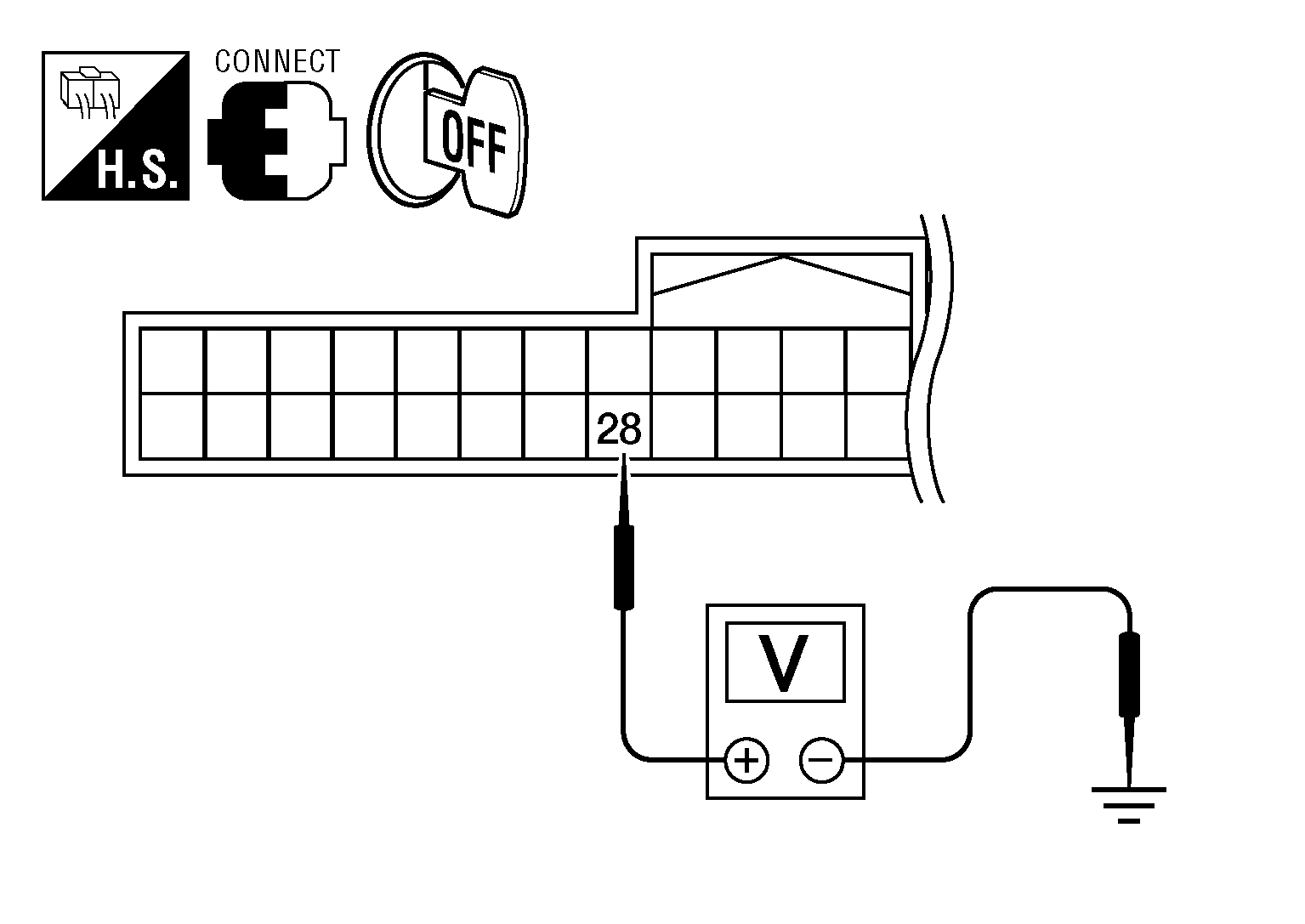

Check voltage between Intelligent Key unit connector terminal 28 and ground.
CONNECTOR TERMINAL VOLTAGE SPECIFICATIONConnector Terminals Condition Voltage (V) (Approx.) (+) (-) M42 28 Ground Driver side door lock is locked 5 Driver side door lock is unlocked 0 OK or NG
OK: front door lock assembly LH (door unlock sensor) is OK.
NG: GO TO 2.
- CHECK UNLOCK SENSOR CIRCUIT
- Turn ignition switch OFF.
- Disconnect Intelligent Key unit and front door lock assembly LH (door unlock sensor) connector.
- Check continuity between Intelligent Key unit harness connector M42 (A) terminal 28 and front door lock assembly LH (door unlock sensor) harness connector D9 (B) terminal 3.
28 - 3 : Continuity should exist.
- Check continuity between Intelligent Key unit harness connector M42 (A) terminal 28 and ground.
28 - Ground : Continuity should not exist.
OK or NG
OK: GO TO 3.
NG: Repair or replace harness between Intelligent Key unit and front door lock assembly LH (door unlock sensor).
- CHECK UNLOCK SENSOR GROUND CIRCUIT
Check continuity between front door lock assembly LH (door unlock sensor) harness connector D9 terminal 4 and ground.
4 - Ground : Continuity should exist.
OK or NG
OK: GO TO 4.
NG: Repair or replace harness.
- CHECK INTELLIGENT KEY UNIT OUTPUT SIGNAL
- Connect Intelligent Key unit harness connector.

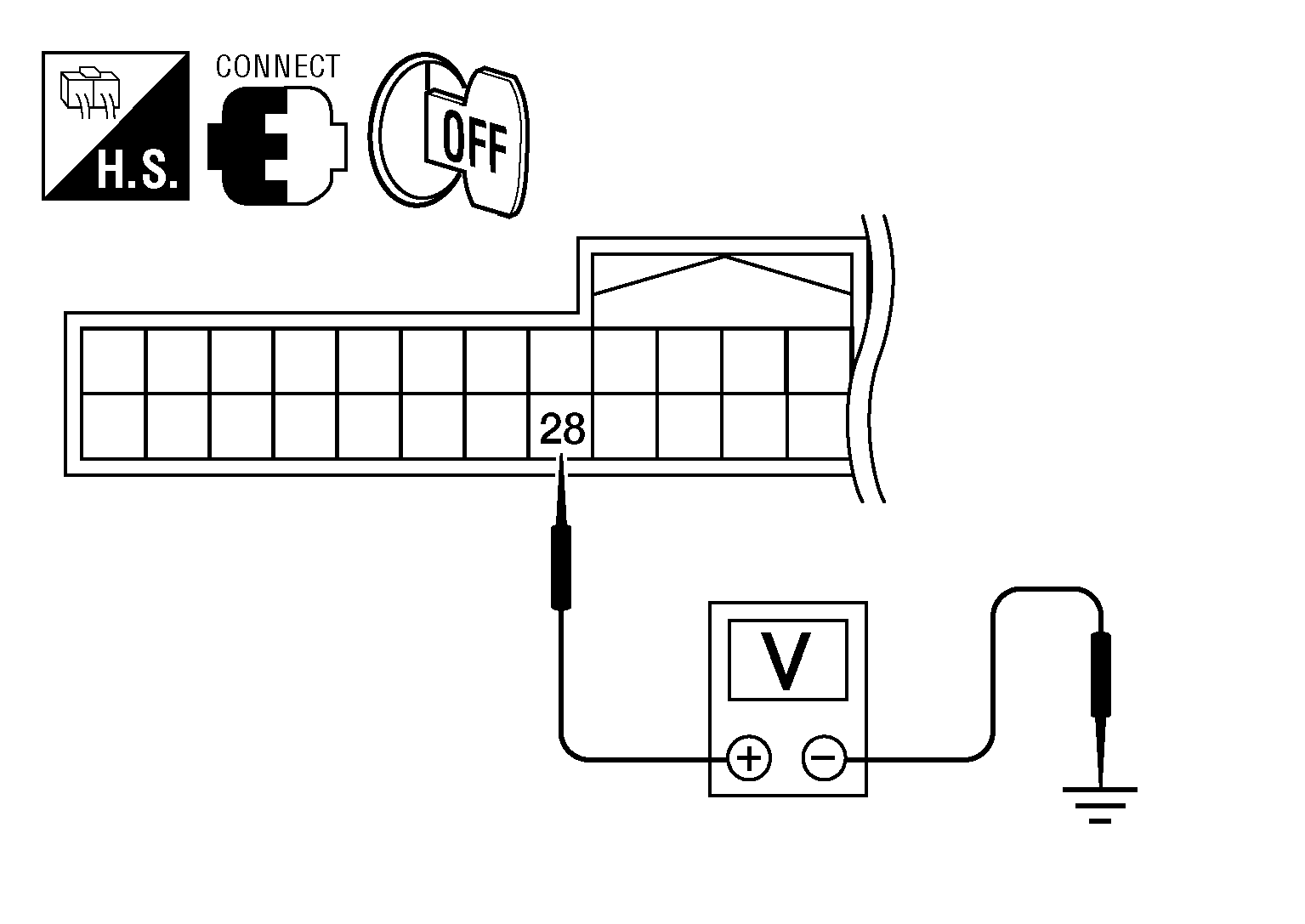

- Check voltage between Intelligent Key unit harness connector M42 terminal 28 and ground.
28 - Ground : Approx. 5V
OK or NG
OK: Replace front door lock assembly LH (door unlock sensor).
NG: Replace Intelligent Key unit. Refer to "REMOVAL AND INSTALLATION OF INTELLIGENT KEY UNIT ".
