Intelligent Key System: Schematic

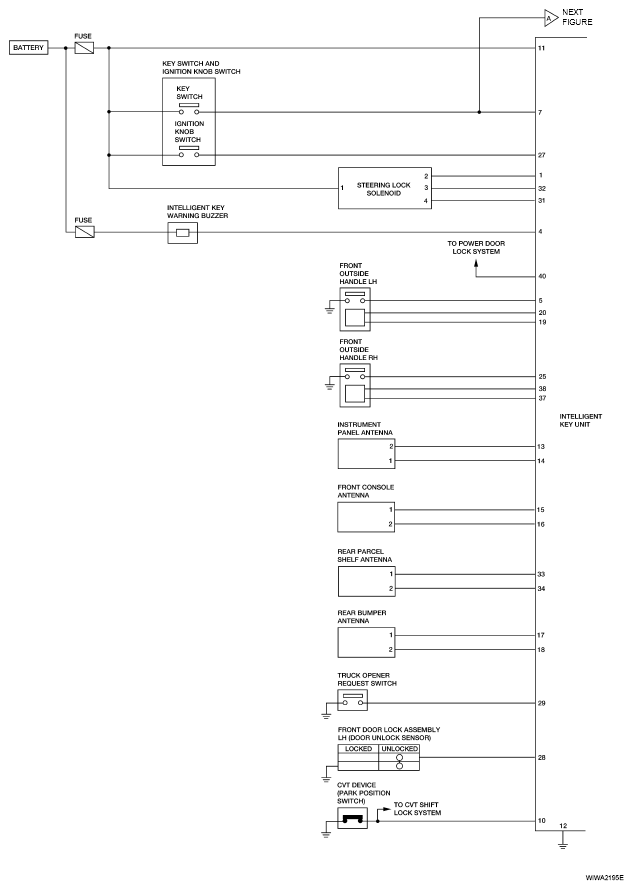

Fig 1: Intelligent Key System - Schematic Diagram (1 Of 2)
G04927623

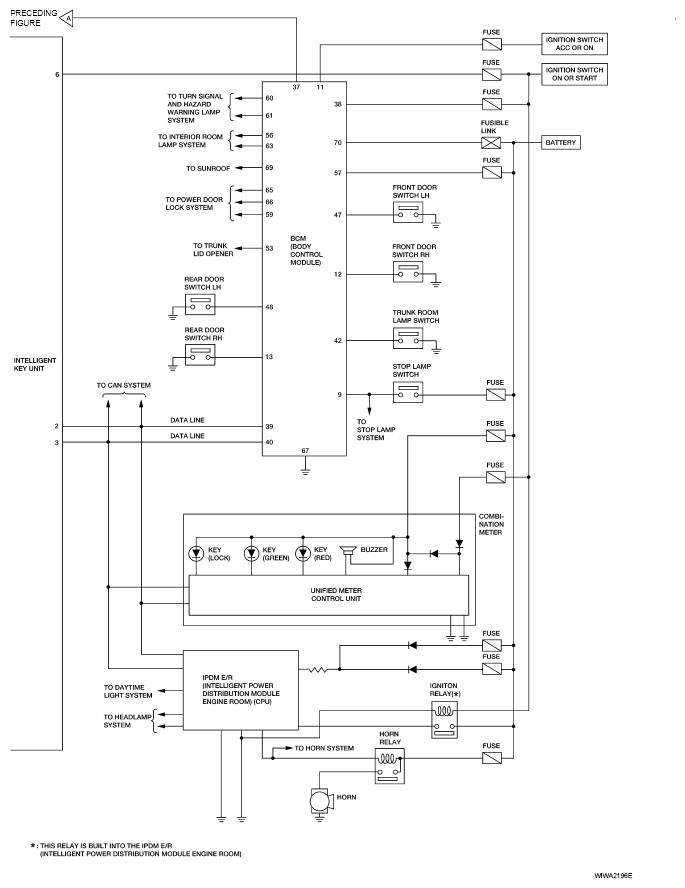

Fig 2: Intelligent Key System - Schematic Diagram (2 Of 2)
G04927624
