Work Flow

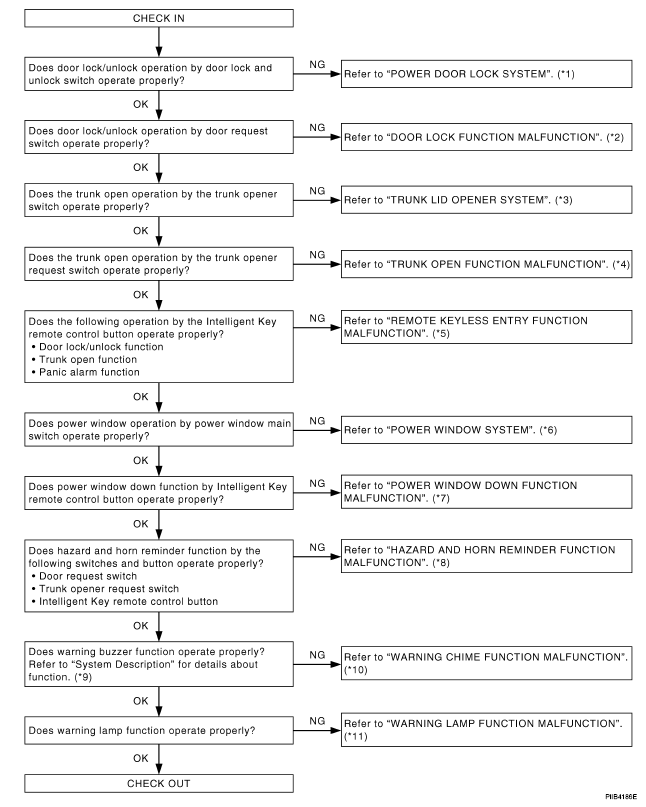

Fig 1: Trouble Diagnosis Flow Chart (2 Of 2)

G04927644

TROUBLE DIAGNOSIS FLOW CHART REFERENCES (2 OF 2)

*1. POWER DOOR LOCK SYSTEM

*2. DOOR LOCK/UNLOCK FUNCTION MALFUNCTION

*3. TRUNK LID OPENER

*4. TRUNK OPEN FUNCTION MALFUNCTION

*5. REMOTE KEYLESS ENTRY FUNCTION MALFUNCTION

*6. POWER WINDOW SYSTEM

*7. REMOTE KEYLESS ENTRY FUNCTION MALFUNCTION

*8. TRUNK OPEN FUNCTION MALFUNCTION

*9. LIST OF OPERATION RELATED PARTS

*10. WARNING CHIME FUNCTION MALFUNCTION

*11. WARNING LAMP FUNCTION MALFUNCTION
