Body, Lock & Security System
>>
Power Door Lock System
>>
Schematic
>>
With Intelligent Key
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
With Intelligent Key

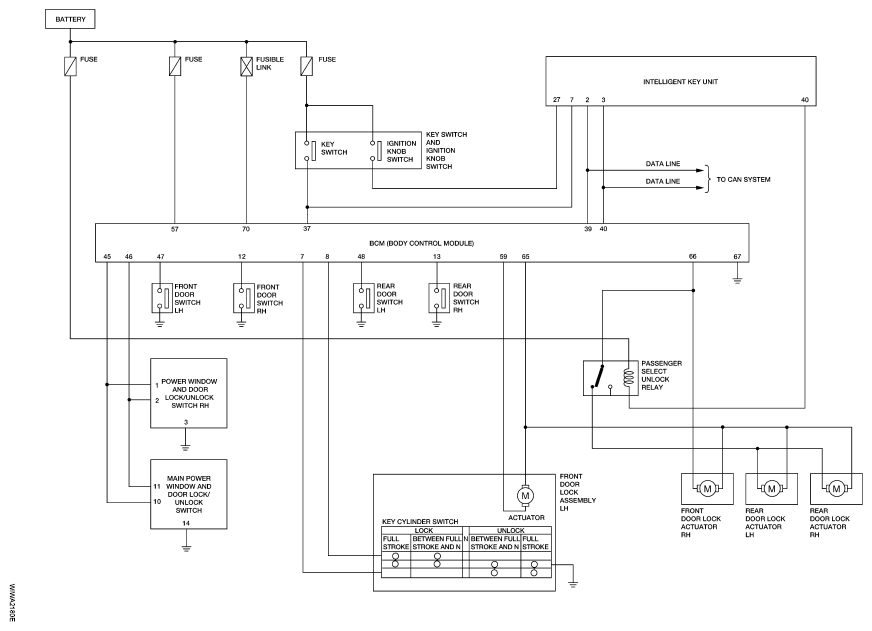

Fig 1: Schematic Diagram (With Intelligent Key)
