Removal and Installation: Notes

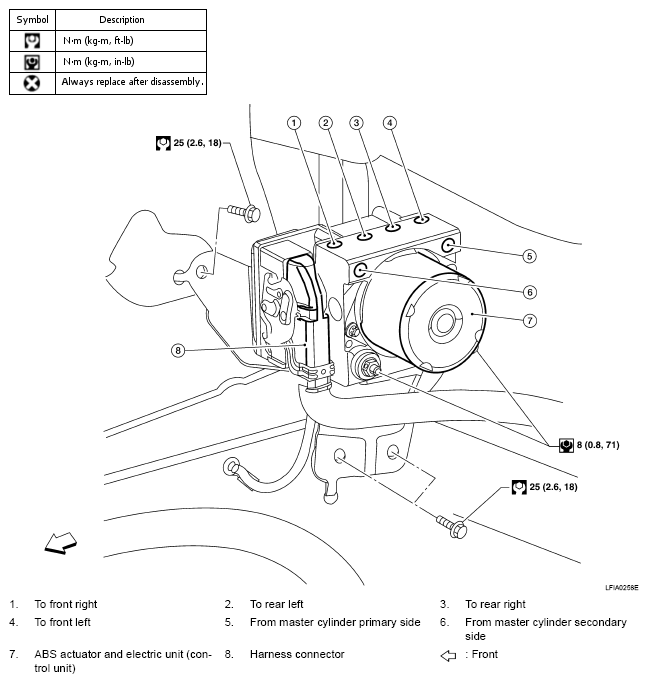

Fig 1: Actuator And Electric Unit With Torque Specifications

CAUTION:

Before servicing, disconnect battery cables.
To remove brake tube, use flare nut wrench to prevent flare nuts and brake tube from being damaged. To install, use flare nut torque wrench, tighten flare nut to the specified torque. Refer to "HYDRAULIC CIRCUIT ".
Do not apply excessive impact to ABS actuator and electric unit (control unit), such as dropping it.
Do not remove and install actuator by holding harness.
After work is completed, bleed air from brake tube and hose. Refer to "BLEEDING BRAKE SYSTEM ".
