Dynamic Damper
WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
- Use a new damper band when reinstalling.

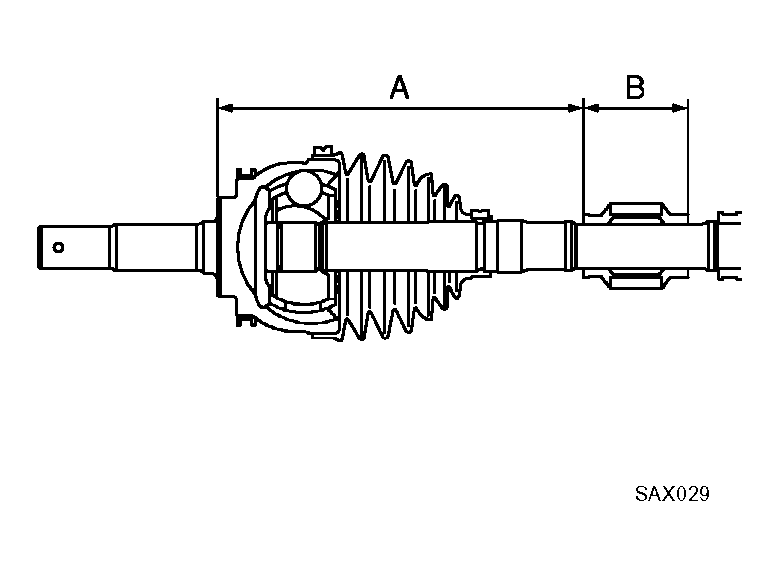

- Install dynamic damper from stationary-joint side while holding it securely:
MODEL SPECIFICATION
| Unit: mm (in) | ||
|---|---|---|
| Applied model | QG18DE | |
| LH | RH | |
| "A" | 175 - 185 (6.89 - 7.28) | 420 - 430 (16.54 - 16.93) |
| "B" | 70 (2.76) | 64 (2.52) |
| QR25DE | ||
| "A" | 173 - 179 (6.81 - 7.05) | 200 - 206 (7.87 - 8.11) |
| "B" | 50 (1.97) | 68 (2.68) |
