Special Service Tools
WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
SPECIAL SERVICE TOOLS CHART
| Tool number (Kent-Moore No.) Tool name |
Description | |
|---|---|---|

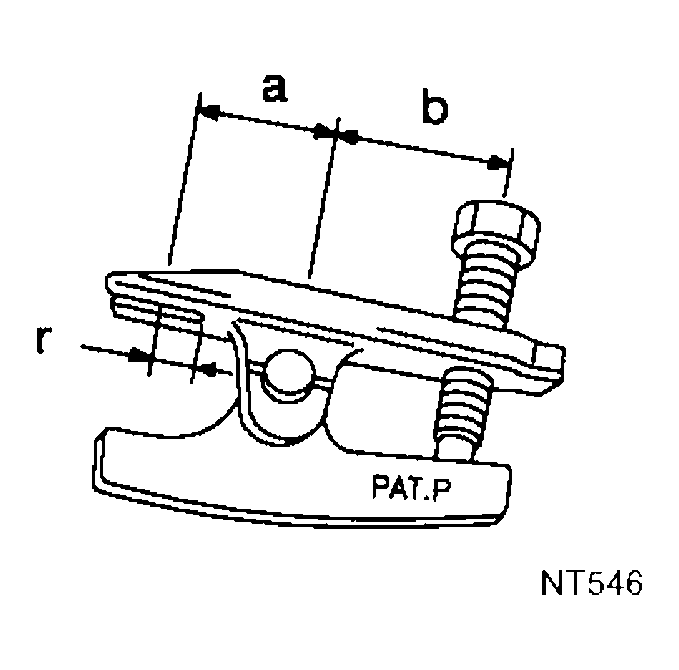

| HT72520000 (J25730-B) Ball joint remover |
Removing tie-rod outer end and lower ball joint a: 33 mm (1.30 in) b: 50 mm (1.97 in) r: R11.5 mm (0.453 in) |
|

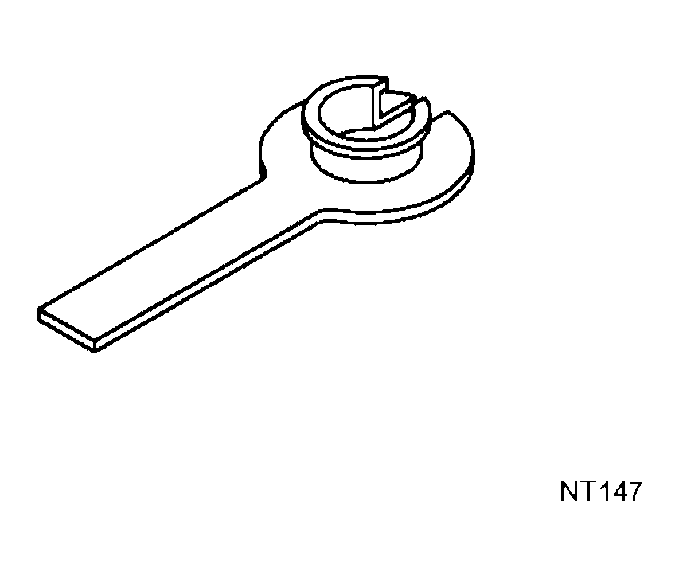

| KV38106800 (J34297-1) Differential side oil seal protector |
Installing drive shaft |
