Drive Shaft
WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
DRIVE SHAFT SERVICE DATA AND SPECIFICATIONS
| Applied model | QG18DE | QR25DE | ||
|---|---|---|---|---|
| Joint type | Transaxle side | TS79C | D90+B, D90, D86+B and T86 | |
| Wheel side | ZF90 | B90 and B86 | ||
| Grease | Quality | Genuine NISSAN grease or equivalent | ||
| Capacity g (oz) | Transaxle side | TS79C 154 - 164 (5.43 - 5.78) | D90+B and D90 145 - 165 (5.11 - -5.82) | |
| D86+B 135 - 155 (4.76 - 5.47) | ||||
| T86 140 - 160 (4.94 - 5.64) | ||||
| Wheel side | ZF90 122 - 126 (4.30 - 4.44) | B90 120 - 140 (4.23 - 4.94) | ||
| B86 115- - 135 (4.06 - 4.76) | ||||

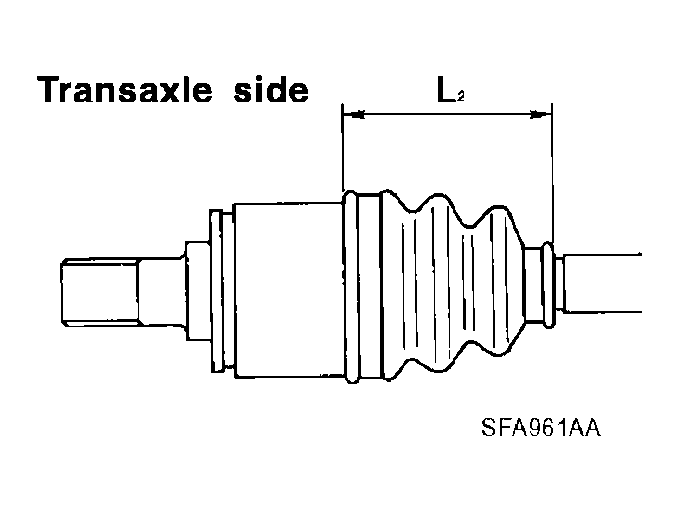

| Boot length mm (in) | Transaxle side "L2" | TS79C 102.5 (4.035) | D90+B and D90 98 (3.86) | |
| D86+B 98 (3.86) | ||||
| T86 98.5 (3.88) | ||||

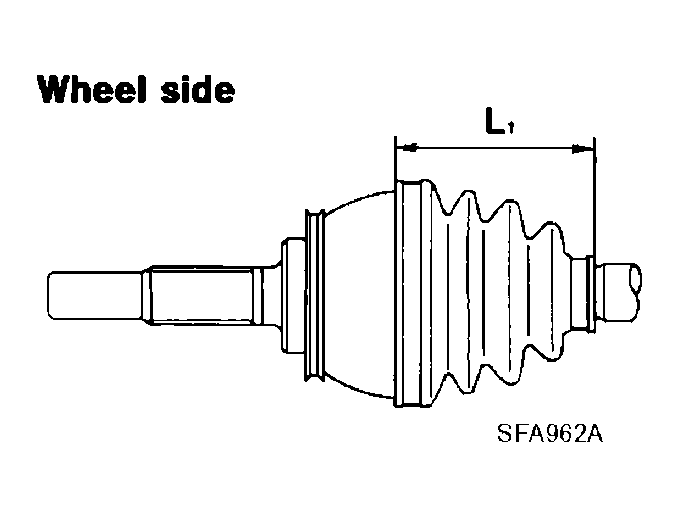

| Wheel side "L1" | ZF90 97 (3.82) | B90 115.7 (4.56) | ||
| B86 124.2 (4.89) | ||||
