Wheel Hub And Knuckle: Removal

WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before removing the front axle assembly, disconnect the wheel sensor from the assembly. Then move it away from the front axle assembly area.

Failure to do so may result in damage to the sensor wires and the wheel sensor becoming inoperative.

Remove cotter pin and wheel bearing lock nut.

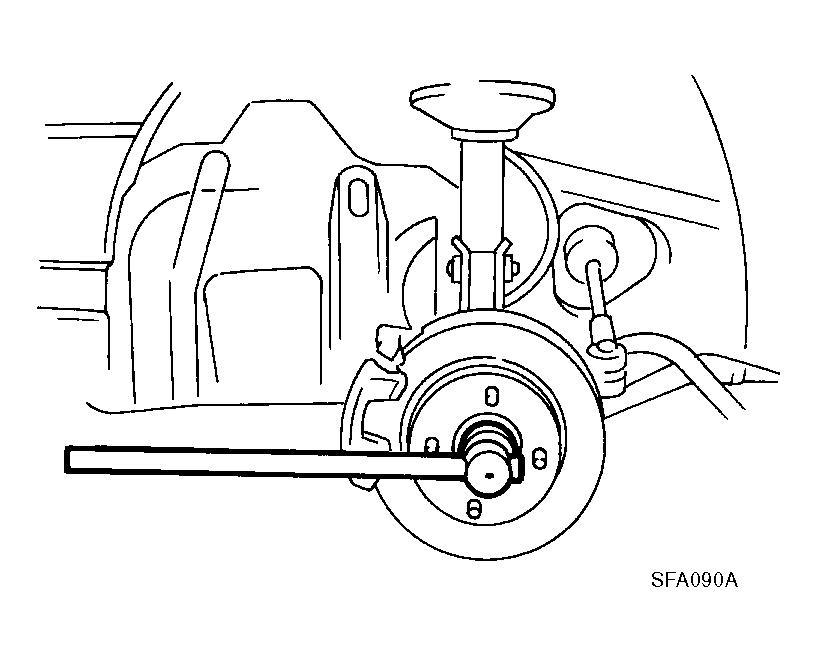

Fig 1: Removing Cotter Pin And Wheel Bearing Lock Nut
Courtesy of NISSAN MOTOR CO., U.S.A.
Separate tie-rod from knuckle with Tool.
- Install stud nut on stud bolt to prevent damage to stud bolt.

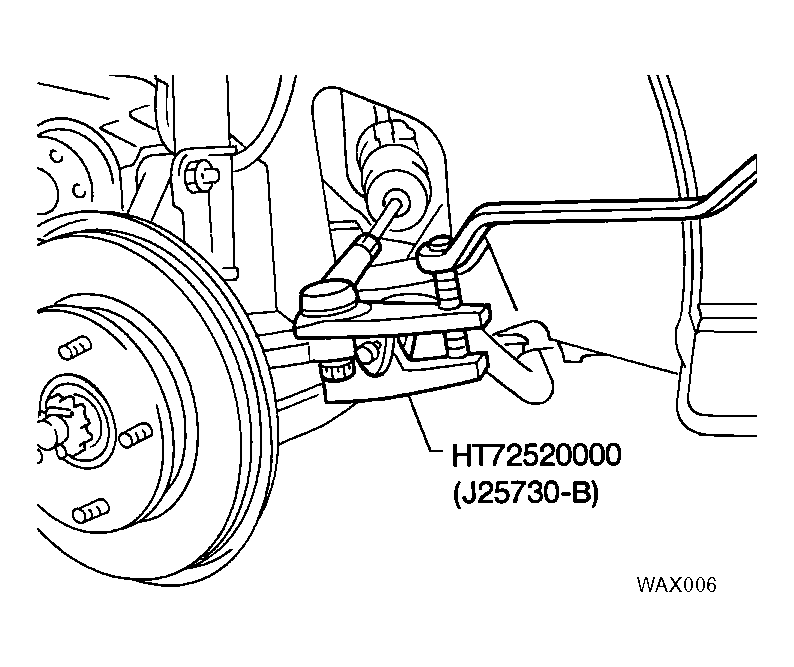

Fig 2: Separating Tie-Rod From Knuckle With Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove brake caliper assembly, torque member and rotor.
- Brake hose need not be disconnected from brake caliper. In this case, suspend caliper assembly with wire so as not to stretch brake hose. Be careful not to depress brake pedal, or piston will pop out.
  Make sure brake hose is not twisted.

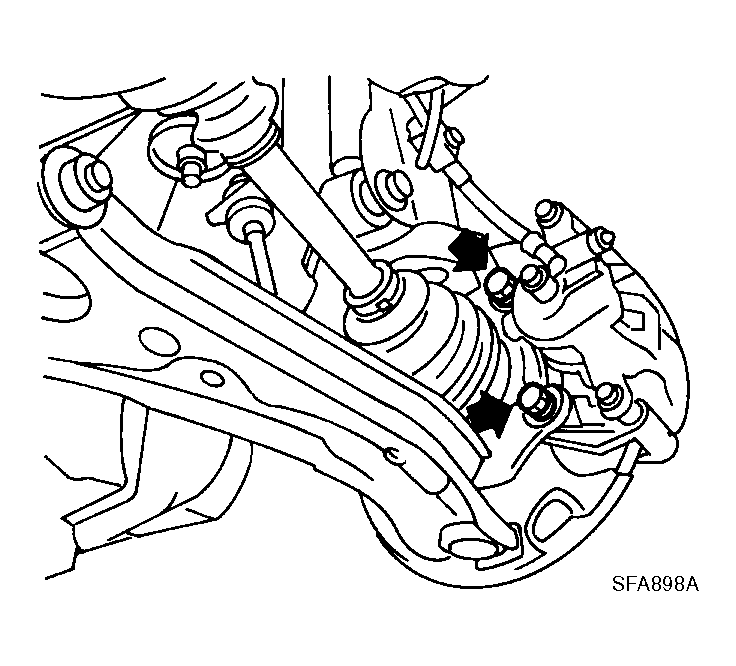

Fig 3: Removing Brake Caliper Assembly, Torque Member And Rotor
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove strut lower mounting nuts and bolts.

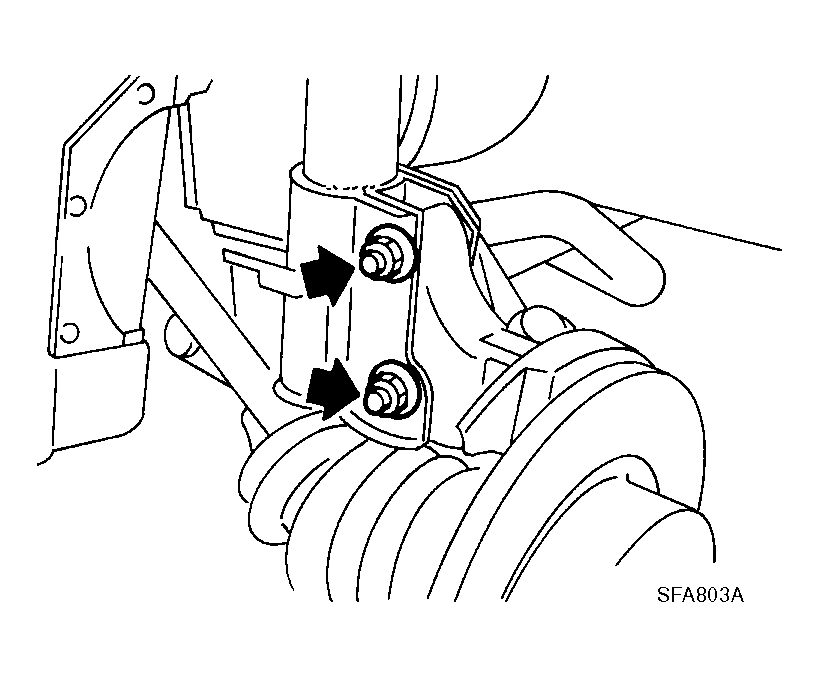

Fig 4: Removing Strut Lower Mounting Nuts And Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Separate drive shaft from knuckle by lightly tapping it. If it is hard to remove, use a puller.
- Cover boots with shop towel so as not to damage them when removing drive shaft.
Fig 5: Disconnecting Drive Shaft From Knuckle
Courtesy of NISSAN MOTOR CO., U.S.A.
Loosen lower ball joint nut.
Remove knuckle from lower ball joint stud with Tool.

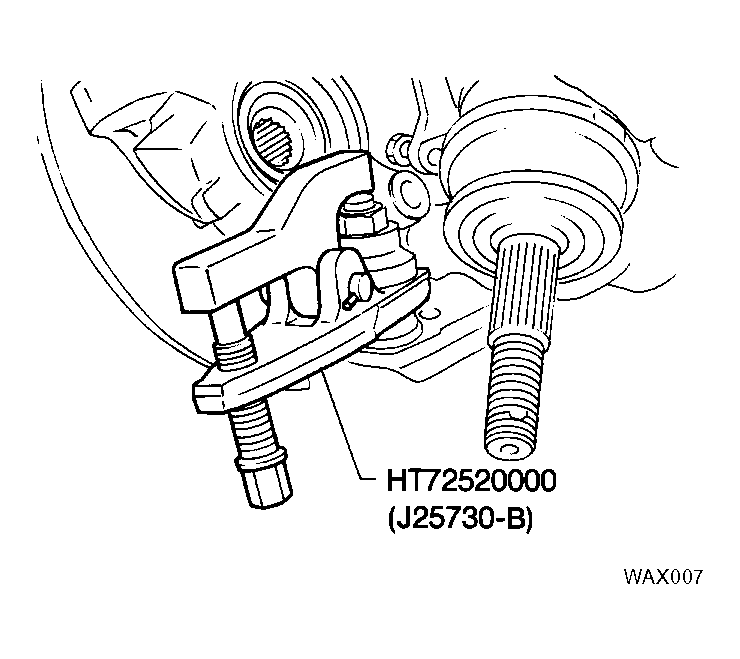

Fig 6: Removing Knuckle From Lower Ball Joint Stud With Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
