How To Use Check Sheet Table: Notes

WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

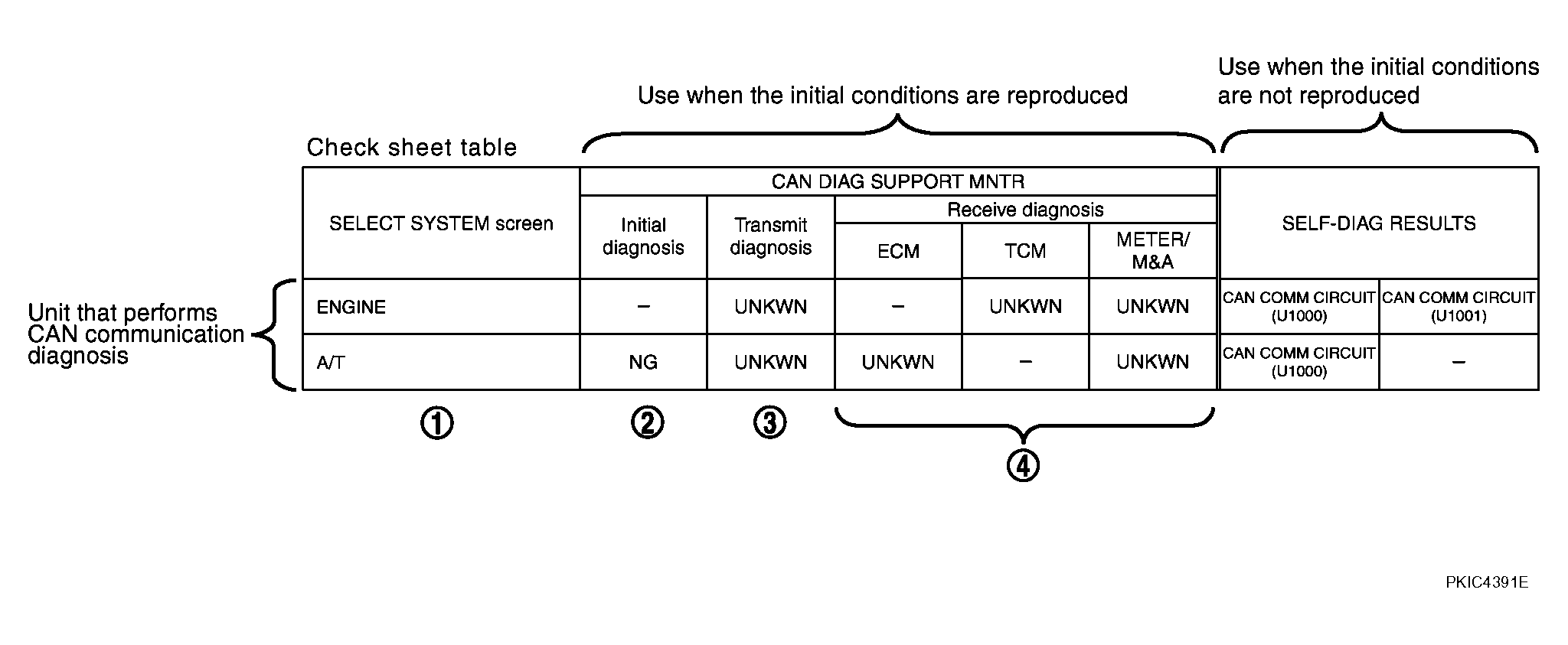

Fig 1: Identifying Use Of Check Sheet Table

Courtesy of NISSAN MOTOR CO., U.S.A.

Unit names displayed on CONSULT-II
"NG": Display "NG" when malfunction is detected in the initial diagnosis of the diagnosed unit. Replace the unit if "NG" is displayed.
"-": Column not used (Initial diagnosis is not performed.)
"UNKWN": Display "UNKWN" when the diagnosed unit does not transmit the data normally. Put a check mark to it if "UNKWN" is displayed on CONSULT-II.
"UNKWN": Display "UNKWN" when the diagnosed unit does not receive the data normally. Put a check mark to it if "UNKWN" is displayed on CONSULT-II.
"-": Column not used (It is not necessary for CAN communication trouble diagnosis.)

NOTE: CAN communication diagnosis checks if CAN communication works normally. (Contents of data are not diagnosed.)

When the initial conditions are reproduced, refer to "EXAMPLE OF FILLING IN CHECK SHEET WHEN INITIAL CONDITIONS ARE REPRODUCED ".
When the initial conditions are not reproduced, refer to "EXAMPLE OF FILLING IN CHECK SHEET WHEN INITIAL CONDITIONS ARE NOT REPRODUCED ".
