Combination Meter Circuit Inspection
WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK CONNECTOR
- Turn ignition switch OFF.
- Disconnect battery cable from the negative terminal.
- Check following terminals and connectors for damage, bend and loose connection (meter side and harness side).
- Combination meter connector
- Harness connector F26
- Harness connector M58
OK or NG
OK: GO TO 2.
NG: Repair terminal or connector.
- CHECK HARNESS FOR OPEN CIRCUIT

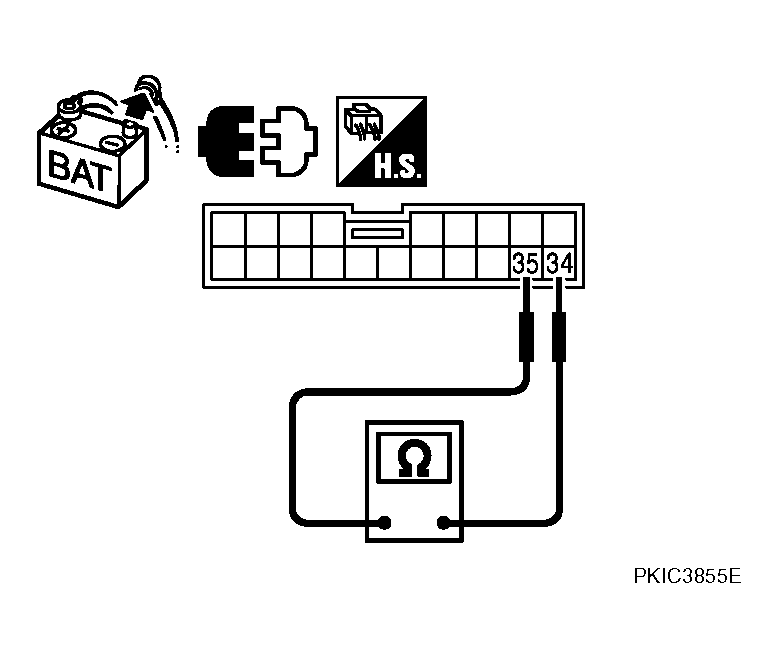

Without tachometer
- Disconnect combination meter connector.
- Check the resistance between combination meter harness connector terminals.
COMBINATION METER CONNECTOR TERMINAL RESISTANCECombination meter connector Terminal Resistance (Approx.) M30 34 35 108 - 132Ω Courtesy of NISSAN MOTOR CO., U.S.A.

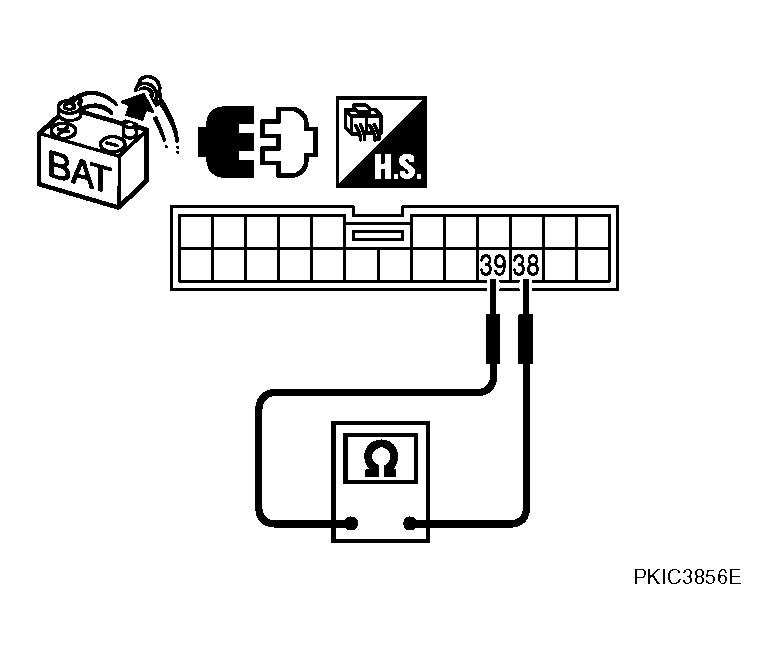

With tachometer (QG18DE)
- Disconnect combination meter connector.
- Check the resistance between combination meter harness connector terminals.
COMBINATION METER CONNECTOR TERMINAL RESISTANCECombination meter connector Terminal Resistance (Approx.) M30 38 39 108 - 132Ω Fig 2: Checking Resistance Between Combination Meter Harness Connector Terminals With Tachometer (QG18DE)Courtesy of NISSAN MOTOR CO., U.S.A.

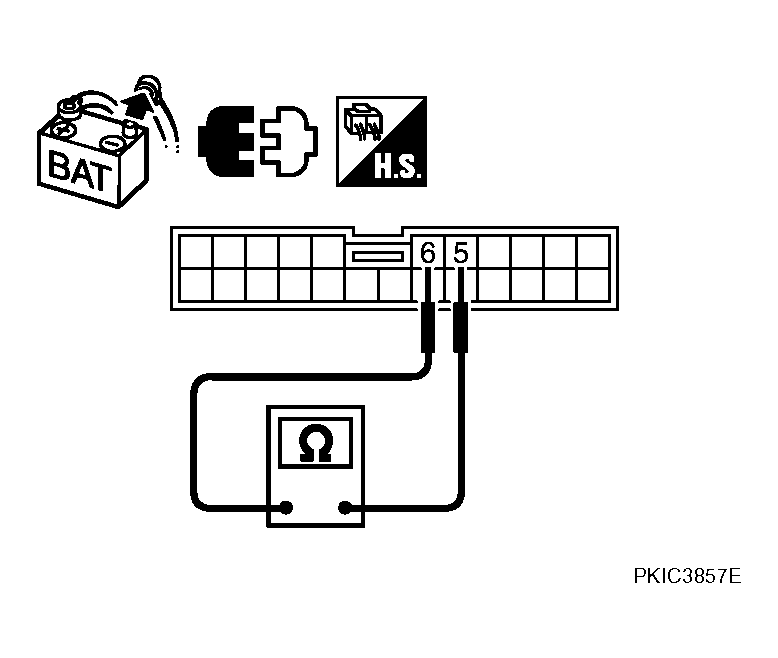

With tachometer (QR25DE)
- Disconnect combination meter connector.
- Check the resistance between combination meter harness connector terminals.
COMBINATION METER CONNECTOR TERMINAL RESISTANCECombination meter connector Terminal Resistance (Approx.) M29 6 5 108 - 132Ω OK or NG
OK: Replace combination meter.
NG: Repair harness between combination meter and TCM.
